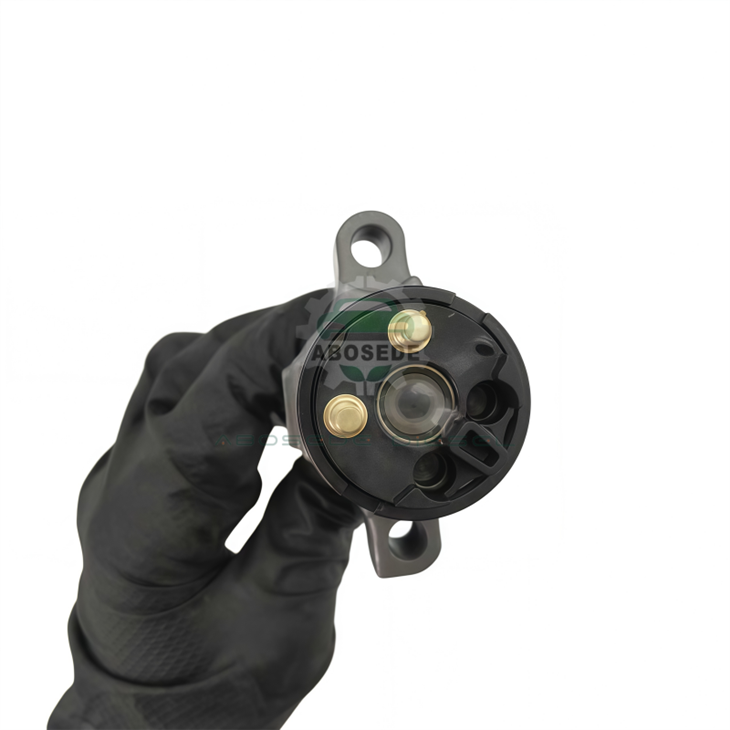

2872621 XPI Fuel Injector | Heavy-Duty High Flow Diesel Injector for Construction & Truck Engines

For bulk distributors, fleet repair workshops and heavy machinery maintenance teams in Southeast Asia and Africa, diesel injector stability and durability are the core factors that determine operational efficiency and after-sales cost control. The 2872621 XPI fuel injector is a professional high-pressure fuel injection component customized for large-displacement heavy-duty diesel engines, solving common failure pain points of ordinary injectors such as unstable fuel supply, poor combustion adaptation and short service life under harsh construction site and long-distance transportation working conditions. Relying on exclusive XPI (Extra High Pressure Injection) common rail technology, this injector achieves stable high-flow fuel output, fully adapting to complex fuel quality and high-load continuous operation scenarios in local engineering and logistics industries.



🔩 Core Structural Advantages & Working Principle



The overall structure of the 2872621 fuel injector is optimized for heavy-load and high-vibration working environments, abandoning the lightweight design of ordinary civilian injectors, and focusing on structural stability and pressure resistance. The injector body adopts high-tensile steel for integral forging, which can effectively resist structural deformation and damage under extreme rail pressure and long-term thermal cycling, adapting to frequent start-stop and variable load operation of construction machinery and heavy trucks.

Equipped with a high-speed precision solenoid valve assembly, the component can quickly convert ECU electronic control signals into mechanical fuel injection actions, greatly shorten the response delay of fuel delivery, and realize accurate and rapid injection actions in the full engine RPM range. The internal high-pressure oil passage is structurally optimized to reduce fuel turbulence during delivery, cooperate with the multi-hole micro-sac nozzle design, form uniform and fine fuel droplets, and greatly improve the full combustion efficiency of diesel in large-bore cylinders. Even with non-standard fuel quality commonly used in local areas, it can still maintain stable combustion status, reduce carbon deposition and engine jitter problems.





Understanding the exact capabilities of the 2872621 is vital for correct parts matching and system tuning. Below are the key performance indicators for this unit:



Specification Category	Technical Detail
Part Number	2872621
System Type	XPI (Extra High Pressure Injection) Common Rail
Actuation Method	High-Speed Solenoid Valve
Operating Pressure	Compatible with Rail Pressures up to 2,200 Bar
Flow Characteristics	High-Flow Rate optimized for Heavy-Duty Cylinders
Nozzle Configuration	Multi-hole Micro-Sac Design
Primary Application	Heavy-Duty Truck & Industrial Diesel Engines





The 2872621 XPI fuel injector is perfectly compatible with Cummins mainstream heavy-duty engine platforms, including ISX, Z13 and Z14 series models, which are widely equipped on local heavy trucks, excavators, loaders and other engineering transportation equipment in Southeast Asia and Africa. Different from universal aftermarket injectors with unstable parameters, this original-matched injector has strict production tolerances, strong adaptability to engine system calibration, and no need for secondary modification during installation.

For maintenance wholesalers and repair shops, the 2872621 injector has outstanding batch use advantages. It has a verified long-life operating record, with a stable service life of 500,000 miles or more under standardized maintenance conditions. It can resist vibration, high temperature and fuel impurity erosion in harsh working conditions, effectively reduce the failure rate of post-repair equipment, avoid repeated maintenance and warranty compensation losses, and improve customer reputation and service competitiveness of repair enterprises.





The XPI common rail system adopted by the 2872621 fuel injector has ultra-high precision internal matching clearances, so daily standardized maintenance is the key to maintaining long-term stable operation of the equipment, especially suitable for local after-sales maintenance teams to standardize operation:

First, strictly control fuel filtration quality. It is necessary to regularly replace high-efficiency fuel filters that can intercept particles above 5 microns, and drain the water separator in time to prevent water and particulate impurities from entering the injector interior and scratching precision matching parts and valve seats, which will lead to internal oil leakage and pressure loss.

Second, avoid blind disassembly and assembly. Without professional factory calibration equipment and technical support, random disassembly of the injector body and replacement of internal accessories will destroy the original calibration parameters, resulting in reduced injection accuracy and unqualified combustion effect. For minor performance degradation caused by carbon deposition, professional ultrasonic cleaning and flow testing can be used to restore working performance, which is more reliable than blind replacement of accessories.



Q1: What are the core differences between 2872621 XPI injector and ordinary modified injectors in the market?

A1: The 2872621 is a special supporting component for XPI high-pressure common rail system, with fixed internal flow mapping, installation positioning size and electronic connector parameters. Ordinary modified injectors have unstandardized parameter calibration, which cannot match the original engine ECU data, and are prone to insufficient power, excessive fuel consumption and engine fault code alarms after installation. This model supports original vehicle system matching without program modification, with higher stability and safety.

Q2: What failure symptoms will occur after the precision parts of 2872621 injector are damaged by inferior fuel?

A2: Inferior fuel contains a large number of abrasive particles and moisture, which will wear the internal precision matching parts of the injector. The typical failure manifestations include insufficient rail pressure build-up, increased fuel return volume, uneven cylinder combustion, engine jitter during acceleration, black smoke emission, and inability to complete DPF regeneration. Most damaged precision parts cannot be repaired and need to be replaced as a whole.

Q3: Is batch single-cylinder replacement of 2872621 injectors applicable to high-mileage engines?

A3: For engines with high mileage exceeding 400,000 miles, it is not recommended to replace only a single injector in batches. The aging degree of other cylinder injectors is inconsistent with the new 2872621 injector, which will cause unbalanced fuel injection volume and combustion efficiency of each cylinder, resulting in unstable engine operation. It is necessary to test all injectors first, replace the faulty parts in a targeted manner, and complete IMA code programming after replacement to ensure overall engine balance.

Q4: How does 2872621 injector optimize the post-maintenance fuel consumption and power performance of engineering machinery?

A4: The product realizes precise quantitative fuel injection and multi-stage timing control. Accurate fuel atomization improves combustion fullness, reduces invalid fuel waste, and effectively reduces the overall fuel consumption of the equipment. At the same time, stable high-pressure fuel supply ensures sufficient power output under heavy load conditions, avoids power attenuation of construction machinery during continuous operation, and improves construction efficiency.

Q5: What is the longest service life of 2872621 injector under standard maintenance in harsh environments?

A5: In line with ASTM standard diesel fuel and regular filter replacement maintenance cycle, the 2872621 injector can operate stably for 500,000 to 800,000 miles, and can basically match the service life of the supporting engine. Harsh environments such as high temperature, high humidity and dusty construction sites will not cause premature failure of the product, and the attenuation of injection performance is extremely low.
