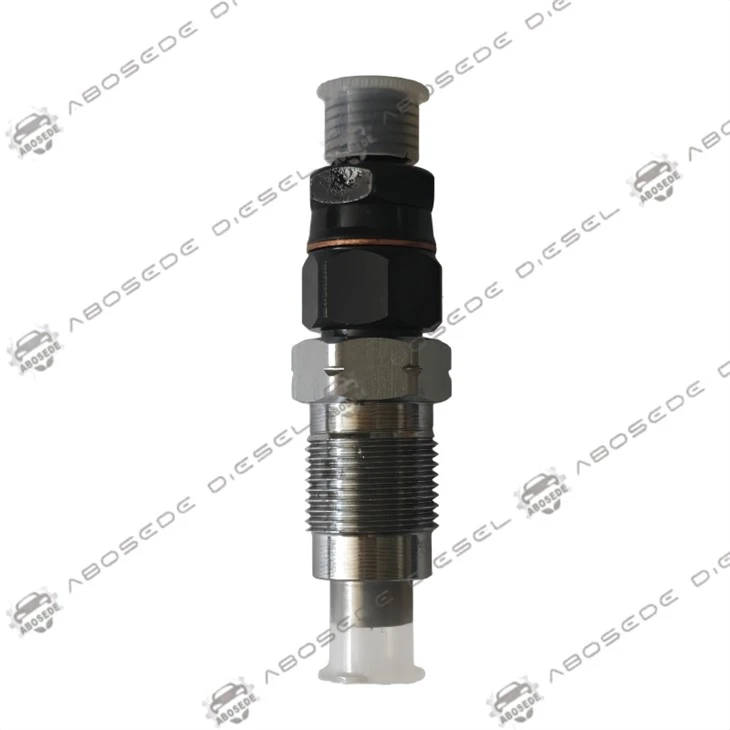

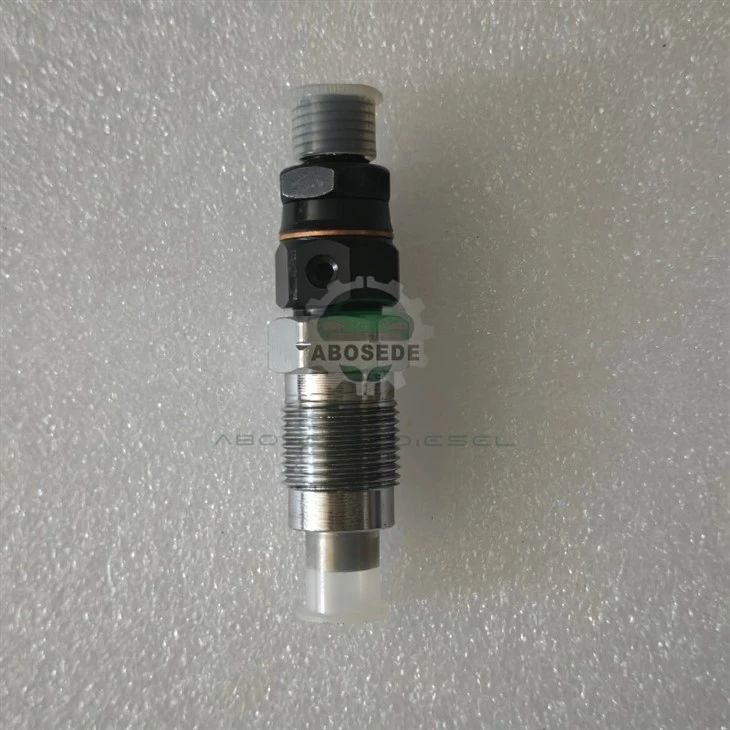

Caterpillar Nozzle Assy 32C6106000 | 32C61-06000 Diesel Injector

The Caterpillar Nozzle Assy 32C6106000, cross-referenced as 32C61-06000, is a precision-engineered diesel fuel injector designed to meet the rigorous demands of Mitsubishi industrial powerplants. This component serves as a critical interface within the common rail fuel injection system or mechanically governed fuel delivery setups, determining spray pattern, atomization quality, and volumetric efficiency. For repair facilities and parts distributors, this injector offers a direct-fit solution for restoring rated horsepower, reducing exhaust gas temperatures, and eliminating misfire conditions in high-cycle applications.

This injector operates as a complete assembly, integrating the nozzle, needle valve, and spring mechanism calibrated to factory flow specifications. The Caterpillar Nozzle Assy 32C6106000 is engineered to withstand extreme in-cylinder pressures exceeding 1,600 bar in common rail variants, ensuring consistent fuel metering across the entire RPM range. Precision-ground orifices deliver a finely atomized fuel mist, which is essential for complete combustion in direct-injection diesel engines. The unit features a robust solenoid valve design for rapid actuation, supporting multiple injection events per cycle to optimize combustion timing and reduce diesel knock. Compatibility extends to engines utilizing both mechanical inline pumps and electronically controlled high-pressure pumps. The injector's hardened metallurgy resists wear from low-lubricity fuels and contaminants, providing a service life aligned with original equipment standards. Replacement part numbers associated with this unit include 32C61-06000, 32C61-06010, and 093500-5480 for precise cross-referencing during inventory management.

The 32C6106000 fuel injector is specifically manufactured for a wide range of Mitsubishi industrial diesel engines, with primary fitment for the S4S, S6S, and S4Q2 engine families. These power units are commonly deployed in material handling equipment such as Mitsubishi forklifts, including models F18C and FD60-70. Additionally, this injector is compatible with Northern Lights generator sets like the L944D, M944T, and M30CW, making it a versatile stock-keeping unit for workshops servicing standby power and marine auxiliary systems. It supports both naturally aspirated and turbocharged configurations across these platforms. For workshops stocking parts for mixed fleets, this injector consolidates inventory requirements, covering everything from compact industrial engines to larger displacement power units used in agriculture and construction.

Proper installation of the Caterpillar Nozzle Assy 32C6106000 is paramount to prevent combustion gas leakage and scoring of the injector bore. The heat shield (washer) located at the nozzle tip must be replaced with a new unit every time the injector is removed or installed to maintain the seal and correct projection depth into the pre-combustion chamber or cylinder head. The clamping forces applied to the injector hold-down bolts are critical; the retainer nut should be torqued precisely to 20 Nm (15 ft-lb) to avoid distorting the injector body. Before installation, the injector bore must be thoroughly cleaned of carbon deposits using a specialized reaming tool to ensure the new injector seats correctly, as residual soot can alter the spray angle. The high-pressure fuel lines must be handled carefully-do not bend them-and the union nuts should be tightened to 25 Nm (18 ft-lb) to prevent micro-leaks that can cause fuel dilution of the engine oil. A clean fuel supply is non-negotiable; replacing the fuel filter during injector renewal is strongly advised to protect the new unit from abrasive particulate damage.

Q1: Can I replace just one faulty Caterpillar Nozzle Assy 32C6106000 injector, or must I replace all?
A: While technically possible to replace a single unit, we strongly recommend replacing the entire set. Differences in fuel output and atomization between new and aged injectors can lead to uneven cylinder loads and potential engine damage. A full set replacement ensures optimal and balanced performance.

Q2: Is the 32C61-06000 compatible with the Northern Lights M38CR2 generator?
A: Yes, the Caterpillar Nozzle Assy 32C6106000 is a direct replacement for the M30CW, M38CR2, and multiple other Northern Lights models, as well as Mitsubishi-powered forklifts like the FD60-70.

Q3: What is the most common cause of failure for this injector type?
A: Contamination is the primary culprit. Abrasive particles in the fuel cause wear on the needle valve and seat, leading to poor spray patterns and dribbling. Clogged return lines or degraded fuel can also impair the solenoid's response.

Q4: Why is replacing the heat shield so important during installation?
A: The heat shield is a one-time-use component. It provides the sealing surface between the injector nozzle and the cylinder head. Reusing an old shield will likely cause compression leaks, leading to engine overheating or burning of the injector tip.

Q5: Does this injector work with both electronic common-rail and mechanical diesel systems?
A: This specific injector is primarily designed for mechanical or early electronic unit injector systems found in Mitsubishi S4S/S6S engines. For high-pressure common-rail systems, the operating pressures and solenoid variants differ.
