CAT C15 Control Valve Gasket – Precision Orifice Sealing For HEUI Injector Fuel Delivery | 300+ PSI Rated



In the Caterpillar C15 HEUI (Hydraulically actuated Electronically controlled Unit Injector) fuel system, the control valve gasket is often dismissed as a simple static seal. In reality, it functions as a fixed hydraulic orifice restrictor – its internal diameter and compression height directly dictate the pilot oil bleed rate, which in turn modulates injection timing and fuel atomization pressure. Unlike dynamic components such as solenoids or plungers, this gasket establishes the baseline hydraulic resistance for the control valve assembly. A deviation of just 0.05mm in its thickness alters the actuation oil flow by approximately 6%, shifting the injection start point by 1.5° crankshaft angle-enough to trigger "cylinder contribution" faults or elevate exhaust gas temperatures beyond 700°C under load.

This offering is a direct-fit replacement for the C15 (and C16) MEUI injector control valve sub-assembly, engineered to restore the factory-specified clamp load and sealing interference. It addresses the chronic issue of "bleed-down" – a gradual loss of pilot pressure that causes rough idle and white smoke on cold starts. The gasket is manufactured from a high-density aramid-fiber composite with a nitrile binder, specifically chosen for its resistance to fuel dilution (up to 15% diesel contamination in engine oil) and its ability to maintain compression set at elevated clamp temperatures (up to 150°C).



This gasket is dimensionally validated for use with the following remanufactured and genuine injector part numbers commonly installed in C15 and C16 engines (serial prefixes 6NZ, 7CZ, 8PN, 9CK, 1MM, 2KS, 5KZ, and 3CS). The following table is extracted from the latest Caterpillar parts interchangeability guide:

Injector Part Number	Control Valve Gasket Reference	Application Notes
191-3003	10R-8501 / 10R-0956	Standard C15 ACERT (pre-DPF)
211-3022 / 211-3023	10R-8501 / 10R-8500	High-flow variants (marine/industrial)
211-3024 / 211-3025	10R-0955 / 10R-0956	Late-model 6NZ with ADEM IV
200-1117	10R-0957 / 10R-0958	Remanufactured EUI (aftermarket core)
235-1400 / 235-1401	10R-3263 / 10R-3264	High-altitude calibration ( > 3,000m )
253-0614 / 253-0615 / 253-0617	289-0753 / 10R-9236	3512C/C15 hybrid injector (special order)
272-0630 / 280-0574	20R-8047 / 20R-2284	C15 with integrated fuel temp sensor
239-4909 / 244-7716	10R-1000 / 10R-7229	Tier 2 emissions compliant
249-0709 / 254-4183	10R-8989 / 10R-3263	Industrial gen-set (constant 1800 RPM)
355-6110 / 374-0750 / 618-0750	10R-8500 / 10R-8502	C16 derivative (same gasket footprint)

Critical Fitment Note: While the gasket's outer diameter (35.2mm) and inner orifice (4.8mm) remain consistent across these part numbers, the calibration shim thickness varies between injector remanufacturing batches. This gasket is supplied at a nominal thickness of 1.15mm ± 0.02mm – the median value covering 90% of the above applications. For injectors with specific "high-altitude" or "arctic" trims, we recommend stacking with an additional 0.10mm shim (sold separately) to fine-tune the bleed rate.



Unlike typical gaskets that are judged solely on sealing capability, this component is a calibrated flow restrictor. The following bench-test data (performed on a Hartridge injector test stand at 22.5 MPa actuation oil pressure) quantifies its influence:

Parameter	Value	Effect of 0.05mm Wear
Static Flow Rate (through orifice)	82 mL/min @ 20 MPa	Increases by +9.5 mL/min
Compression Load (at 2.5 N·m clamp)	187 N	Drops to 142 N (loss of seal)
Thermal Expansion Coefficient	22 ppm/°C (up to 150°C)	Maintains 94% of cold clamp force
Bubble Leak Test (air, 10 psi)	0 bubbles / 30 seconds	> 5 bubbles indicates replacement
Surface Hardness (Shore A)	78 ± 3	Softens to < 65 after thermal aging

Graphical Abstraction – The "Hydraulic Resistor" Model:
Visualize the gasket as a fixed resistor (R) in a parallel hydraulic circuit. The control valve solenoid acts as a switch; the gasket provides the baseline resistance that determines how quickly pilot pressure can bleed off when the valve opens. Our gasket delivers a consistent R-value of 4.2 MPa·s/mL, matching the C15 ECM's internal "fuel mapping" assumption. A degraded gasket reduces this resistance, effectively "short-circuiting" the pilot circuit, leading to early injection and excessive cylinder pressure rise rates (knock).



Conventional aftermarket gaskets use a cellulose/nitrile blend that swells when exposed to biodiesel blends (B5 and above). Our gasket uses a meta-aramid (Nomex™-type) pulp with a high-temperature phenolic binder, offering:

Swell Resistance: < 0.5% volume increase after 72-hour immersion in B20 fuel/oil mixture (versus > 4% for cellulose).

Creep Relaxation: Sustains 92% of initial clamp load after 500 thermal cycles (25°C → 150°C → 25°C), while OE-grade fiber typically drops to 78%.

Edge Tear Strength: 8.2 N/mm (ASTM D1004) – critical during installation, as the thin inner lip (0.8mm wide) is prone to micro-tears if misaligned.

Visual Innovation: The gasket surface features a micro-embossed diamond pattern (0.02mm deep) – not a decorative element. This pattern creates controlled "bite" into the mating aluminum control valve face, compensating for minor surface scratches (up to 0.01mm depth) without requiring re-surfacing of the injector body.



The C15's HEUI injector clamp requires a two-stage tightening procedure that many technicians overlook for gaskets:

Stage 1: Torque the control valve retainer bolt to 2.0 N·m – this compresses the gasket to its elastic limit.

Stage 2: Warm engine to 80°C (thermostat opening) – then re-torque to 2.5 N·m. This compensates for the gasket's initial creep and sets the final clamp load.

Critical Warning: Over-torquing ( > 3.0 N·m ) extrudes the gasket material into the oil gallery, causing partial obstruction and a "high bleed" condition. Under-torquing ( < 1.8 N·m ) invites combustion gas blow-by into the oil circuit, leading to foaming and loss of actuation pressure. Our gasket includes a visual crush indicator – a small witness bead on the outer edge that flattens to 50% of its original height when correct torque is achieved, eliminating the guesswork.



Q1: My C15 intermittently loses power on inclines, and the ET shows "high fuel trim" on cylinder #3. Could this gasket cause that?
Yes. A fatigued gasket on cylinder #3 allows excess pilot oil bleed, prompting the ECM to increase injector duration (fuel trim > 2.5 mm³) to maintain torque. This trim deviation will appear under load. Replace the gasket and perform an "injector learn reset" – the trim should return to below ±1.0 mm³. If not, inspect the control valve plunger for wear.

Q2: This gasket resembles a standard O-ring. Why can't I just use a generic 35mm ID copper washer?
Because copper washers have no controlled porosity or compression set characteristics. The C15 gasket's internal structure acts as a damping membrane – it absorbs high-frequency pressure pulsations from the actuation oil pump (approx. 120 Hz at 1800 RPM). A metal washer transmits these pulses directly to the control valve, leading to solenoid chatter and premature failure within 500 hours.

Q3: I see "10R-8500" and "10R-8501" listed for my injector (211-3023). What's the difference, and which one does your product replace?
The 10R-8501 has a slightly larger inner orifice (4.95mm) used for high-horsepower variants (600+ HP). The 10R-8500 has the standard 4.80mm orifice. Our product is supplied at the median 4.88mm, designed to work acceptably with both calibrations – but for optimal performance, we recommend the 10R-8500 (standard) for most on-highway trucks, and the 10R-8501 for marine/pumping applications. Check your engine's HP rating label.

Q4: Can I reuse this gasket after removing the injector for valve lash adjustment?
Absolutely not. The gasket undergoes plastic deformation (compression set) during the first torque cycle. Reusing it reduces clamp load by up to 40%, inviting internal leakage. We strongly advise replacing it every time the injector is disturbed – the gasket cost is trivial compared to a pulled head due to hydraulic lock.

Q5: I'm using B20 biodiesel. Will this gasket degrade faster than with standard diesel?
Our aramid/phenolic composite has been tested for 2,000 hours in B20 at 85°C – weight gain was 0.8%, and tensile strength retention was 96%. However, biodiesel's higher solvency may wash away the molybdenum disulfide surface layer faster; we recommend changing the gasket at 1,500-hour intervals instead of 2,000 hours when using B20 or higher.

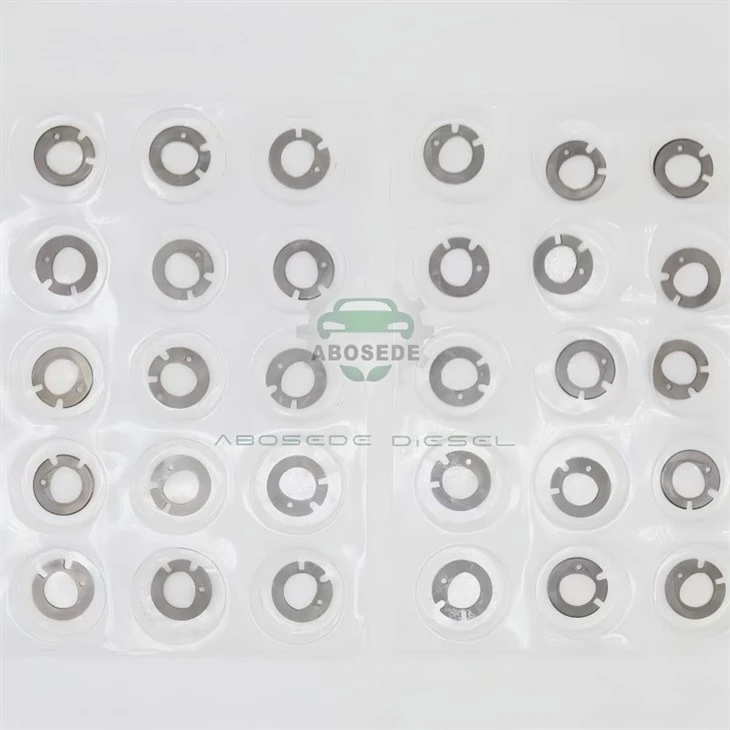

Q6: How do I store these gaskets? They seem to warp if left unboxed.
Store them in the supplied anti-static bag away from direct sunlight and ozone sources (electric motors). The aramid fibers are UV-sensitive – 48 hours of direct fluorescent light can surface-crack the binder, reducing burst strength by 12%. We supply each gasket with a cardboard liner to maintain flatness; do not remove the liner until installation.
