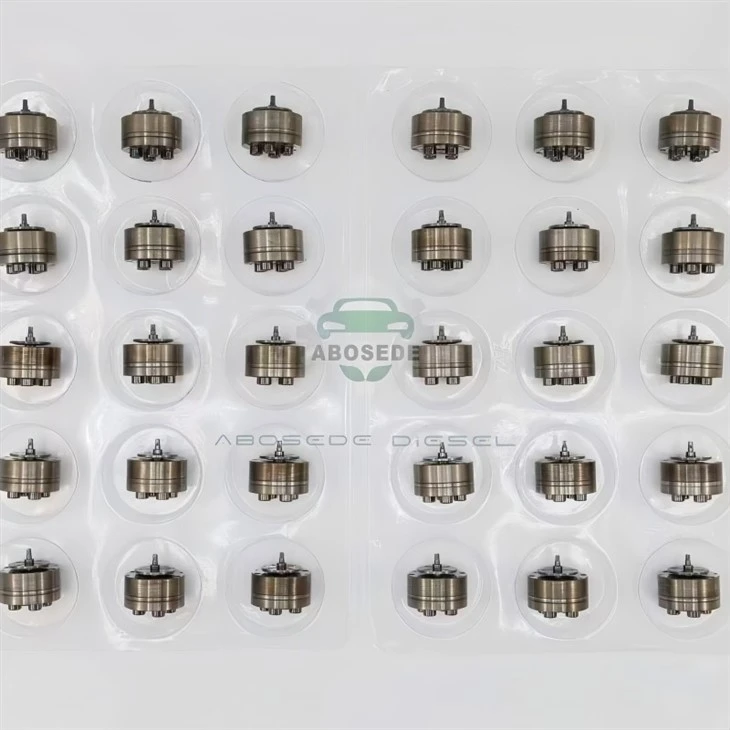

CAT C9 Oil Control Valve – Precision Electro-Hydraulic Actuator For HEUI Common Rail Systems

n Caterpillar's HEUI (Hydraulically Actuated Electronically Controlled Unit Injection) architecture, the oil control valve (OCV) is not merely a flow switch-it is the critical interface where electronic intelligence meets hydraulic power. The CAT C9 OCV translates ECU duty-cycle commands into precise spool displacement, governing the pressurized engine oil (ranging from 6 MPa to 28 MPa / 870 psi to 4,061 psi) that drives each injector plunger. This electro-hydraulic transduction determines injection timing, duration, and pressure-making the OCV the single most consequential component between the ECM and the combustion event.



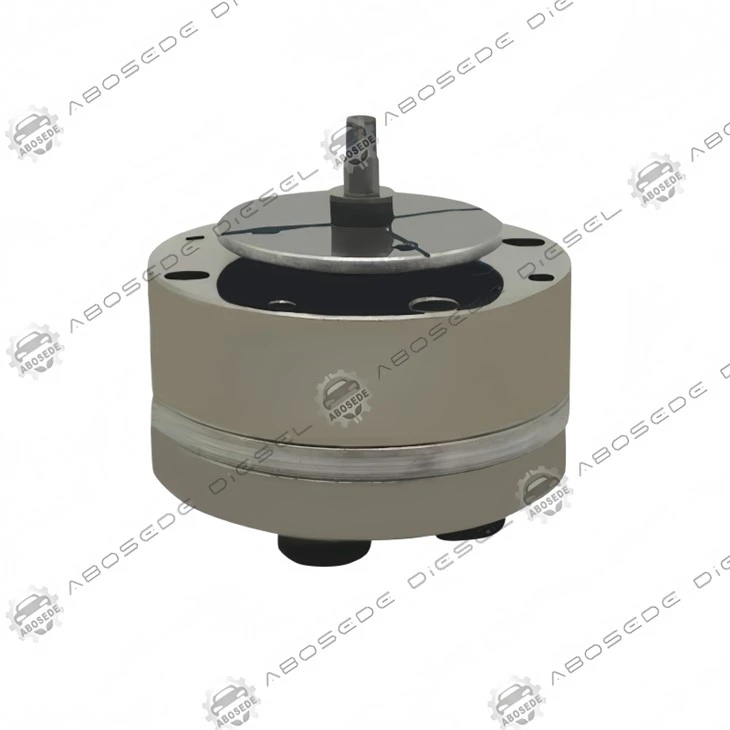

The C9 OCV integrates a spool valve portion and an electromagnetic unit within a compact housing. The spool slides within a precision-machined sleeve, selectively porting high-pressure oil from the actuation pump to the injector galleries or diverting it to return. Unlike mechanically governed systems, this valve operates on a closed-loop principle: the ECU continuously monitors rail pressure, crank angle, and rotor position to modulate the solenoid's PWM signal, achieving injection actuation pressure control with millisecond responsiveness.

A distinguishing feature of the HEUI OCV is its pressure-balanced spool design, which minimizes the actuation force required from the solenoid-enhancing both durability and response linearity across the engine's operating map.

The CAT C9 OCV interfaces with a broad spectrum of injector configurations. Verified compatible part numbers include:

Injection Actuation Pressure Control Valves (IAPCV):

235-5261 / 254-4330 / 267-3361 / 293-4072 / 328-2573

387-9436 / 387-9437 / 387-9438 / 387-9439

20R-8060 / 20R-8061 / 20R-8062 / 20R-8065 / 20R-8068

10R-7221 / 10R-7222 / 10R-7223

557-7633 / 557-7634 / 557-7637

573-4231 / 577-7633

236-0957 / 238-8092 / 242-0857 / 245-3516

254-4339 / 254-4340 / 265-8106 / 266-4446 / 267-3360

267-9710 / 267-9717 / 267-9722

293-4071 / 293-4073 / 293-4074

328-2574 / 328-2576 / 328-2577 / 328-2580

387-9431 / 387-9432 / 387-9433 / 387-9434

553-2592 / 557-7634

10R-2828 / 10R-4764 / 10R-4844 / 11R-1582 / 20R-1917 / 20R-8064

20R-8846 / 20R-8968 / 20R-9433

OCV degradation typically manifests through several distinct signatures:

Check Engine Light – Codes P0010/P0011 (intake VVT circuit/timing faults) or P0020/P0021 (exhaust side)

Rough or unstable idle – Improper valve timing at low RPM

Reduced engine power – Noticeable power loss under load, sluggish acceleration

Difficult cold starting – Insufficient actuation oil pressure at low temperatures

Increased fuel consumption – Inefficient combustion from imprecise timing

Metallic rattling on cold start – OCV stuck in maximum advance/retard position

Root causes include sludge accumulation from degraded oil, solenoid coil failure, spring fatigue, or contaminated oil supply. The C9's HEUI system is uniquely sensitive to oil quality-extended drain intervals directly accelerate OCV wear.

Oil Quality is Paramount – The OCV relies on engine oil as both hydraulic fluid and lubricant. Use oil meeting Cat ECF-1 or higher specifications.

Electrical Integrity – Solenoid resistance should be measured with a DVOM; deviations indicate coil degradation.

No Compressed Air Cleaning – Internal spool clearances are measured in microns; compressed air can force debris into critical sealing surfaces.

Post-Replacement Protocol – Always perform an oil and filter change after OCV replacement.

Q1: What distinguishes the CAT C9 OCV from conventional solenoid valves in other diesel platforms?
The C9 OCV operates within a HEUI architecture where engine oil-not fuel-is the actuation medium, pressurized to over 4,000 psi. This demands exceptional spool precision and solenoid durability far beyond typical VVT oil control valves.

Q2: How does the ECU determine the correct OCV duty cycle?
The ECM synthesizes inputs from the crank angle sensor, rail pressure sensor, and rotor position sensor to calculate target injection actuation pressure, then adjusts the PWM signal to the OCV solenoid in real time.

Q3: Can a failing OCV cause permanent engine damage?
Yes. Prolonged operation with a degraded OCV can lead to premature wear of injector plungers, camshaft components, and timing gears due to inconsistent actuation pressure.

Q4: Is the C9 OCV serviceable, or must it be replaced as a unit?
The OCV is a sealed, calibrated assembly. Internal spool and spring replacement requires specialized tooling and calibration-field replacement of the complete unit is the recommended practice.

Q5: How does oil viscosity affect OCV performance?
Incorrect viscosity alters the hydraulic response time of the spool. Cat recommends SAE 15W-40 or 10W-30 depending on ambient conditions; deviation can cause sluggish actuation or hunting.

Q6: What is the typical service life of a C9 OCV?
Service life varies with operating conditions and maintenance discipline, but 8,000–12,000 hours is achievable with strict adherence to oil change intervals and OEM filtration specifications.
