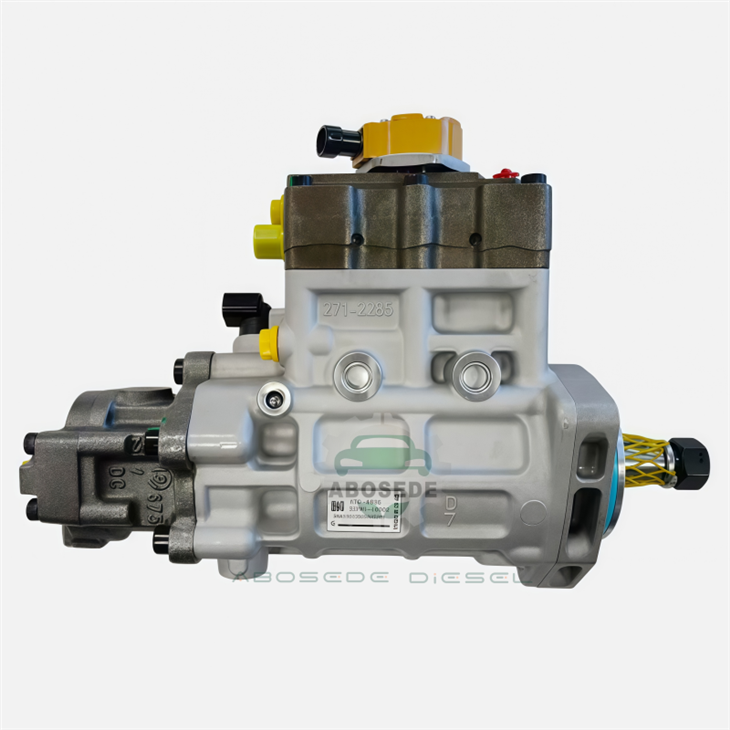

Precision Pressure: Decoding The Core Dynamics Of The 10R-7659 Fuel Pump

In the landscape of modern heavy-duty performance, the Caterpillar C4.4 engine is a legendary workhorse. However, its true power is not just found in the pistons or the block-it's found in the hydraulic precision of the 10R-7659 Fuel Injection Pump. As a Remanufactured (Reman) high-pressure common rail (HPCR) unit, the 10R-7659 isn't just a part; it's a calibrated system designed to restore factory-fresh atomization and torque to your machinery.

While many focus on simple compatibility, the 10R-7659 represents a specialized intersection of volumetric efficiency and electronic timing, acting as the high-stakes heart of the Cat® ACERT™ fuel system.





The 10R-7659 is the "Gold Standard" for Cat C4.4 and C6.4 engines, often used interchangeably with Perkins 1104D-E44 platforms. It belongs to the CR200 family of pumps, known for their ability to sustain high rail pressures regardless of the engine's RPM.

Core Data & Cross-Reference

Primary Part Number: 10R-7659 (Reman)

OEM New Alternative: 324-0532, 295-9125, 352-6584

Perkins Equivalent: 2641A405, 2641A403

System Type: High-Pressure Common Rail (HPCR)

Average Weight: 19.0 lbs (8.6 kg) - Built for heavy-duty vibration damping.





This pump isn't a "one-trick pony." It powers an expansive range of Caterpillar assets:

🏗️ Excavators: M313D, M315D, M317D2 (Wheel and Track variants).

🚜 Dozers: D3K LGP/XL, D4K LGP/XL, D5K LGP/XL.

🛤️ Paving: CS-44, CS-54B, CP-44, CP-54 Vibratory Compactors.

⚡ Loaders: 420E, 430E, 450E Backhoes and 914G Integrated Toolcarriers.





The 2641A405 is built to solve the modern diesel dilemma: High Pressure vs. Low Lubricity. Modern Ultra-Low Sulfur Diesel (ULSD) is "dry," which can lead to internal scuffing. This pump counters that through specialized engineering:

Hardened Internal Geometry: The plungers and barrels are finished with proprietary anti-wear coatings that allow the pump to maintain a 1,600+ bar pressure ceiling without self-destructing under low-lubricity conditions.

Volumetric Consistency: Unlike inferior aftermarket pumps that lose efficiency as they heat up, the 2641A405 maintains a flat delivery curve. This prevents the "hot-start" issues and power derates that plague poorly manufactured alternatives.

Digital Response Mapping: The integrated solenoid and internal valves are calibrated to the millisecond, allowing the ECM (Engine Control Module) to micro-manage fuel timing for maximum thermal efficiency and reduced soot output.





Why choose a 10R-7659 Reman unit over a generic "new" aftermarket pump? The answer lies in the Caterpillar Reman process, which differs fundamentally from a simple "repair."

Engineering Retrofits: Every 10R-7659 includes the latest engineering updates. If Caterpillar improved the internal seal material or plunger coating in 2024, that update is baked into the Reman unit you buy today.

Micron-Level Tolerances: In a common rail system, a leak the size of a human hair can cause a 20% drop in rail pressure. These pumps are tested in Class 7 Clean Rooms to ensure internal bypass is near zero.

Anti-Scuffing Plungers: To handle Ultra-Low Sulfur Diesel (ULSD), which lacks natural lubrication, the 10R-7659 uses hardened internal surfaces that resist "metal-on-metal" welding during high-load events.







Q1: Why did my previous pump "grenade" metal into the fuel system?

A: This is usually caused by Air Intrusion or Fuel Starvation. Since the 10R-7659 uses diesel as its only lubricant, even a few seconds of "dry" operation at 1,800 bar causes metal-to-metal contact. The resulting shavings (glitter) will destroy your injectors. Always prime the system before the first start.

Q2: Is the 10R-7659 compatible with B20 Bio-Diesel?

A: Yes, Cat C4.4 engines are generally B20 compatible, but you must increase your maintenance frequency. Bio-diesel holds more water, and the 10R-7659's internal tolerances are extremely sensitive to water-induced corrosion (pitting).

Q3: Does a "Low Rail Pressure" code (E1217) always mean the pump is bad?

A: Not always. It could be a failing Fuel Pressure Sensor or a leaking Pressure Relief Valve (PRV). However, if the code appears only when the engine is hot, it's a classic sign that the 10R-7659 is losing its volumetric efficiency due to internal wear.

Q4: How does this pump improve cold-start performance?

A: Unlike old rotary pumps, the 10R-7659 can build peak rail pressure almost instantly. This allows for a "fine mist" atomization even when the engine is freezing, leading to faster ignition and less white smoke.

Q5: Can I rebuild a 10R-7659 in a standard workshop?

A: It is highly discouraged. HPCR pumps require specialized test benches to calibrate the solenoid response and delivery volume. A manual rebuild without a clean room and flow-bench testing often results in "injector knock" or premature failure within 100 hours.
