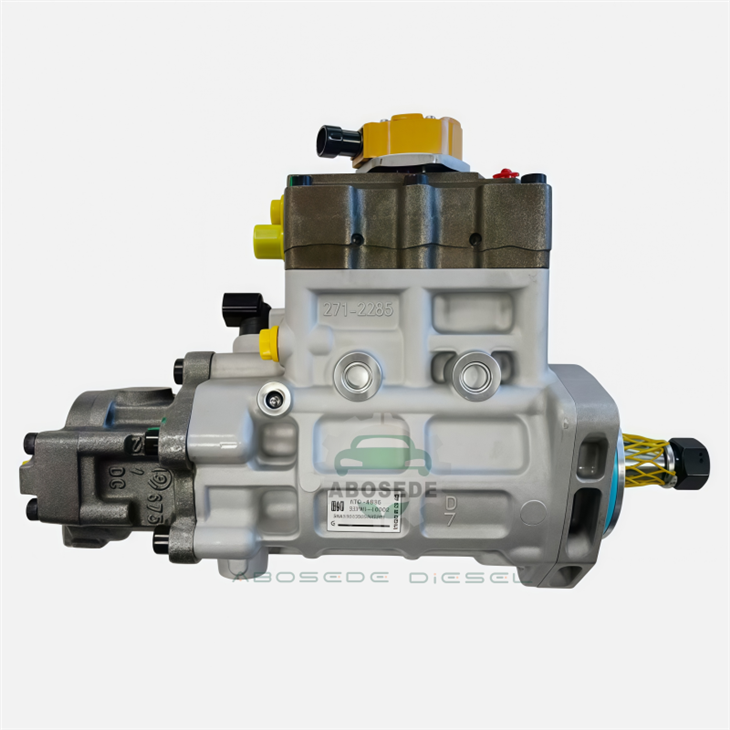

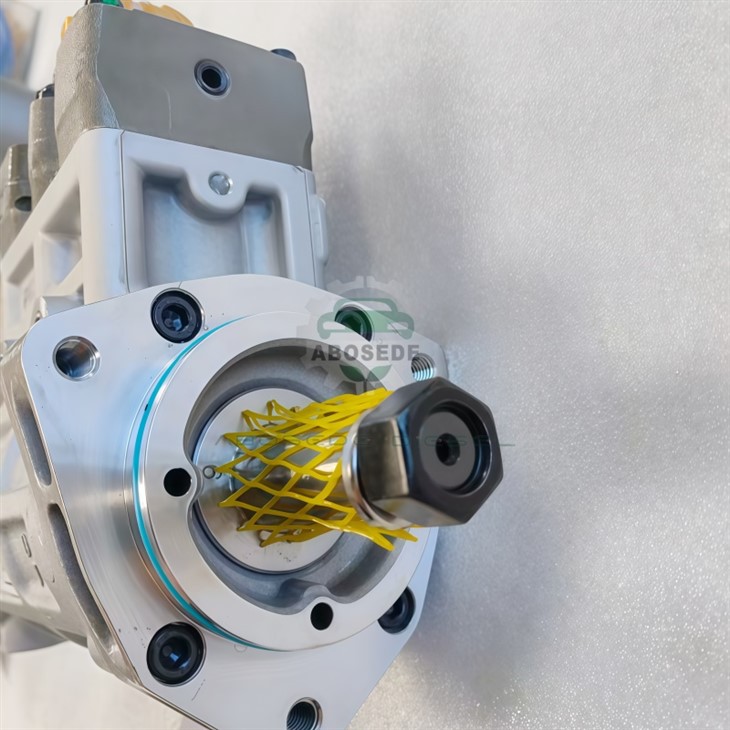

Premium High-Pressure Power: 10R-7660 Common Rail Fuel Pump For C6.6 Engines

In the high-stakes world of heavy machinery, the 10R-7660 Fuel Injection Pump stands as the heartbeat of the C6.6 diesel engine. As a critical component of the High-Pressure Common Rail (HPCR) system, this pump is engineered to bridge the gap between raw fuel and calibrated power. Unlike traditional mechanical pumps, the 10R-7660 utilizes advanced solenoid-controlled metering to ensure that every drop of diesel is pressurized to exact specifications before reaching the injectors.

Whether you are managing a fleet of 320D excavators or maintaining 953D track loaders, this pump is the definitive solution for restoring OEM-level fuel atomization and combustion stability.





Feature	Specification Details
Part Number	10R-7660 (Reman) / 317-8021 (New)
Cross Reference	2641A312, 3178021, AP55201, 10R7660
System Compatibility	High-Pressure Common Rail (HPCR)
Engine Models	Cat C6.6 ACERT / Perkins 1106D-E66TA
Operating Pressure	Up to 1,600 - 1,800 Bar (System Dependent)
Construction	High-Grade Anti-Corrosive Alloy Steel
Weight	Approx. 20.8 lbs (9.4 kg)





The versatility of the 10R-7660 allows it to serve across multiple industrial sectors. It is the primary high-pressure source for:

Earthmoving & Excavation: 320D, 320D L, 323D L Excavators.

Loading & Hauling: 924H, 928H, 930H Wheel Loaders; 953D, 963D Track Loaders.

Infrastructure: AP-1000E Asphalt Pavers, M316D Wheeled Excavators.

Power Generation: C6.6 Generator Sets and Industrial Power Units.





The 10R-7660 is more than just a pump; it is a sophisticated flow-management device.

Inlet Metering Valve (IMV): Regulates the amount of fuel entering the pumping chamber, reducing parasitic load on the engine.

Dual-Plunger Architecture: Provides a balanced pressure output to the rail, minimizing "pressure ripples" that can lead to injector wear.

Thermal Resilience: Internal components are treated with specialized coatings to resist the lower lubricity found in modern Ultra-Low Sulfur Diesel (ULSD).





To ensure the longevity of your C6.6 Common Rail System, follow these engineer-verified protocols:

Micron-Level Filtration: The HPCR system is sensitive to particles smaller than a human hair. Always use high-efficiency fuel filters (2-micron rating).

Water Management: Water is the "silent killer" of the 10R-7660. Drain your water separators daily and use stabilizers if the machine sits for more than 30 days.

Air-Tight Priming: Air intrusion causes cavitation. Ensure all supply lines are torqued to spec to prevent "micro-leaks" that introduce air into the high-pressure circuit.





Q1: My engine has a "Hard Start" when hot. Is the 10R-7660 to blame?

A: It's a strong possibility. As pumps wear internally, they struggle to build the "threshold pressure" required for the ECM to trigger the injectors. Perform a "Cranking Rail Pressure Test" to confirm.

Q2: Can I swap a 10R-7660 for a different C-series pump?

A: No. While they may look similar, the internal cam profile and the solenoid mapping are specifically calibrated for the C6.6/1106D displacement and timing logic. Always match the Part Number.

Q3: Why should I choose a Reman 10R-7660 over a cheap aftermarket copy?

A: Precision. Common rail tolerances are measured in microns. Aftermarket pumps often lack the correct hardening on the plungers, leading to early metal-flake contamination which can destroy your entire injector set.

Q4: What are the symptoms of a failing Inlet Metering Valve on this pump?

A: Look for "Surging" at idle or a "Limp Mode" triggered by fuel pressure deviation codes (e.g., Actual vs. Desired pressure mismatch).

Q5: Does this pump require "Coding" or "Programming" after installation?

A: The pump itself is mechanical/electronic hardware. However, it is highly recommended to perform a "Fuel System Reset" via diagnostic software to clear old adaptation values from the ECM.

Q6: Is white smoke a sign of fuel pump failure?

A: Usually, white smoke indicates unburned fuel due to low rail pressure or poor atomization. If the 10R-7660 cannot reach operating pressure, the injectors won't "mist" the fuel properly, leading to incomplete combustion.
