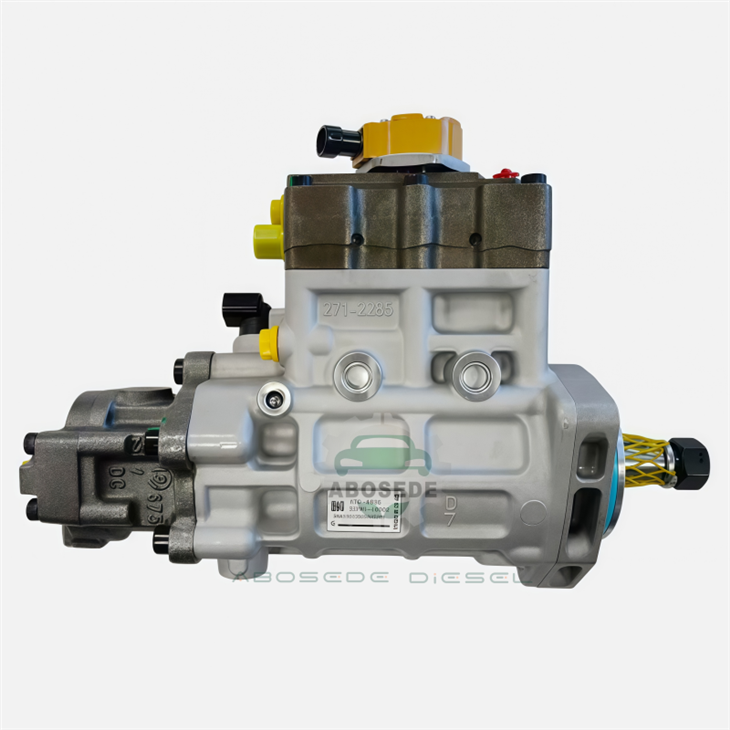

Engineering Efficiency: The 32E61-10302 High-Pressure Core For C4.2 Diesel Performance

In the sophisticated world of industrial fluid power, the 32E61-10302 Fuel Injection Pump is recognized as the "Command Center" for the C4.2 Common Rail system. This is not a simple displacement pump; it is a precision-calibrated hydraulic intensifier engineered to meet the brutal duty cycles of modern earthmoving machinery. For operators of Caterpillar and Mitsubishi-powered equipment, the 32E61-10302 is the definitive solution for restoring the razor-sharp throttle response and fuel economy that define the C4.2 engine platform.





The 32E61-10302 represents the evolution of diesel technology where mechanical durability meets electronic intelligence. In a High-Pressure Common Rail (HPCR) environment, this pump is tasked with maintaining a massive "pressure reserve" in the rail. By utilizing an integrated Suction Control Valve (SCV), the 32E61-10302 communicates with the Engine Control Module (ECM) in microseconds to modulate fuel volume. This ensures that whether your machine is at a low-idle or a full-load breakout, the hydraulic pressure remains perfectly stabilized to prevent combustion "knock" and smoke opacity.





Modern Ultra-Low Sulfur Diesel (ULSD) is notoriously dry, lacking the lubricity of high-sulfur fuels. To counter this, the internal components of the 32E61-10302 are treated with Diamond-Like Carbon (DLC) coatings. This molecular-level shielding reduces the coefficient of friction between the plunger and the barrel, preventing "seize-up" during high-temperature operations. The result is a pump that can withstand the abrasive nature of poor-quality fuel while maintaining its volumetric efficiency over thousands of service hours.





Precision in parts selection is the first step toward reducing downtime. The 32E61-10302 is built to original equipment specifications for a seamless "Plug-and-Play" experience:

Primary Part Number: 32E61-10302 / 32E6110302

Secondary Reference: 295000-0670 / 295000-0672

Engine Fitment: C4.2 Diesel Engine (Common Rail Config)

Core Applications: 312D, 313D, 314D, and 315D series Excavators.

Pressure Rating: Engineered for 160MPa+ operational stability.

Drive System: Precision-timed tapered shaft with high-torque woodruff key.





Excavators often work in environments where ambient temperatures exceed 45°C (113°F). The 32E61-10302 is housed in a high-density, heat-dissipating alloy. This design facilitates rapid cooling of the fuel as it passes through the pump, preventing "vapor lock" and ensuring that the diesel maintains the correct viscosity for lubrication. This thermal stability is crucial for maintaining consistent rail pressure during high-load, high-heat digging cycles.





Because the 32E61-10302 operates with tolerances measured in microns (1/100th the thickness of a human hair), maintenance must be treated as a surgical procedure:

Stage-Two Filtration: Never bypass the secondary 2-micron filter. Even microscopic dust can act as "sandpaper" inside the 32E61-10302.

Water Detection: Use high-quality water separators with electronic sensors. Water is the primary cause of "Flash Erosion" on the pump plungers.

Priming Protocol: After a pump replacement, the system must be bled of all air. Air bubbles in the high-pressure line can cause "cavitation pitting," which can ruin a new pump in minutes.





Q1: Why does my C4.2 engine throw a "Rail Pressure Low" code under load?

This is often a sign that the 32E61-10302 is suffering from internal wear. While it can produce enough pressure for idling, it cannot meet the volumetric demand when the injectors are firing at full capacity. If replacing the filters doesn't solve it, the pump's internal plungers are likely worn.

Q2: Can I install the 32E61-10302 without specialized diagnostic tools?

Physical installation is straightforward, but most C4.2 ECMs require a "Pump Learning" reset. This tells the computer that a new, high-efficiency pump is installed, allowing the SCV to adjust its duty cycle correctly. Skipping this can lead to unstable idling.

Q3: Is the 32E61-10302 compatible with Bio-Diesel?

Yes, it is compatible with B20 blends. However, because Bio-Diesel is more prone to microbial growth (algae), we recommend doubling the frequency of fuel filter inspections to prevent the pump from inhaling organic debris.

Q4: What is the difference between this pump and a standard rotary pump?

Standard rotary pumps time the injection mechanically. The 32E61-10302 is a "pressure generator" only. It supplies the rail, while the injectors and ECM handle the timing. This allows for much higher pressures and significantly better fuel atomization.

Q5: How does a faulty SCV on the 32E61-10302 affect machine performance?

If the Suction Control Valve sticks, you will experience "Surging" (RPM fluctuating up and down) or a sudden "Limp Mode" where the engine won't rev above 1200 RPM. In many cases, the SCV can be cleaned or replaced to extend the life of the 32E61-10302.

Q6: Can air in the fuel lines damage the 32E61-10302?

Absolutely. Air is compressible, whereas diesel is not. When air enters the high-pressure chamber, it compresses and creates an "implosion" effect that can crack the ceramic or steel plungers inside the pump.
