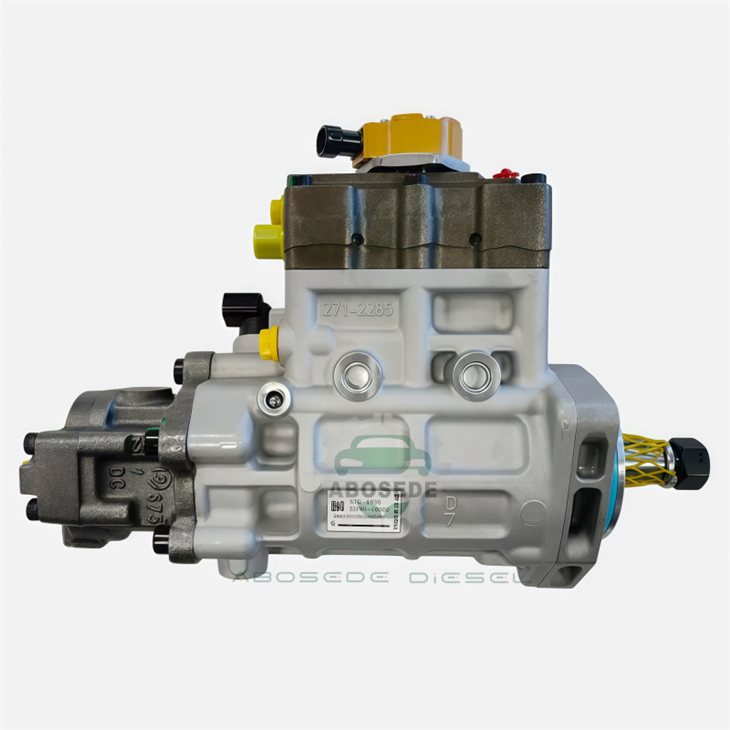

Mastering Hydraulic Precision: The 352-6584 Fuel Injection Pump For C4.2/C4.4 Common Rail Ecosystems

In the modern diesel theater, the 352-6584 Fuel Injection Pump is far more than a delivery unit-it is the high-pressure architect of the C4.2 and C4.4 engine platforms. Engineered to meet the exacting tolerances of Tier 3 and Stage IIIA emission standards, this pump serves as the primary energy source for the High-Pressure Common Rail (HPCR) system. Whether powering a Caterpillar 312D excavator or a versatile 420E backhoe, the 352-6584 translates mechanical rotation into a stabilized, atomized fuel supply that defines machine uptime.





The 352-6584 operates on a principle of hydraulic potential rather than simple displacement. In an HPCR system, the pump must maintain a reservoir of diesel at pressures exceeding 1,600 bar, regardless of engine load. This "Constant Readiness" logic allows the Engine Control Module (ECM) to command up to five distinct injection events per piston stroke. By decoupling the pressure generation from the injection timing, this pump enables the C4.2 engine to deliver maximum torque at low RPMs while significantly reducing NOx and particulate matter.





Ultra-Low Sulfur Diesel (ULSD) has revolutionized emissions but challenged component longevity due to its reduced lubricity. The 352-6584 counters this with an "Armor-First" approach:

Induction-Hardened Plungers: To resist surface fatigue and microscopic pitting.

Nitrile-Compound Seals: Specifically formulated to resist the chemical solvency of modern Bio-diesel blends (up to B20).

High-Chrome Steel Housing: Designed to withstand the internal stress of 23,000+ PSI without dimensional warping.





Precision is the difference between a working machine and a stranded asset. The 352-6584 is a high-interchangeability unit designed for plug-and-play installation:

Part Number: 352-6584 / 3526584

Reman Equivalents: 10R-7660, 10R-7659

Cross-Reference: 324-0532, 295-9125, 2641A405

Mounting Type: High-stability 4-bolt rectangular flange.

Drive Shaft: 1.25-inch precision-tapered spline for zero-slip torque transfer.

Regulator: Integrated Suction Control Valve (SCV) for millisecond-level pressure modulation.





A major challenge in diesel operation is performance loss as fuel temperatures rise. The 352-6584 utilizes a sophisticated internal thermal management system. By maintaining precise internal clearances between the barrel and plunger, the pump prevents "Internal Bypass"-a condition where hot, thin diesel leaks back to the tank instead of the rail. This ensures that your 314D or 315D excavator maintains its breakout force from the first hour of the shift to the tenth.





To maximize the service life of your 352-6584, the fuel system must be treated like a surgical environment.

Water Is the Enemy: Ensure the water separator is drained daily. Even a single droplet of water can cause "Flash-Boiling" inside the high-pressure chamber, resulting in plunger cavitation.

Micron Integrity: Always utilize 2-micron secondary filters. A particle smaller than a human cell is enough to score the precision-honed surfaces of this pump.

Priming Protocol: Never "dry-crank" the engine after a filter change. Use the manual priming pump to ensure the 352-6584 is fully lubricated before the first ignition.





Q1: My engine has a "Hard Start" when hot but starts fine when cold. Is it the 352-6584?

Yes, this is a classic indicator of internal wear. When the pump is cold, the tighter clearances allow it to build starting pressure. As it heats up and the fuel thins, internal leakage increases, preventing the rail from reaching the "cracking pressure" required to fire the injectors.

Q2: What is the difference between the 352-6584 and the 10R-7660?

The 352-6584 is the "New" part number, while the 10R-7660 is the "Reman" (Remanufactured) version. Both provide identical performance, but the Reman unit is often preferred for older fleets to balance maintenance costs while maintaining OE reliability.

Q3: Can a faulty Suction Control Valve (SCV) be replaced without removing the whole pump?

On most C4.2/C4.4 configurations, yes. If you are experiencing unstable RPM or "surging" at idle but the pump still makes full pressure under load, an SCV kit might resolve the issue without the cost of a full 352-6584 replacement.

Q4: Why does the 352-6584 have a 4-bolt flange instead of a 2-bolt mount?

The 4-bolt design provides superior structural rigidity. At 1,600 bar, the pump generates significant "recoil" forces. The 4-bolt mount ensures the pump remains perfectly aligned with the timing gear, preventing gear-train noise and oil leaks.

Q5: Is air ingress a threat to this pump?

Critically so. Air in the common rail acts as a compressible gas, causing "Hydraulic Hammer" effects that can shatter internal components. If you suspect an air leak in the suction line, repair it immediately to avoid catastrophic 352-6584 failure.
