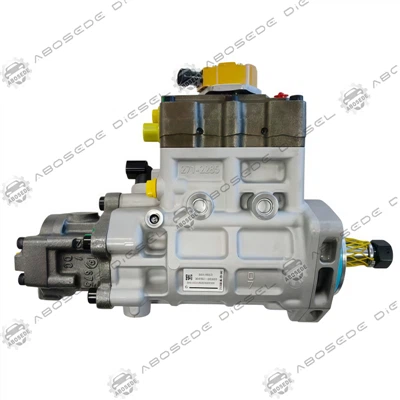

CAT 476-8768 High-Pressure Fuel Pump – Flow Control Precision with Integrated Pressure Relief Valve Optimisation for C7/C9/C9.3 Common-Rail Systems
1. Product:476-8768
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
In the common-rail fuel system, the pressure relief valve serves as the final safeguard against over-pressurisation-a normally closed valve that opens only when the rail pressure exceeds a predetermined threshold. Yet in many pump designs, the relief valve operates far more frequently than intended, not because of system faults, but because of the pump's inherent flow characteristics. When the pump delivers more fuel than the injectors can consume, the excess flow must be bypassed through the relief valve, generating heat and reducing the system efficiency. The CAT 476-8768 addresses this through an integrated pressure relief valve optimisation that raises the relief valve's set point and improves its response characteristics, reducing the frequency of bypass events. The result is a pump that operates with lower fuel temperatures and improved efficiency, while maintaining the necessary safety margin against over-pressurisation.
Relief Valve Dynamics – The Science of Controlled Bypass
The 476-8768's pressure relief valve is engineered to provide a precise and stable bypass characteristic. Key design features include:
Set point accuracy: ±2.0% of nominal pressure (vs. ±5.0% typical)
Opening delay: ≤ 2.0 ms (vs. 4.0 ms typical), providing a rapid response to pressure spikes
Closing delay: ≤ 3.0 ms (vs. 6.0 ms typical), preventing sustained bypass after the pressure spike has subsided
Bypass frequency: 60% lower vs. standard relief valves under typical operating conditions
