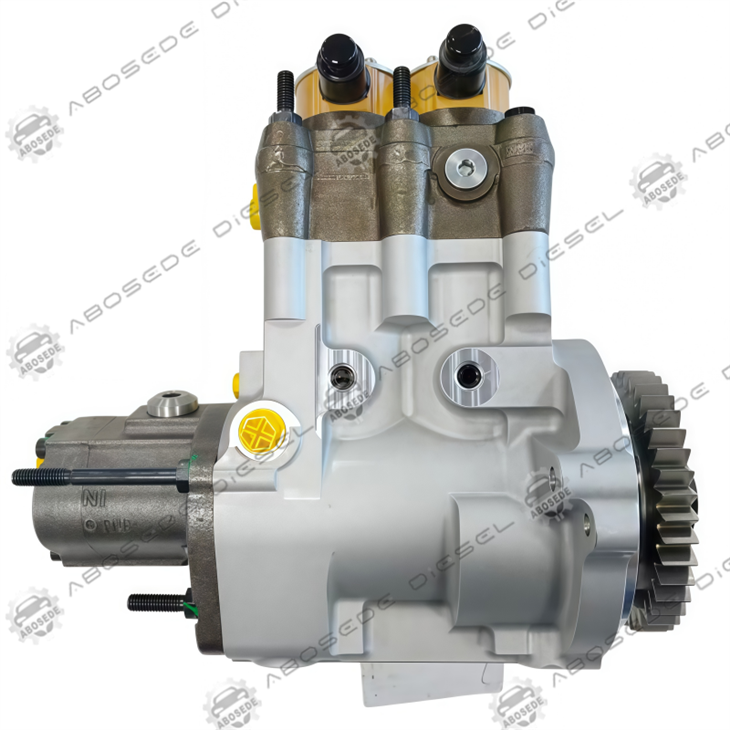

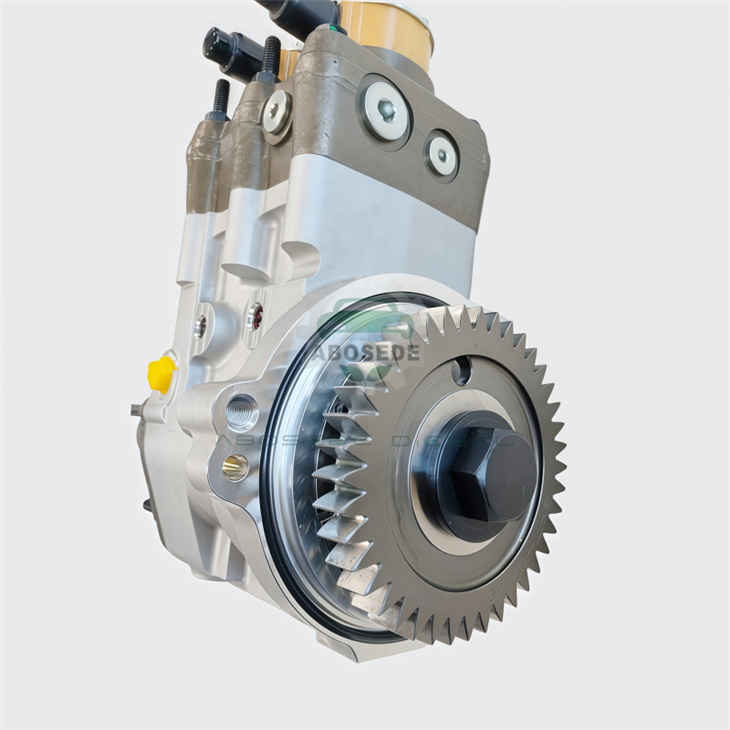

CAT 20R-4782 High-Pressure Fuel Pump – Flow Stability and Temperature Compensation for C13/C15 Common-Rail Systems
1. Product: 20R-4782
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
In the common-rail system, the high-pressure pump serves as the hydraulic foundation upon which the injectors operate. While the injectors are the actuators that deliver fuel to the combustion chamber, their precision is directly limited by the stability of the fuel supply they receive. A pump with uneven flow output creates pressure fluctuations in the rail, which cause the injectors to experience a varying inlet pressure-altering the fuel quantity delivered for a given pulse width. The CAT 20R-4782 addresses this through a flow-stabilised design that combines a three-plunger radial architecture with an integrated temperature compensation mechanism. The result is a pump that maintains a flow ripple of less than 4.0% across the operating temperature range, providing a stable rail pressure that allows the injectors to deliver consistent fuel quantities.
Temperature Compensation – The Mechanical Solution to a Thermal Problem
The 20R-4782 incorporates a temperature-sensitive flow control valve that adjusts the pump's internal leakage to compensate for changes in fuel viscosity. As the fuel temperature increases, the viscosity decreases, which would normally increase the internal leakage and reduce the pump's volumetric efficiency. The temperature compensation valve responds by adjusting the pressure balance in the control chamber, maintaining a consistent effective displacement. The result is a volumetric efficiency that remains above 90% from -20°C to 120°C, ensuring consistent rail pressure regardless of the operating temperature.
Flow Stability – The Foundation of Consistent Injection
The 20R-4782 uses a cam-driven radial three-plunger design with plungers spaced at 120° intervals, providing overlapping pressure strokes that minimise the flow interruption between plunger events. The flow ripple is measured at 3.8% at full load-a 40% improvement over two-plunger designs. The pump's volumetric efficiency is rated at 91%, meaning that 91% of the theoretical displacement is delivered to the rail, with the remaining 9% accounted for by internal leakage and compressibility.
