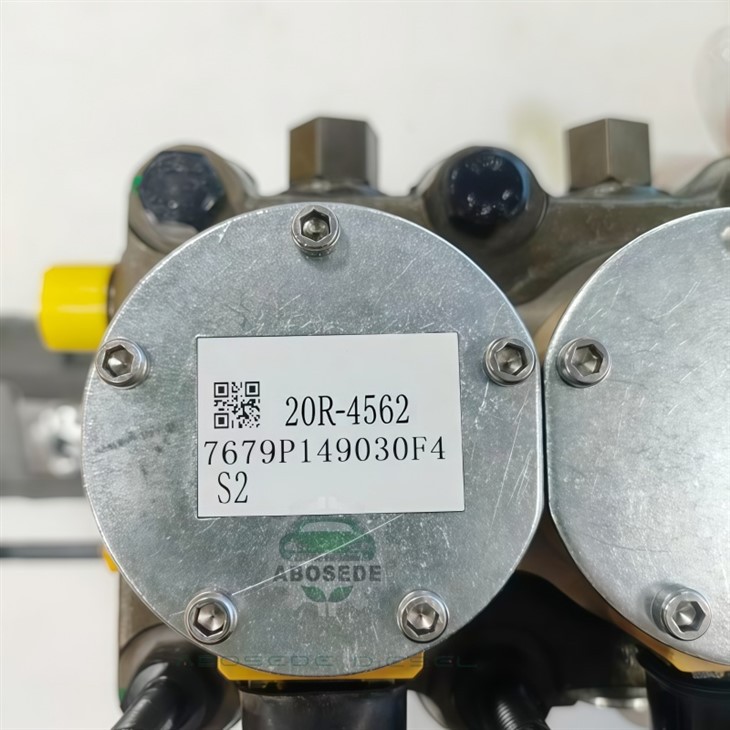

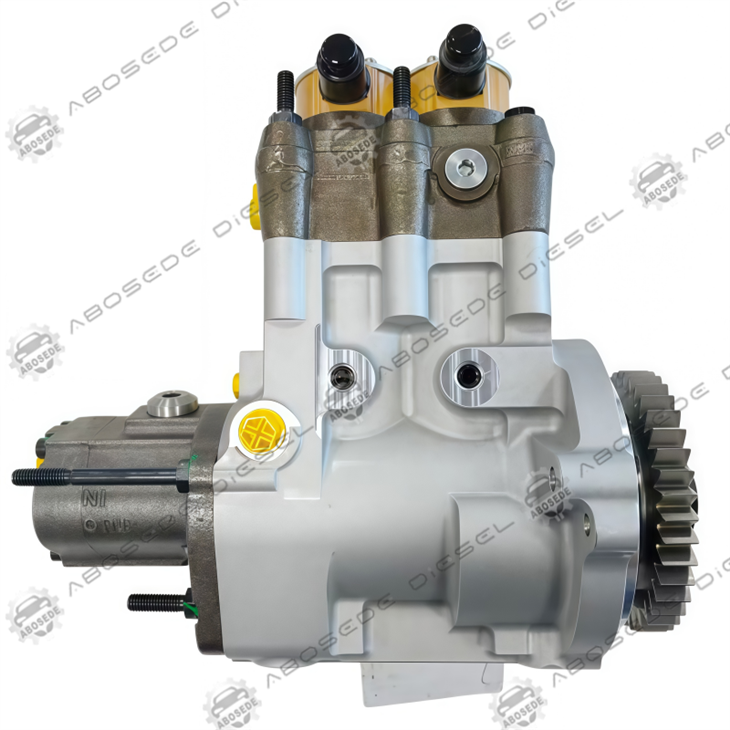

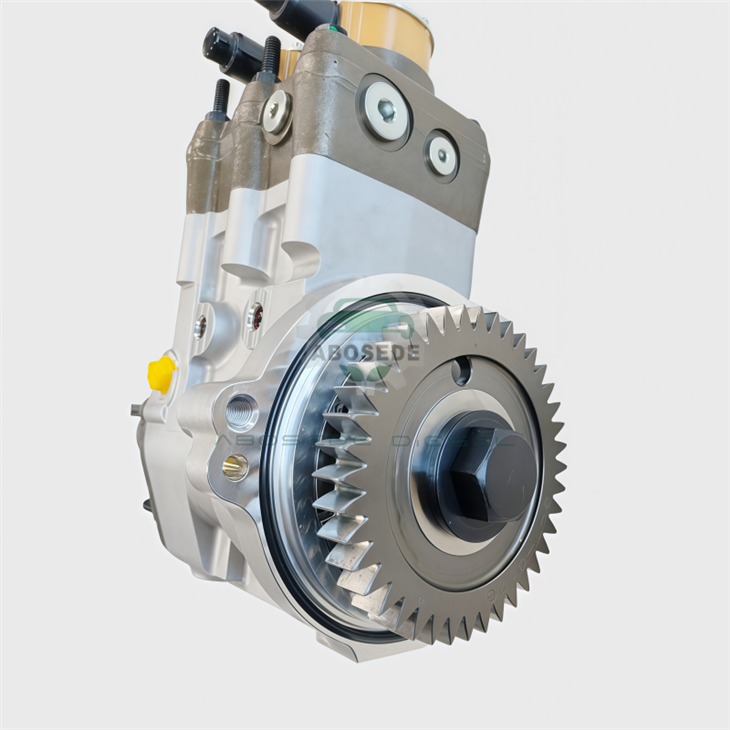

CAT 20R-4562 High-Pressure Fuel Pump – Optimised Flow Stability with Enhanced Cavitation Resistance for C13/C15 Common-Rail Systems
1. Product:20R-4562
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
In the common-rail fuel system, pump performance is typically measured at standard test conditions-20°C fuel temperature, sea-level air pressure, and steady-state operation. Yet the real-world operating environment is rarely standard: mining trucks operate at high altitudes where the thinner air affects the transfer pump's inlet pressure; marine engines run in hot engine rooms where fuel temperatures exceed 50°C; and heavy-haul trucks pull long grades where the pump runs at maximum load for extended periods. Under these conditions, the pump's volumetric efficiency can drop by 5–8% compared to the test bench, leading to rail pressure instability and a loss of power. The CAT 20R-4562 addresses this through a cavitation-resistant plunger design and an optimised inlet port geometry that maintains the volumetric efficiency above 88% even at fuel temperatures up to 70°C and altitudes up to 3,000 metres. The result is a pump that delivers consistent rail pressure across the full operating envelope, ensuring that the injectors receive a stable fuel supply regardless of the environment.
Cavitation Resistance – The Key to High-Temperature and High-Altitude Performance
Cavitation occurs when the pressure at the pump inlet drops below the fuel's vapour pressure, causing bubbles to form and collapse violently against the plungers and barrel surfaces. At high altitudes, the reduced atmospheric pressure lowers the inlet pressure; at high temperatures, the fuel's vapour pressure increases, making cavitation more likely. The 20R-4562's enlarged inlet port (10 mm diameter) reduces the pressure drop at the inlet, while the spiral-groove plunger design creates a hydrodynamic wedge that resists cavitation erosion on the plunger surface. The plungers are additionally coated with a diamond-like carbon (DLC) layer that provides a hard, cavitation-resistant surface with a hardness of 2,000 HV.
Flow Stability – The Foundation of Consistent Injection
The 20R-4562 uses a cam-driven radial three-plunger design with plungers spaced at 120° intervals, providing overlapping pressure strokes that minimise the flow interruption between plunger events. The flow ripple is measured at 3.8% at full load-a 40% improvement over two-plunger designs. The pump's volumetric efficiency is rated at 91% under standard conditions and remains above 88% at 70°C fuel temperature and 3,000 metres altitude.
