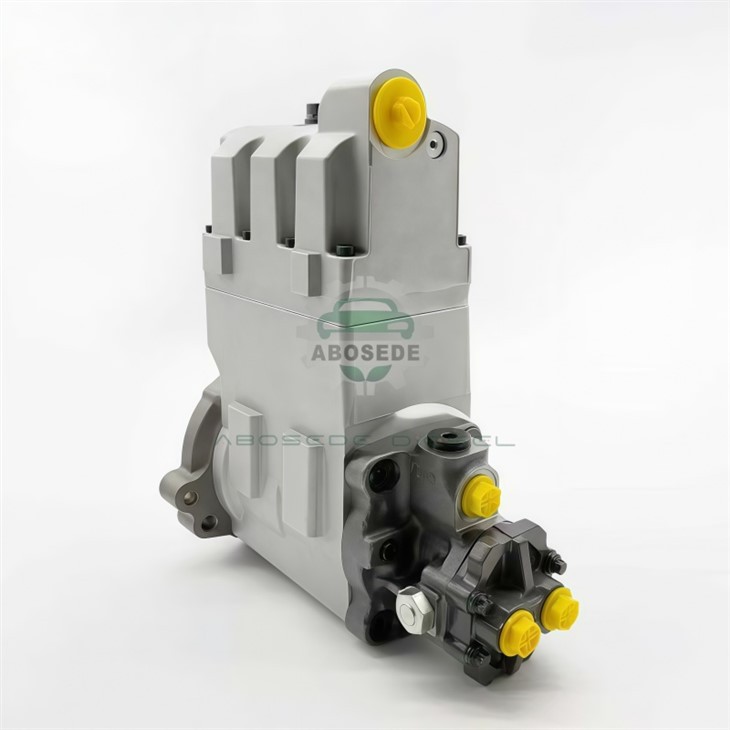

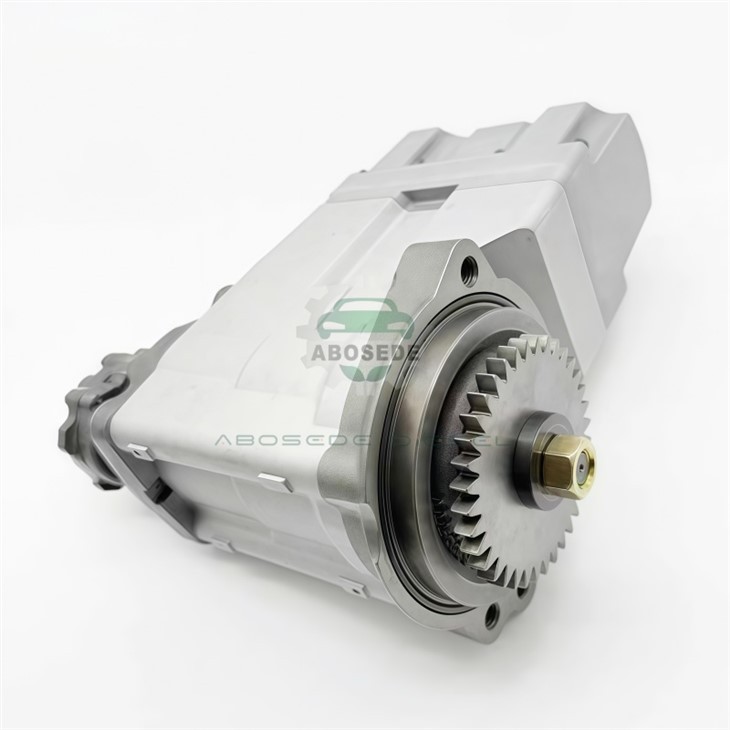

CAT 20R-1649 High-Pressure Fuel Pump – Flow Stability and Long-Term Performance Consistency for C7/C9/C9.3 Common-Rail Systems
1. Product:20R-1649
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
In the common-rail fuel system, the high-pressure pump is often replaced reactively-only after rail pressure faults, power loss, or visible fuel leaks have occurred. Yet these symptoms are the end stage of a gradual degradation process that begins with microscopic wear at the plunger-barrel interface. As the pump accumulates operating hours, the plunger-barrel clearance increases, internal leakage rises, and the volumetric efficiency slowly declines. The rate of this decline is not uniform-it accelerates as the clearance grows, creating a wear curve that is flat in the early life and steep near the end of life. The CAT 20R-1649 is engineered to flatten this wear curve through a combination of a hardened plunger surface and a controlled-leakage barrel design, extending the useful life of the pump and providing a more predictable replacement interval. The result is a pump that maintains its volumetric efficiency above 89% for over 8,000 hours-a 30% improvement over standard pumps-reducing the frequency of unexpected failures and allowing for planned, cost-effective replacements.
Wear Curve Management – The Science of Extended Service Life
The 20R-1649's wear resistance is achieved through a combination of material selection and surface engineering. Key design features include:
Plunger coating: DLC (diamond-like carbon) with a hardness of 2,000 HV, providing a wear-resistant surface that maintains the plunger-barrel clearance for a longer period
Barrel finish: Precision-honed to Ra ≤ 0.04 µm, providing a smooth sealing surface that minimises leakage
Clearance: 0.002–0.004 mm (dynamically matched), ensuring a consistent sealing force across the pump's service life
Volumetric efficiency retention: ≥ 89% after 8,000 hours (vs. 85% typical)
Wear curve: Flat degradation profile for the first 6,000 hours, with controlled acceleration in the final 2,000 hours
