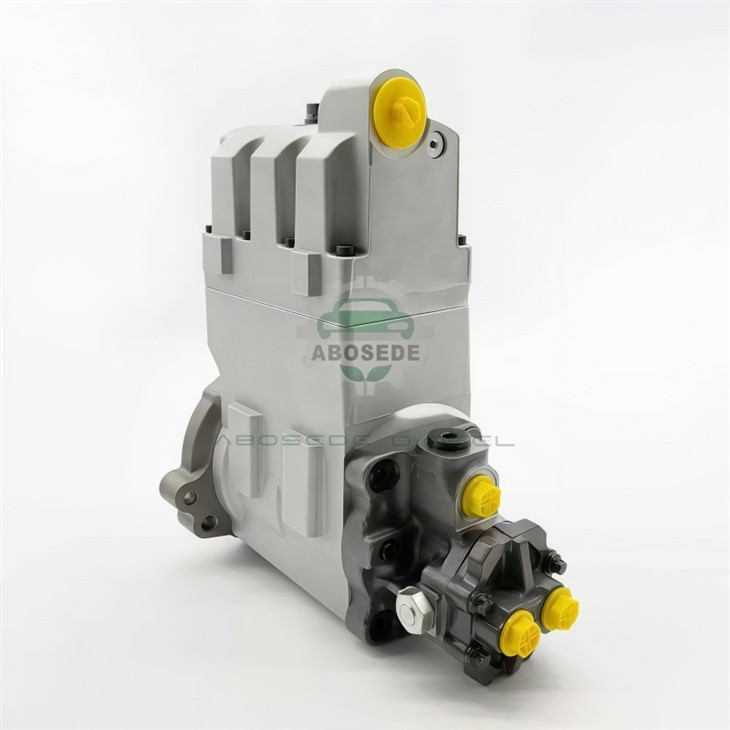

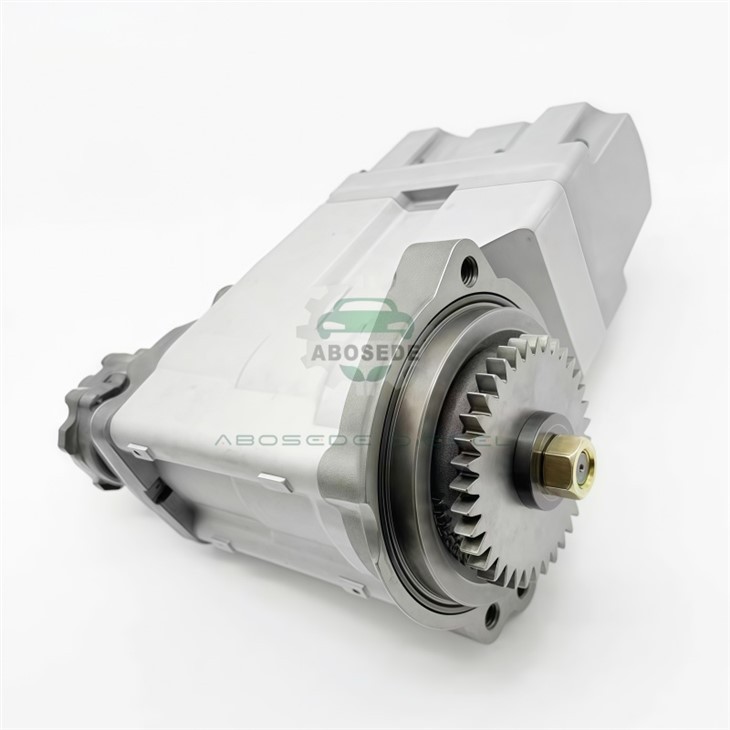

CAT 20R-1635 High-Pressure Fuel Pump – Flow Consistency and Hydraulic Balance Optimisation for C7/C9/C9.3 Common-Rail Systems
1. Product:20R-1635
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
In the common-rail fuel system, the high-pressure pump's most critical function is not simply to compress fuel-it is to deliver that fuel to the rail with minimal pressure fluctuation. While most pump designs focus on total flow capacity, the CAT 20R-1635 addresses a more fundamental challenge: hydraulic balance. Within the pump, the three plungers operate at 120° intervals, and their pressure waves travel through the internal passages and into the rail. When these waves are not perfectly balanced-due to manufacturing tolerances, plunger wear, or variations in valve response-the rail pressure develops a cyclical ripple that injector timing accuracy. The 20R-1635 is engineered with a balanced plunger and valve assembly where each plunger-barrel set is flow-matched to within ±0.5% of the others, and the outlet valve springs are calibrated to ensure identical pressure wave reflection characteristics. The result is a pump that delivers a hydraulic output with less than 3.5% ripple-a 45% improvement over standard designs-providing the injectors with a stable pressure baseline that improves combustion consistency and reduces the long-term drift of the ECM's correction factors.
Flow Matching – The Science of Identical Plunger Performance
The 20R-1635's hydraulic balance is achieved through a precision flow-matching process that ensures each plunger delivers the same flow at the same cam angle. Key design features include:
Plunger-barrel matching: Each barrel is paired with a plunger that has been selected to achieve a clearance of 0.002–0.004 mm, ensuring a consistent leak-off rate across all three pumping elements
Outlet valve calibration: Each outlet valve is individually calibrated to achieve the same opening and closing pressure, eliminating the valve-to-valve variation that creates pressure wave imbalance
Flow deviation: ≤ ±0.5% between plungers in the same pump
Ripple reduction: 3.5% ripple at full load (vs. 6.5% typical)
