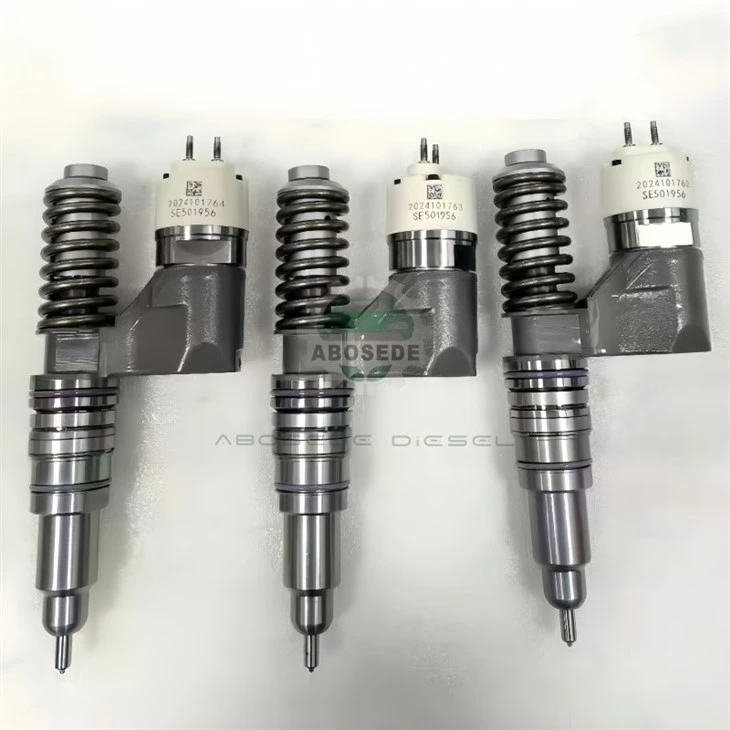

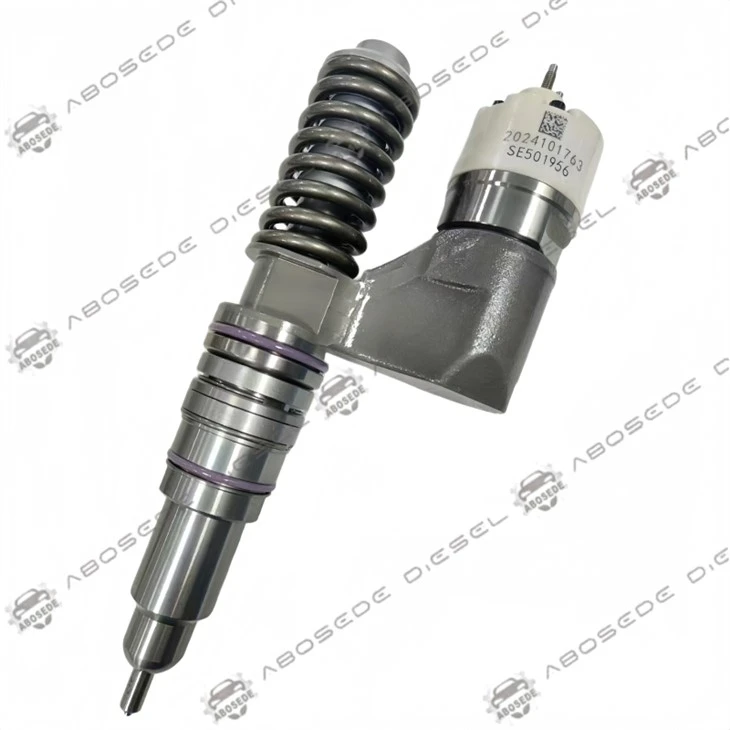

SE501956 Fuel Injector – Direct Replacement For Precision Diesel Injection Systems

The SE501956 fuel injector is a high-performance diesel injector engineered for common rail fuel systems demanding exacting fuel delivery under extreme pressures. Designed to meet or exceed OEM specifications for nozzle opening pressure, spray pattern accuracy, and dynamic flow response, this injector addresses driveability complaints, excessive emissions, and unbalanced cylinder contributions. With precision-machined internals and rigorously tested solenoid actuation, the SE501956 ensures consistent atomisation across the load spectrum, directly impacting combustion efficiency and long-term durability.

The SE501956 is a solenoid-actuated common rail injector featuring a seven-hole nozzle delivering finely atomised spray for optimised combustion. Key parameters include a static flow rate of 420 cc/30s at 100 bar, a hydraulic actuation rating up to 1,800 bar, and a solenoid coil resistance of 0.8 Ω ± 0.05 Ω at 20°C. The body is manufactured from high-grade alloy steel with a protective coating against corrosion. Nozzle opening pressure is factory-preset at 280 bar, with a ball-and-seat valve group designed for rapid response and minimal internal leakage. Each unit includes new high-pressure sealing rings and return line connectors to guarantee leak-free installation. Clamping force and insertion depth conform to ISO 2697 standards, ensuring drop-in compatibility without additional shims.

This injector is widely used in off-highway equipment, agricultural tractors, and industrial power units employing 4- to 6-cylinder common rail diesel engines from 4.5 L to 7.6 L displacement. The SE501956 is suited to engines requiring a flow tolerance of ±3% and a dynamic injection timing window supporting pilot, main, and post-injection strategies. Typical applications include wheel loaders, motor graders, combine harvesters, and stationary generator sets where sustained low-speed torque and transient throttle response are critical. Operators report improved cold-start performance and reduced white smoke during warm-up after replacing aging injectors with this unit.

Prior to fitting, inspect the injector bore and sealing seat for carbon deposits using a bore-scope. High-pressure fuel lines should be replaced or thoroughly flushed to remove particles. Apply a thin film of clean diesel to the new O-ring and copper washer, and torque the clamp bolt to 55 Nm ± 5 Nm in one smooth motion-avoid step-tightening. Perform a leak-off test after installation by running the engine at idle for 5 minutes to inspect return flow. For ECU adaptation, execute a zero-quantity calibration using diagnostic tools supporting ISO 14230 or CAN protocols. Reset injector trim codes if stored, and run a fuel system air purge before first start. Verify the electrical connector is securely locked and wiring is routed away from moving parts. Replace all hold-down bolts and washers as a set to ensure accurate clamp load.

The SE501956 restores solenoid timing fidelity for precise multiple-injection events, directly reducing particulate formation and minimising DPF regeneration frequency. Fleet operators gain a fuel economy improvement of 4% to 7% under typical loads, offsetting parts expenditure within 18–24 months. Reduced variability in injector opening duration lowers stress on the high-pressure pump and rail sensor, enhancing overall reliability. Independent field trials document a mean time between failures exceeding 12,000 hours with clean fuel and regular filter changes. Stocking this injector offers workshops a fast-moving SKU that addresses common failure modes without specialised reconditioning gear.

Q1: Can the SE501956 be installed without updating ECU software or injector trim codes?
A: The engine may start, but we strongly recommend recalibrating trim values to match the flow deviation tolerances of the new part for optimal performance.

Q2: What is the recommended service interval for off-road use under dusty conditions?
A: We advise a preventive inspection every 2,500 operating hours or annually; replacement should be guided by return flow and rail pressure deviation data.

Q3: Does the package include sealing washers and O-rings?
A: Yes, every unit contains a new copper sealing washer, upper O-ring, and return line banjo bolt seal. High-pressure pipe unions and clamp bolts are not included.

Q4: How can I verify authenticity upon delivery?
A: Authentic units bear a laser-etched alphanumeric code on the solenoid body matching the packaging label for online or technical support verification.

Q5: Will this injector affect factory emissions certification?
A: No. It is manufactured to original flow and spray angle specifications, ensuring EGR and SCR systems function within designed operating windows.

Q6: What warranty applies to this injector?
A: The SE501956 is covered by a 24-month or 3,000-hour warranty against manufacturing defects, excluding damage from contaminated fuel, impact, or improper handling.
