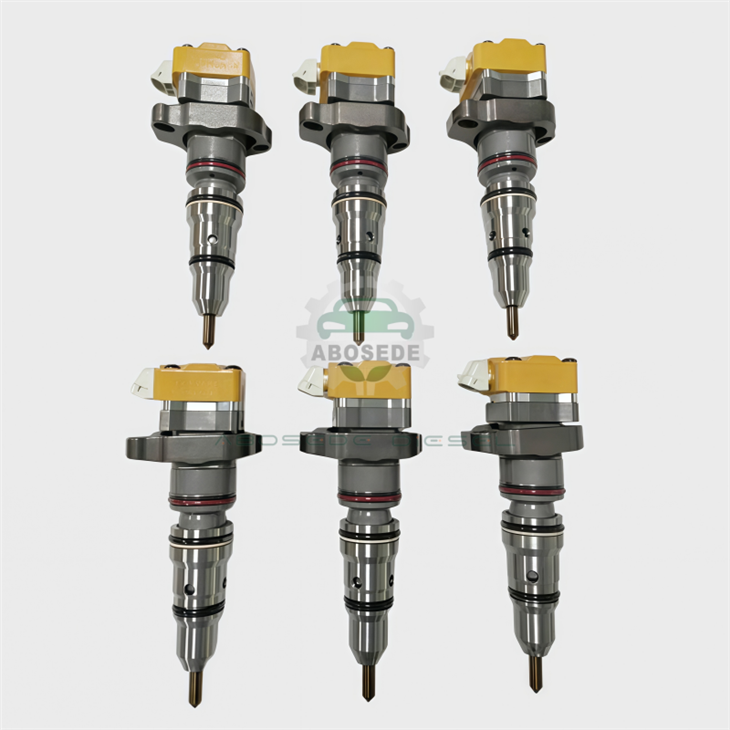

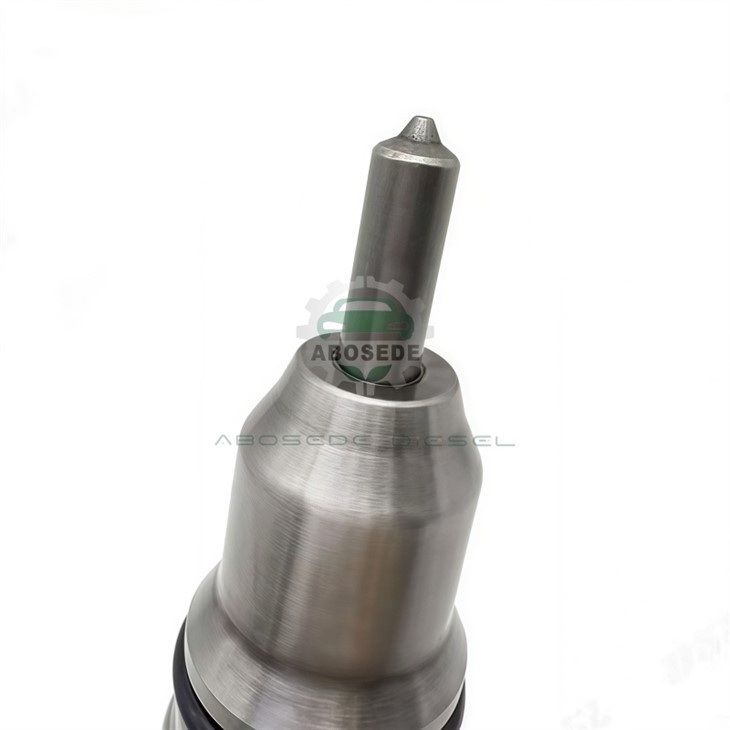

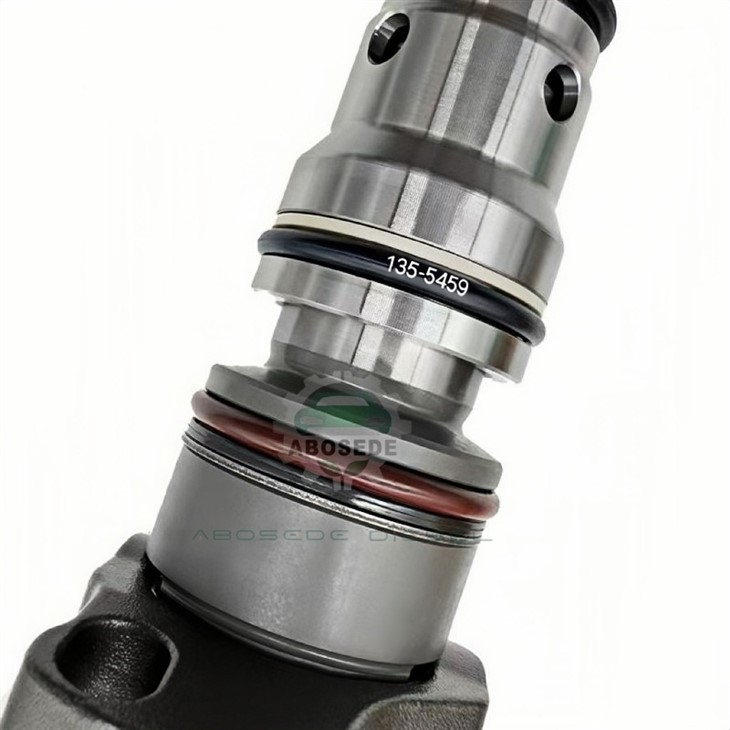

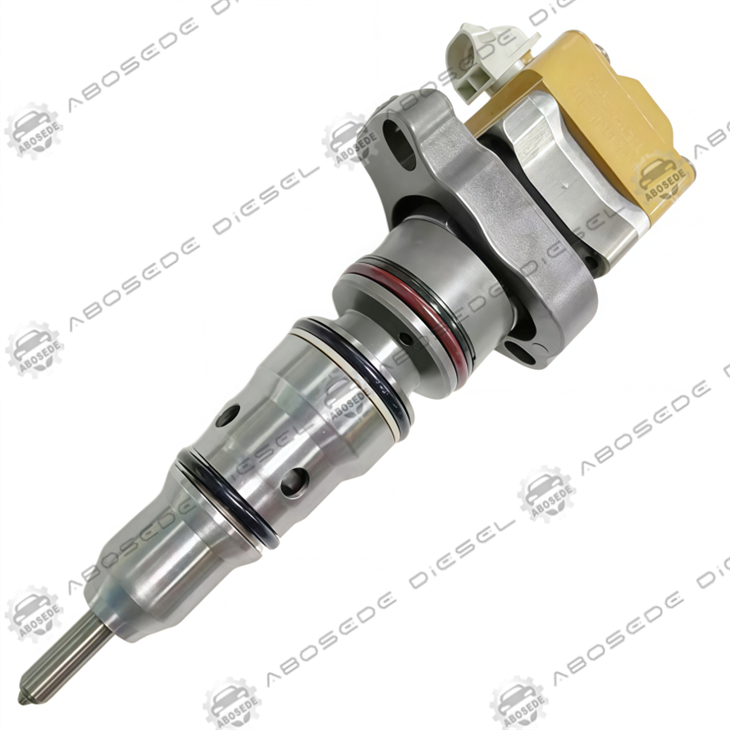

CAT 135-5459 HEUI Injector | Precision-Fueled Performance for C9, C11, C13 & C15 Engines | Optimized P/I Curve & Enhanced Durability
1. Product:135-5459
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
In the high-stakes environment of heavy-duty diesel combustion, the fuel injector is not merely a component; it is the metronome of power delivery. The CAT 135-5459 HEUI (Hydraulically actuated Electronically controlled Unit Injector) represents a critical intersection of hydraulic amplification and digital timing. Unlike generic replacements that merely fit the cylinder head, this unit is calibrated to interpret the Engine Control Module's (ECM) pulse width with microscopic fidelity. For operators of Caterpillar C9, C11, C13, and C15 power plants, this injector defines the boundary between standard operation and optimized thermodynamic efficiency. We move beyond the conventional "new vs. reman" debate to focus on the actuation response lag-a metric that directly impacts black smoke reduction and throttle responsiveness under variable load conditions
Technical Data & Hydraulic Flow Metrics
|
The operational efficacy of the 135-5459 is quantified through rigorous flow bench testing, ensuring each unit meets a tolerance window of ±3% across all six plunger stroke positions. Key technical specifications include: Actuation Pressure: 23,000 psi (peak) with a consistent pilot injection dwell. Flow Rate: 295 cc/min at 100 strokes, utilizing a 7-hole nozzle with a 155° spray angle for optimal piston bowl penetration. Resistance: Solenoid coil resistance maintained at 0.6 ohms ± 5% to ensure dwell accuracy. Lift Setting: Plunger lift is factory-preset to 0.205 inches, mitigating the risk of piston impingement. |
|---|
The "P/I" Duty Cycle Logic
A significant differentiator in this injector variant is its specific Programming/Injection (P/I) duty cycle mapping. These injectors are not "plug-and-play" in the traditional sense; they require the ECM to recognize the specific "Trim File" or "Personality Module" associated with the 135-5459 serialization. This ensures that the Actuation Pressure Time (APT) is precisely synchronized with the engine speed. By optimizing the intensifier piston ratio, this injector reduces parasitic drag on the high-pressure oil pump (HPOP), translating to a 2-3% improvement in fuel economy during long-haul applications when compared to aftermarket alternatives lacking this specific flow curve.
