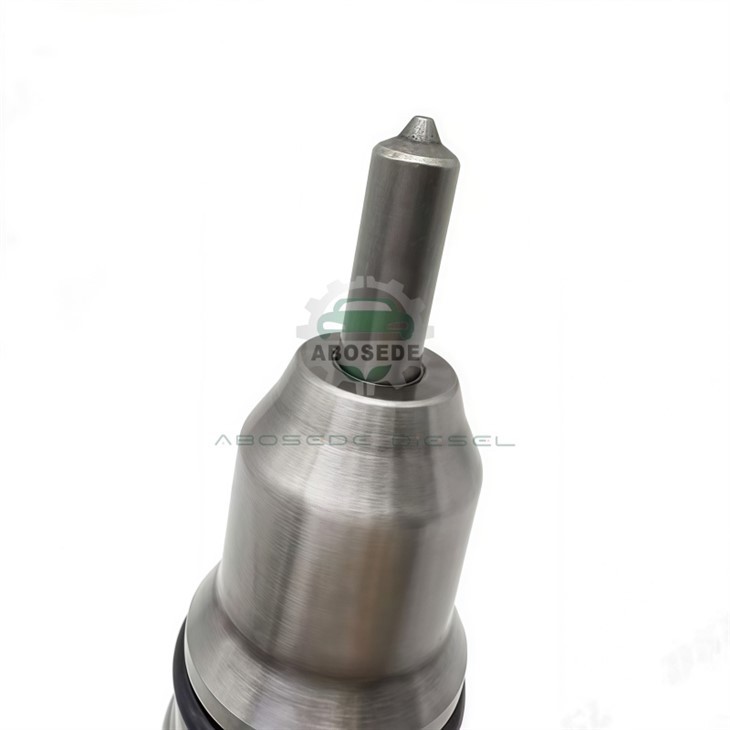

128-6601 CAT Mechanical Unit Injector – Non‑Rotating Plunger Geometry for Steady‑State Industrial and Marine Diesel Engines | OEM Direct Replacement
1. Product:128-6601
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
In marine propulsion and stationary generator applications, engine speed rarely varies-it remains fixed at a governed RPM for hours, sometimes days, at a time. Under these steady‑state conditions, the rotating plunger design used in on‑highway mechanical injectors (like the helix‑controlled 116‑3526) offers no advantage; in fact, the rotating mechanism introduces additional wear points and potential for timing drift. The 128‑6601 injector takes a different approach: it uses a non‑rotating plunger with fixed, precisely ground ports that control the injection timing and quantity. This design eliminates the mechanical linkages needed for helix rotation, reducing internal friction and improving long‑term consistency in applications where the engine spends most of its life at a single speed. For operators of Caterpillar 3400 series marine engines, industrial generator sets, and pump drives, this injector provides a robust, low‑maintenance solution that delivers reliable fuel metering hour after hour, with fewer moving parts and less potential for wear‑related timing changes.
📊 Technical Data – Fixed‑Plunger Parameters
| Parameter | Specification |
|---|---|
| Part Number | 128‑6601 (Caterpillar) |
| Technology | Mechanical unit injector – non‑rotating plunger |
| Peak Injection Pressure | 310 bar (4,500 psi) – nominal |
| Plunger Diameter | 8.0 mm (±0.002 mm) |
| Plunger Stroke | 7.2 mm (camshaft‑limited) |
| Plunger Type | Fixed‑port – no helix or rotation |
| Nozzle Type | Multi‑hole – 6 × ø0.28 mm orifices |
| Spray Cone Angle | 122° (±2°) – fixed geometry |
| Needle Lift | 0.34 mm (mechanical stop) |
| Fuel Delivery | Fixed per stroke (no variable rack control) |
| Nozzle Opening Pressure | 255 ± 10 bar (factory‑set) |
| Internal Leakage | ≤ 0.18 cc/min (plunger‑barrel clearance) |
| Connection | Mechanical high‑pressure line (JIC flare) |
⚙️ The Fixed‑Plunger Design – Steady‑State Precision Without Complexity
The 128‑6601's plunger is mechanically simpler than the helix‑controlled design used in variable‑speed applications:
No rotation – Unlike the 116‑3526, which rotates the plunger to vary the effective stroke, the 128‑6601's plunger remains in a fixed orientation. The injection timing and fuel quantity are determined entirely by the geometry of the ports in the plunger and barrel. This eliminates the fuel rack, governor linkage, and synchronisation procedures required for rotating‑plunger injectors.
Fixed metering ports – The plunger has a series of precisely machined ports that open and close as the plunger moves. The timing of the port opening determines the start of injection; the port closing determines the end. Because these ports are fixed, the injection timing is consistent from cycle to cycle, regardless of engine load or fuel temperature.
Why this works for steady‑state applications : In a generator set or marine engine, the load changes slowly (if at all). There is no need for the rapid fuel adjustments that a rotating plunger provides. The fixed‑plunger design reduces internal wear because there are no rotating parts in the injector body, and the fuel metering is more consistent because there are fewer mechanical variables.
Durability benefit : With fewer moving parts, the 128‑6601 typically experiences less internal wear than rotating‑plunger injectors. The plunger‑barrel clearance is the primary wear point, and it is minimised through the use of precision‑honed, diamond‑lapped surfaces.
