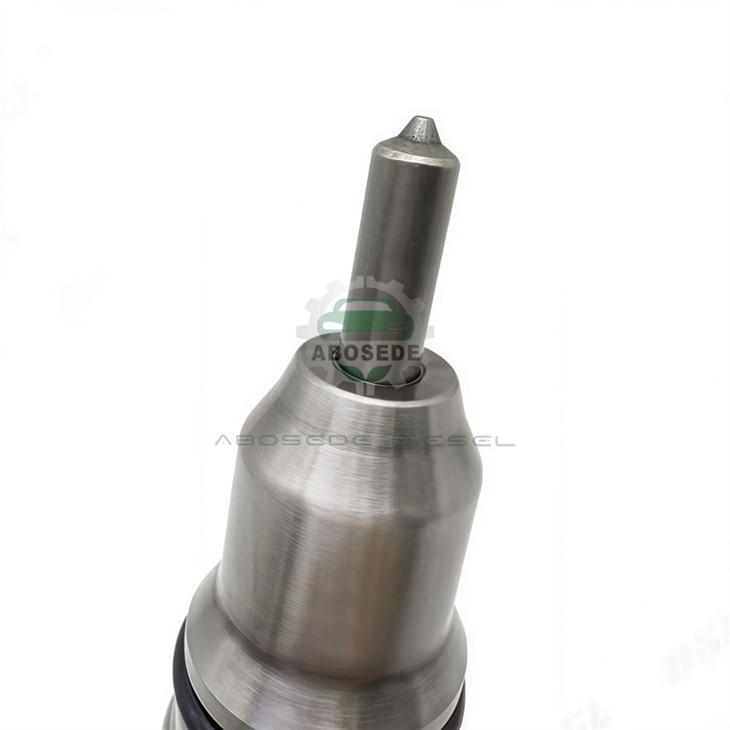

CAT 3126 Diesel Injector 116-3526 – High-Pressure HEUI/Common Rail Injection Component For Caterpillar 7.2L Engine | OEM Performance Replacement
1. Product:116-3526
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Unlike generic injector descriptions, the 116-3526 injector should be understood as a precision-controlled energy conversion node inside the diesel injection system-not just a "fuel delivery part." In the Caterpillar Inc. 3126 platform, injection is tightly coupled with combustion phasing, emissions output, and torque efficiency.
Designed for the 7.2L inline-6 Caterpillar 3126 diesel engine, this injector integrates with electronically managed systems (HEUI or hybrid high-pressure injection architecture depending on configuration), enabling accurate diesel atomization under extreme load cycles.
📊 Technical Data & Injection Characteristics
| Parameter | Specification |
|---|---|
| Part Number | 116-3526 |
| Injection Type | Electronically controlled (HEUI / hybrid system) |
| Operating Pressure | Up to ~20,000+ psi (hydraulic amplification dependent) |
| Control Method | ECU-driven solenoid actuation |
| Material | High-speed alloy steel |
| Calibration | Flow-balanced, multi-hole nozzle |
| Testing | 100% spray & flow bench validation |

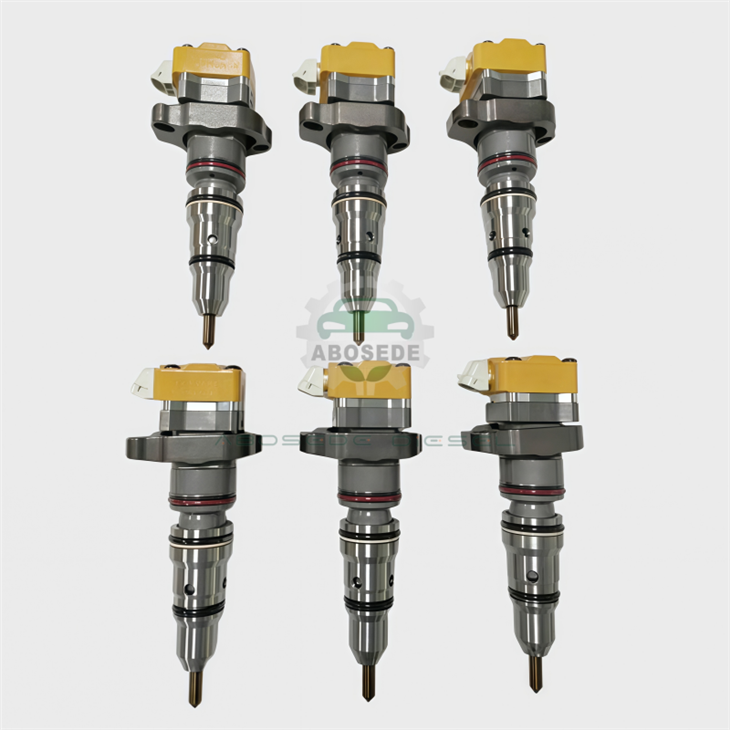

✔ Each injector is flow-matched to ensure uniform combustion across all cylinders, reducing vibration and thermal imbalance.
💡 Injection Physics & Combustion Efficiency
From a thermodynamic standpoint, the 116-3526 injector influences:
Droplet size distribution (SMD)
Penetration depth vs. swirl interaction
Ignition delay in high-compression diesel cycles
Instead of simply delivering diesel, it performs micro-second pulse modulation, shaping combustion pressure curves.
👉 This is especially critical in the 3126 engine, which operates under varying torque demands and compression ratios between 16:1–17.25:1.
