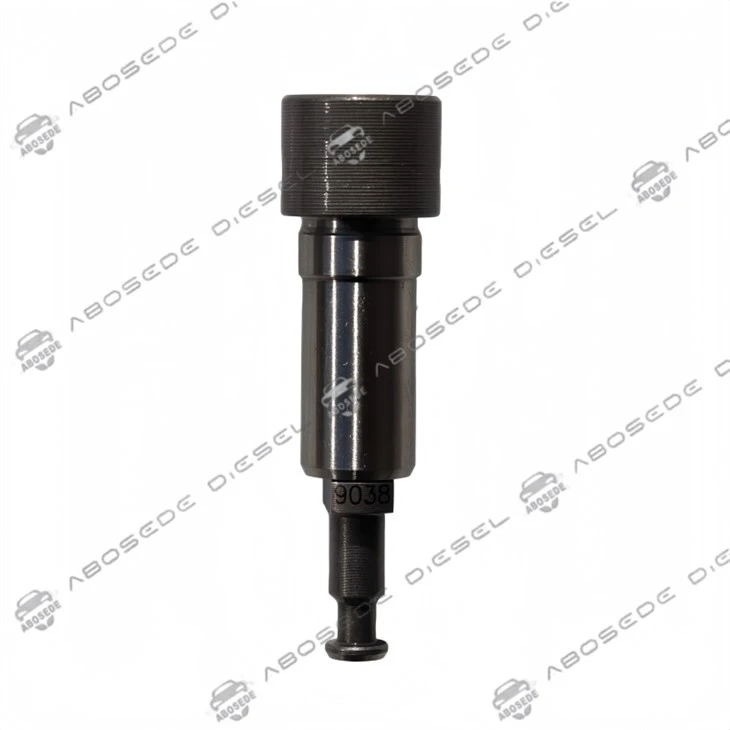

Fuel Injection Pump Plunger Element 9412038416 | Bosch Precision Pump Assembly

The Bosch 9412038416 fuel injection pump plunger element serves as a critical precision component within diesel injection systems, delivering metered fuel at pressures exceeding 1,200 bar to meet stringent emission and performance requirements. This pump element is engineered to restore hydraulic integrity in pumps suffering from fuel delivery inconsistencies, hard starting, and power loss attributed to plunger and barrel wear. As a direct-fit replacement for select PES6A pump configurations, it provides diesel repair facilities with an efficient alternative to complete pump replacement, addressing the root cause of injection timing drift and uneven cylinder fueling.

The 9412038416 plunger element conforms to Bosch's original manufacturing tolerances, with the plunger and barrel matched as a precision pair to maintain hydraulic density under elevated thermal loads. Each unit undergoes individual lapping to achieve clearances measured in microns, ensuring consistent fuel delivery across the full range of pump operating speeds. The component is rated for diesel fuel applications and is compatible with both conventional and low-sulfur formulations when appropriate lubrication additives are present. Its helix geometry is calibrated to the original injection timing curve, preserving the engine manufacturer's fuel delivery map without recalibration.

This injection pump element is designed for diesel engines equipped with PES6A inline pump architectures, commonly found in agricultural tractors, industrial power units, and light commercial vehicles operating in regions where mechanical injection systems remain prevalent due to their serviceability and tolerance for varied fuel quality. The 9412038416 cross-references to applications requiring PES6A100D320RS3503 pump identification. Fleets running older diesel engines in off-highway and stationary power roles benefit most from this component, as these platforms prioritize rebuildability over replacement. Repair shops servicing Bosch inline pumps should maintain stock of this plunger element to reduce turnaround time for customers dependent on equipment uptime.

Successful installation of the 9412038416 plunger element demands strict adherence to cleanliness protocols, as particulate contamination between the plunger and barrel surfaces will induce scoring and premature fuel leakage. The precision pair must be installed as a matched set without interchanging individual components from other elements, as the lapping process creates a unique fit. Prior to reassembly, coat the plunger with clean diesel fuel to facilitate initial movement and verify free travel through the barrel bore. The return action should exhibit a distinct snap, indicating proper clearance without binding. During pump reassembly, follow the manufacturer's torque sequence for the hydraulic head and verify plunger bottom clearance with a dial indicator to preserve injection timing. Any resistance or sluggish movement during the pre-installation check warrants rejection of the element, as field failures from sticking plungers often trace back to improper handling before installation.

In the current diesel service landscape, the decision between replacing a complete injection pump versus rebuilding with new pump elements hinges on cost-per-hour calculations that repair shops must present to fleet managers. A pump exhibiting reduced fuel delivery from plunger wear may still have serviceable camshaft, housing, and governor components, making component-level repair economically compelling. Studies of plunger pair degradation show that hydraulic density loss directly correlates with injection timing delay and increased particulate emissions, issues that affect compliance and fuel economy. By replacing only the worn plunger element, the repair facility restores original fuel delivery characteristics at a fraction of complete pump replacement cost. This approach also addresses the root tribological failure rather than masking symptoms through external adjustments. For high-mileage diesel engines where multiple pumps require service, stocking 9412038416 elements enables batch rebuilding programs that lower per-unit repair costs substantially.

Q1: Can I install 9412038416 without recalibrating the injection pump on a test bench?
A: If the pump's governor and timing mechanisms are undisturbed, and the replacement element matches the original specification, bench recalibration may be unnecessary. However, verification of fuel delivery uniformity across all cylinders is recommended.

Q2: What fuel quality conditions accelerate wear on this plunger element?
A: High sulfur content, water contamination, and abrasive particulate matter below 2 microns accelerate plunger and barrel wear. Regular filter changes and fuel polishing extend service life significantly.

Q3: Is 9412038416 compatible with biodiesel blends?
A: B20 and lower blends are generally acceptable if the fuel meets lubricity specifications. Higher blend ratios may require plunger surface treatments not present in standard elements.

Q4: How do I verify hydraulic density before installation?
A: Perform a manual movement test: the plunger should slide freely through the barrel under its own weight when wetted with diesel, with no catch points or excessive clearance feel.

Q5: What symptoms indicate plunger element replacement is needed?
A: Erratic idle, misfire under load, hard cold starting, and fuel knock suggest fuel delivery inconsistency. Bench testing that reveals uneven cylinder outputs confirms plunger wear.

Q6: Does this element require special break-in procedures?
A: No extended break-in is necessary. Initial operation at moderate loads for the first few hours allows the plunger and barrel surfaces to stabilize without thermal shock.
