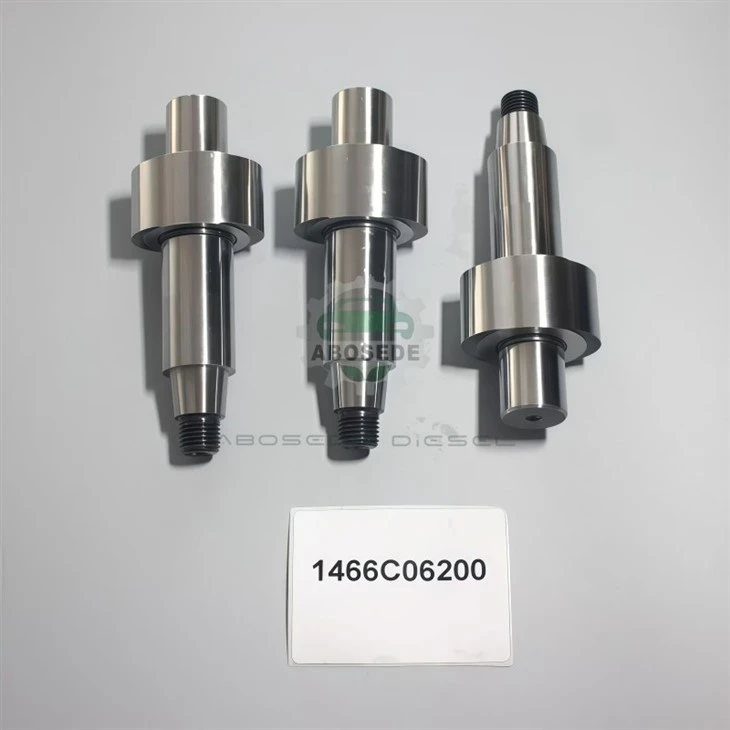

CP4 Camshaft 1466C06200 | OEM High-Pressure Fuel Pump Cam

The CP4 Camshaft 1466C06200 is a precision-ground replacement component engineered for the Bosch CP4 high-pressure fuel pump, a core element in contemporary diesel common rail architectures. This camshaft is manufactured to exacting OEM tolerances to ensure the precise lobe actuation required for generating the extreme rail pressures-consistently exceeding 30,000 psi-that enable optimal atomization and combustion efficiency in modern heavy-duty powerplants. As a high-wear internal rotating assembly part, the metallurgical integrity and surface finish of this camshaft directly influence pump longevity and the overall cleanliness of the fuel delivery circuit.

The CP4 Camshaft 1466C06200 is forged from case-hardened chromium-molybdenum alloy steel, heat-treated to achieve a deep case hardness profile that resists spalling and pitting under cyclic loading. Its ground lobe profile features specific lift and duration characteristics calibrated exclusively for the CP4.2 pump architecture, with micro-finished bearing journals that operate with clearances measured in microns. The camshaft's drive gear interface incorporates a precision keyway or spline arrangement that maintains angular orientation relative to the pump drive train, ensuring that plunger stroke timing remains synchronized with engine rotation. This component's surface roughness parameters are controlled to sub-micron levels, as the CP4 pump relies entirely on the lubricity of the diesel fuel passing through it for hydrodynamic film formation between the cam lobes and roller followers.

This replacement camshaft services the Bosch CP4.2 pump variant extensively deployed across North American light-duty and medium-duty diesel truck platforms. Primary applications include the Ford 6.7L Power Stroke (model years 2011 through current), the GM 6.6L Duramax LML and L5P engine families, and the Ram 3.0L EcoDiesel V6 . The CP4.2 pump, identified by its two-plunger architecture, is mounted within the engine valley on these V8 configurations and driven directly from the camshaft gear train. For diesel repair facilities, this part number is routinely requisitioned when performing internal pump overhauls on high-mileage service trucks, agricultural equipment using these powerplants, and commercial van fleets where fuel system degradation is commonly observed beyond the 150,000-mile service interval.

Successful installation of the CP4 Camshaft 1466C06200 requires strict adherence to factory timing procedures, as misindexing the camshaft relative to the pump gear produces immediate rail pressure deviations or mechanical interference. The pump must be removed from the engine valley, the gear cover dismounted, and the drive gear retaining bolt loosened to allow gear separation from the camshaft taper. A timing pin or alignment dowel must be inserted through the pump housing port to lock the camshaft at the correct rotational position-typically with the engine crank at a specified degree before top dead center on the compression stroke . The gear-to-camshaft relationship must be re-established using the manufacturer's published angular offset values, followed by torque application to the retaining fastener using a calibrated wrench in multiple incremental stages. Post-installation, the pump must be primed with clean fuel and the high-pressure lines bled before attempting engine start, as dry running will rapidly score the new camshaft surface.

The strategic importance of replacing a degraded CP4 Camshaft 1466C06200 centers on preventing secondary damage propagation throughout the common rail fuel system. The CP4 pump's internal architecture lacks a dedicated lubrication circuit; all moving components-including the camshaft, roller followers, and plungers-depend on the fuel itself for boundary lubrication. When fuel quality degrades or water contamination occurs, the camshaft lobe surfaces experience accelerated adhesive wear, generating microscopic ferrous particles that migrate downstream. These particles embed in injector metering orifices, abrade rail pressure control valves, and compromise the flow characteristics of the fuel pressure regulator . Timely camshaft replacement, performed when early warning signs such as elevated rail pressure ripple or metallic residue in the fuel return line manifest, prevents a cascading failure scenario that would otherwise require complete system overhaul-including injector replacement, rail flushing, and high-pressure line renewal.

Q1: What diagnostic clues suggest CP4 camshaft wear before complete pump failure occurs?
A: Key precursors include intermittent low rail pressure codes (P0087) under load, audible metallic ticking from the pump housing at idle, and visible ferrous particles trapped in the fuel metering valve screen. Fuel return flow rates exceeding specification also indicate internal clearance degradation.

Q2: Is this camshaft compatible with both CP4.1 and CP4.2 pump variants?
A: This 1466C06200 is specifically dimensioned for the CP4.2 two-plunger pump. The CP4.1 variant, used in some European applications, features different lobe geometry and bearing journal sizes, making cross-application incompatible.

Q3: Can a new camshaft be installed without replacing the roller followers?
A: Professional practice mandates simultaneous replacement of the roller followers and their retaining clips. Worn followers exhibit irregular surface profiles that will rapidly damage a new camshaft lobe finish, compromising the replacement investment.

Q4: How does fuel water contamination specifically affect this component?
A: Water separators that have been bypassed or saturated allow free water to pass through the pump. Water reduces fuel lubricity and promotes localized rust pitting on the camshaft lobe surfaces, accelerating wear rates substantially compared to dry fuel operation.

Q5: What is the recommended post-repair validation procedure after camshaft installation?
A: After assembly, perform a full rail pressure bleed, then conduct a cranking rail pressure test to verify achievement of minimum starting pressure (typically above 4,500 psi). A road test under varying load conditions should confirm stable commanded vs. actual rail pressure values across the operating range.
