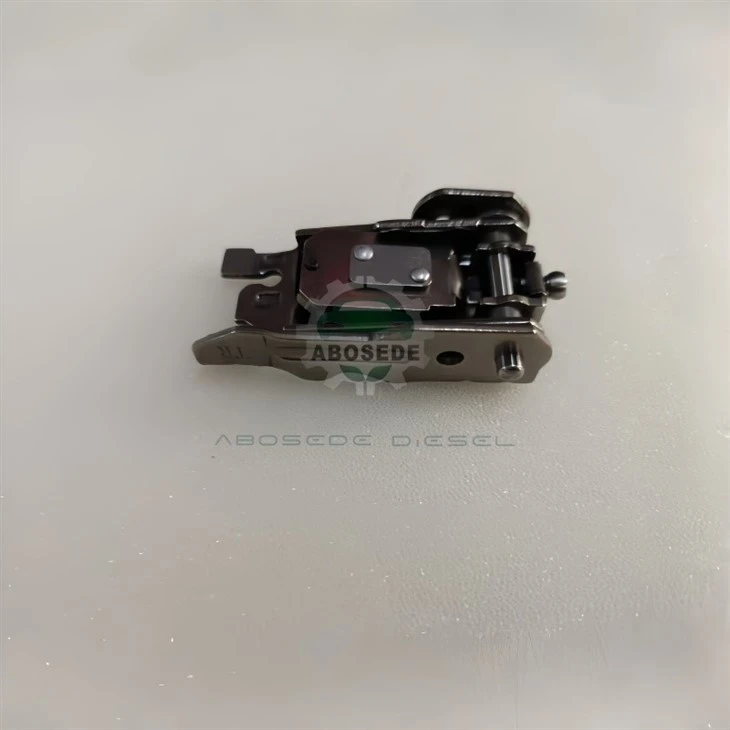

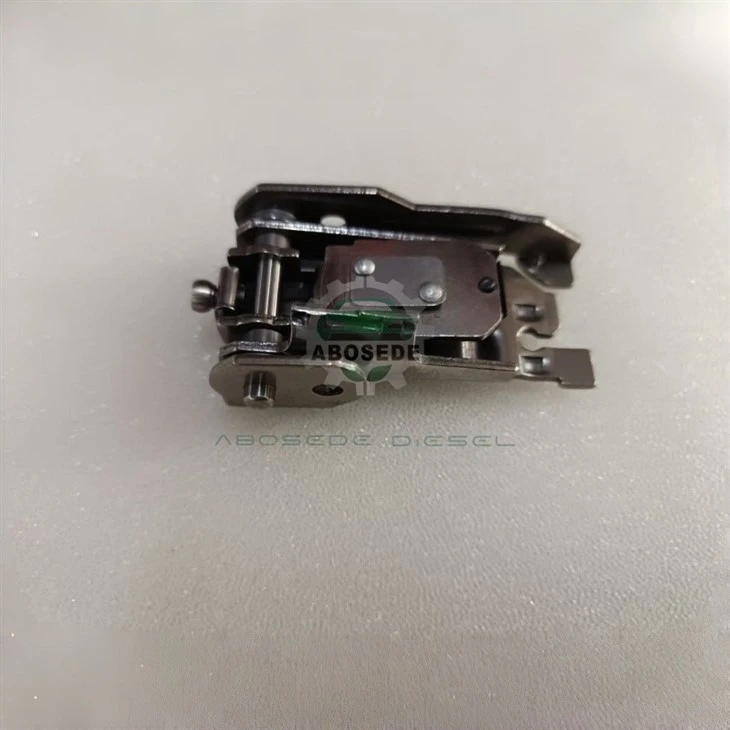

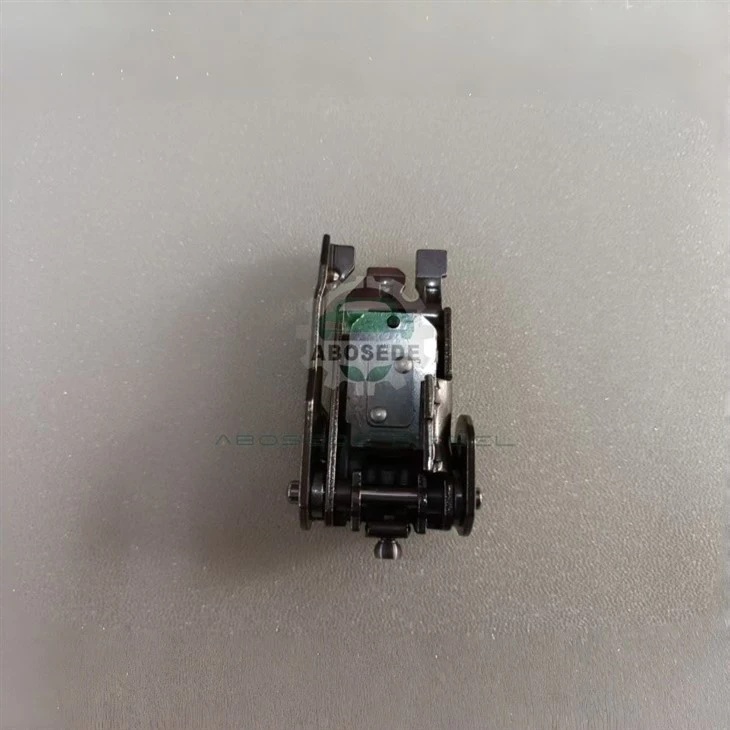

146551-9820 Governor Bracket: The Geometry Part Nobody Checks Until Idle Won't Settle

In a governor system, the bracket is rarely the part that wears out - it is the part that decides whether every other part can be measured. The 146551-9820 Governor Bracket positions the governor lever relative to the pump housing, and that single positional relationship fixes lever ratio, pivot clearance and the return spring preload that the rest of the fuel control loop depends on. When idle will not settle or rack travel feels non-linear, this bracket is usually checked last and should be checked earlier. Its role is structural and geometric, not frictional; it holds the reference frame for governor response.

The bracket carries the governor lever pivot and anchors it to the pump housing face. It does not meter fuel itself, but it defines the arc along which the lever travels. Change the pivot position by even a fraction of a millimetre and the relationship between governor sleeve movement and rack movement shifts across the whole operating range. That is why the 146551-9820 Governor Bracket belongs in the calibration conversation, not only in the replacement-parts catalogue.

Three geometric values matter. Pivot-to-rack distance sets the lever ratio and therefore how aggressively the governor corrects speed. Pivot height relative to the sleeve axis determines whether the lever sweeps symmetrically or loads one side of the rack. Pivot bore clearance defines the free play that appears as idle hunt and as non-repeatable rack position. A bracket that is dimensionally correct but installed with uneven flange torque can distort the bore and reduce clearance, which is why mounting sequence belongs in the specification.

Flange flatness, bolt torque and tightening sequence control whether the bracket seats without stress. Shim or spacer presence must follow the pump build, since the bracket's axial position affects lever alignment with the sleeve. Lever-to-rack engagement depth should be measured after installation, not assumed. Return spring anchor position must match the build code; an anchor moved one hole changes idle preload and can make a healthy governor look faulty.

Technicians trained on common rail look for electrically commanded pressure and metering valve response. This bracket has no electrical signal, but the diagnostic logic transfers: an actuator whose mechanical linkage has free play produces non-linear response that no software correction can remove. On the pump side, that free play appears as unstable idle and sluggish governor recovery; on the common-rail side, the equivalent is a metering valve with worn internal guidance. Both are mechanical reference errors, and both are verified by measuring, not by replacing.

Q1: Is the 146551-9820 Governor Bracket a wear item?
It is a reference item. It wears slowly at the pivot bore and contact pad, but its main failure mode is distortion or incorrect installation, not friction.

Q2: Can a worn bracket bore really cause idle hunt?
Yes. Free play at the pivot lets lever position vary under load, producing idle instability that mimics governor spring fatigue. Measure bore clearance before replacing the spring.

Q3: Does bolt torque on the bracket affect governor response?
It can. Uneven torque distorts the flange and closes pivot clearance. Follow the specified sequence and record the value used.

Q4: How is this different from a common-rail linkage fault?
The principle is identical: mechanical free play creates non-linear actuator response that calibration cannot mask. The difference is only the actuator being commanded.

Q5: What should be measured before ordering a replacement?
Pivot bore diameter, flange flatness, lever engagement depth and spring anchor position, all compared against the pump build code.

Q6: Should the bracket be replaced whenever the governor is serviced?
Replace it when bore clearance or flange condition exceeds specification. Otherwise inspect, record the measurements and reuse with the correct installation procedure.
