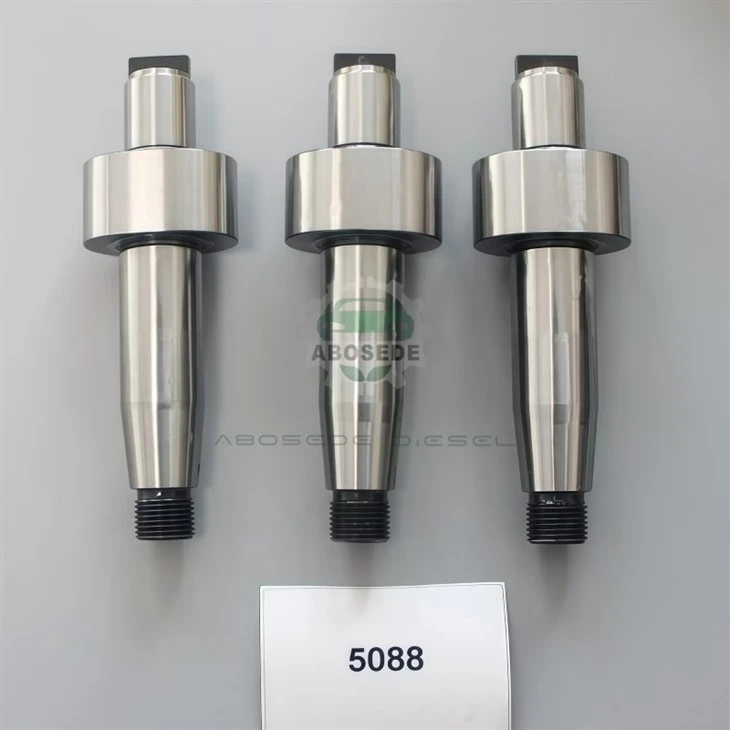

CP4 Camshaft 5088 High-Pressure Fuel Pump | Bosch Replacement Part

The CP4 Camshaft 5088 is a precision-machined rotating component engineered to restore pressurization integrity in Bosch-generation common rail fuel systems. Designed as a service-grade alternative to OE shaft assemblies, this unit directly addresses lobe degradation and roller bearing fatigue-two dominant failure modes in CP4.1 and CP4.2 pump architectures. Workshops dealing with intermittent start complaints, prolonged crank cycles, or rail pressure undershoot during load transitions will find this camshaft a viable, cost-conscious remedy that avoids complete pump head replacement.

Manufactured from case-hardened chromium-molybdenum steel, the CP4 camshaft 5088 undergoes induction tempering to achieve a surface hardness of 58–62 HRC across its three drive lobes. Each lobe profile is CNC-ground to within ±0.002 mm of Bosch's original blueprint, ensuring precise plunger lift timing and consistent volumetric delivery per pump revolution. The bearing journals are micro-polished to an Ra finish of 0.2 µm, reducing friction against the pump housing bushings during high-speed rotation. Unlike aftermarket blanks that skip post-grinding stress relief, this 5088 camshaft receives a cryogenic treatment cycle to stabilize molecular structure, minimizing distortion under thermal cycling from –20°C to 120°C. The drive gear interface uses a spline-fit configuration with a central M12 bolt hole, matching factory torque specifications of 80 Nm + 90° angle-tighten. Weight is held at 1.42 kg, balancing rotational inertia against quick throttle response in electronic-controlled pump heads.

This CP4 pump camshaft fits all Bosch CP4S1, CP4S2, and CP4.2 variants used in 3.0L V6 TDI (VW/Audi/Porsche), 4.4L V8 Diesel (BMW N57), and 3.6L V6 Power Stroke (Ford F-150) applications. It also supports the Cummins ISB 6.7L and Mercedes OM642 platforms where CP4 pumps were factory-fitted between 2011–2019. For repair shops, cross-referencing the pump serial number (stamped on the housing flange) against our application chart eliminates return delays. This shaft is not backward-compatible with CP3 or Denso HP4 systems; do not substitute for pre-2010 CP1 eccentric-drive assemblies. The 5088 part number supersedes earlier revision A/B shafts, incorporating a wider oil relief groove at the rear journal to improve splash lubrication to the tappet rollers-a known weak point in earlier runs.

Installing the 5088 camshaft demands a contamination-conscious workflow. Drain the fuel gallery and replace the ZME regulator screen if clogged. During extraction, mark the drive gear position relative to the pump shaft to preserve injection timing; failure to index results in a P0087 or P0191 code post-startup. Pre-soak the new shaft in low-sulfur diesel blended with 2% biodiesel for ten minutes-this mimics the operating lubricity of B20 fuel and prevents dry-scuffing during the first 30 revolutions. Torque the central bolt in three increments (40 → 60 → 80 Nm) with a 90° final turn using a stretch-angle gauge. After assembly, run a low-pressure purge cycle via diagnostic tool to expel air from the high-pressure head before cranking. Always log the new shaft's serial number for future warranty traceability.

Investing in a camshaft-only replacement rather than a full pump cartridge yields 40–55% cost savings for the workshop while delivering identical pressure output-provided the plungers and hydraulic head remain within wear limits. This approach also reduces parts waste and aligns with growing demand for sustainable, repair-over-replace service models. Moreover, the CP4 camshaft 5088 allows independent shops to compete with dealership pricing on popular SUV and light-truck fuel system overhauls, particularly for vehicles outside factory warranty. We back every unit with a 12-month unlimited-mileage defect warranty covering lobe delamination and fracture-conditions often excluded by generic import suppliers.

Q1: Does the 5088 camshaft require a matching tappet roller replacement, or can existing rollers be reused?
A: We strongly recommend pairing with new roller tappets. Even minor flat-spotting on old rollers will transfer uneven load to fresh lobes, potentially halving service life. Our kit option includes matched tappets for optimal load distribution.

Q2: How do I distinguish a genuine 5088 from clone shafts that fail within 5,000 miles?
A: Genuine units carry a laser-etched batch code on the rear face and a distinct brownish oxide coating on non-machined areas-clones lack both and often show grinding burn marks near the lobe base.

Q3: Will fitting this camshaft resolve persistent P0087 low-rail-pressure faults without changing the fuel metering valve?
A: Only if the valve's internal screen is debris-free. If you find metal particles in the return line, replace the metering unit simultaneously to avoid recurring pressure drop complaints.

Q4: Can this shaft handle biodiesel blends above B20 without accelerated corrosion?
A: Yes, the chromium-molybdenum base resists acidic byproducts from higher bio content, but we advise a fuel water-separator service every 10,000 miles to prevent emulsified water attack on the hardened surface.

Q5: What torque wrench extension factor applies when tightening through the pump housing access hole?
A: Use a crowfoot adapter; set the wrench to 76 Nm to compensate for the 15 mm offset-this delivers the effective 80 Nm required at the bolt head.
