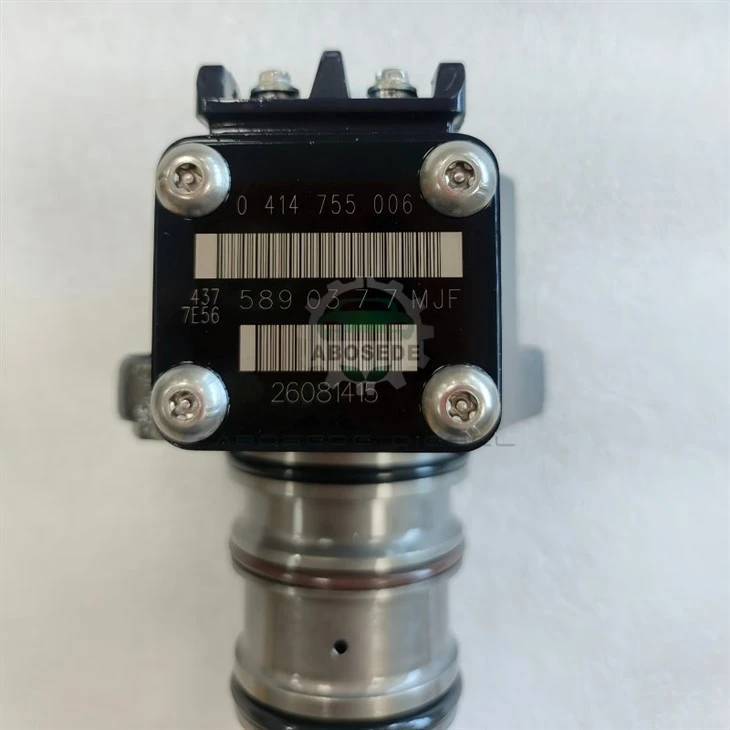

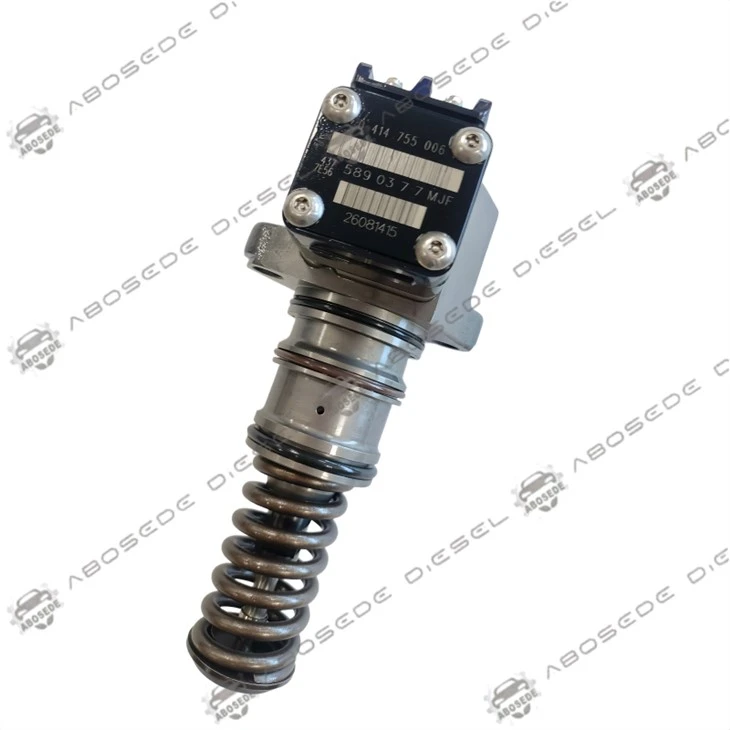

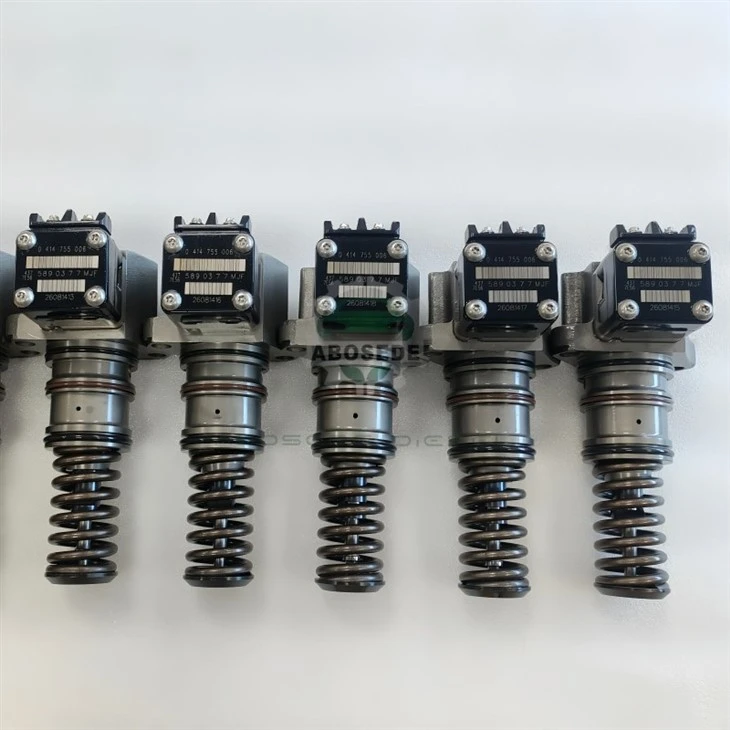

Fuel Injection Unit Pump 0414755006 – Direct Replacement For Bosch EUP Systems

The 0414755006 Fuel Injection Unit Pump is a high-precision Bosch Electronic Unit Pump (EUP) engineered for heavy-duty commercial vehicle applications. Designed to operate at injection pressures reaching up to 2,000 bar, this component serves as a critical element in the diesel common rail system for select Renault, Mack, and DAF truck models. As a direct OEM-style replacement, it restores optimal combustion efficiency, ensures compliance with Euro 3/4/5 emission standards, and addresses common failure patterns associated with high-mileage unit pump systems . This product is essential for workshops and fleet maintenance operations prioritizing reliable, long-term performance in demanding diesel environments.

The 0414755006 unit pump features a hardened steel pump body with a precision-machined plunger design, built to withstand the extreme mechanical stresses of continuous high-pressure fuel delivery. Unlike conventional injectors, this Electronic Unit Pump (EUP) operates independently for each cylinder, a characteristic that distinguishes unit pump systems from common rail architectures where a single pump feeds a shared rail . The 0414755006 achieves operating pressures of up to 2,000 bar, ensuring complete atomization of diesel fuel for optimized power output and reduced particulate emissions . Key technical attributes include a steel compression spring mechanism for precise pressure regulation and a corrosion-resistant valve assembly engineered for durability in harsh operating environments . The unit's construction aligns with rigorous Bosch standards, making it a dependable option for replacing worn components in Renault Magnum, Premium, DAF XF95/CF85, and Mack E7 12.0L engines .

This unit pump is designed to integrate seamlessly with a range of heavy-duty trucks and engines. Primary applications include the Renault Magnum and Premium series, DAF XF95 and CF85 models, and Mack E7 12.0L engines from model years 2000 through 2020 . Additionally, the 0414755006 is applicable to other commercial vehicles utilizing Bosch EUP injection technology, including certain Volvo construction equipment and Deutz D4D engine platforms . It serves as a direct interchange for multiple part numbers, including 0 986 445 008, 5001860115, and 313GC5230MX . For workshop managers and parts distributors, this broad compatibility simplifies inventory management while addressing common failure points in medium and heavy-duty diesel fleets, such as injector sticking, internal leakage, and loss of rail pressure stability .

Correct installation of the 0414755006 unit pump is paramount to ensuring system integrity and preventing premature failure. Technicians must adhere to strict cleanliness protocols, as contamination is a primary cause of EUP and common rail injector malfunction . The injector bore in the cylinder head must be meticulously cleaned of carbon deposits and old seal material. New sealing rings and gaskets must be used, and the unit should be lightly lubricated with heat-resistant grease prior to insertion . Following physical installation, critical steps include performing a leak-off test to check return flow rates and, where applicable, completing the injector characteristic map adjustment using diagnostic equipment to align the pump's calibration with the ECU . This coding procedure prevents issues such as rough idling, poor fuel economy, and persistent fault codes. Utilizing the correct torque specifications for all high-pressure connections is non-negotiable to avoid hazardous fuel leaks and component damage .

Q1: Does the 0414755006 unit pump require coding after installation?
A: Yes, on many modern common rail systems, performing an injector characteristic map adjustment is mandatory after installing the 0414755006. This procedure, done via diagnostic software, aligns the pump's flow rates with the ECU. Skipping this step can result in rough running and poor fuel economy .

Q2: What are the primary failure symptoms this unit pump addresses?
A: The 0414755006 directly resolves issues like hard starting, white/blue smoke at idle, engine nailing, and fault codes related to cylinder imbalance. These symptoms typically indicate internal leakage, nozzle wear, or loss of injection pressure .

Q3: Are there specific installation precautions to prevent early failure?
A: Absolutely. Absolute cleanliness is vital to protect the high-pressure components. Never reuse old sealing rings or high-pressure lines. Always clean the injector bore thoroughly to prevent carbon fouling from causing the new pump to stick or fail prematurely .

Q4: What is the expected service life of the 0414755006?
A: While service life depends on fuel quality and maintenance, this Bosch EUP is engineered for continuous heavy-duty operation, often exceeding 500,000 miles. Regular replacement of fuel filters and using quality diesel are key to reaching this lifespan .

Q5: Can this pump be used interchangeably with part number 0414755007?
A: Yes, the 0414755006 is frequently listed alongside 0414755007 as an applicable interchange part for similar applications. However, always confirm the specific part number required for your exact engine model and year .
