F00N202418 CP3 Outlet Valve – Precision Fuel Control For MAN & Heavy-Duty Common Rail Pumps



The F00N202418 (also referenced as F 00N 202 418 or BOS16533) is a high-precision outlet valve engineered for the Bosch CP3 high-pressure fuel pump series, serving as a critical sealing and flow-regulating element within the common rail fuel system . This component directly manages the egress of pressurized fuel from the pumping plungers into the high-pressure rail. When internal leakage develops due to seat wear or spring fatigue, the pump's ability to generate and sustain the required rail pressure-often exceeding 1,600 bar-is compromised. Replacing this valve restores volumetric efficiency, eliminates extended cranking and "hot start" difficulties, and protects expensive injectors from damage caused by insufficient injection pressure. This service part is specified for MAN TGA, TGS, TGX series trucks and cross-references with IVECO Daily and select DAF heavy-duty platforms equipped with CP3.2 and CP3.3 pump variants .

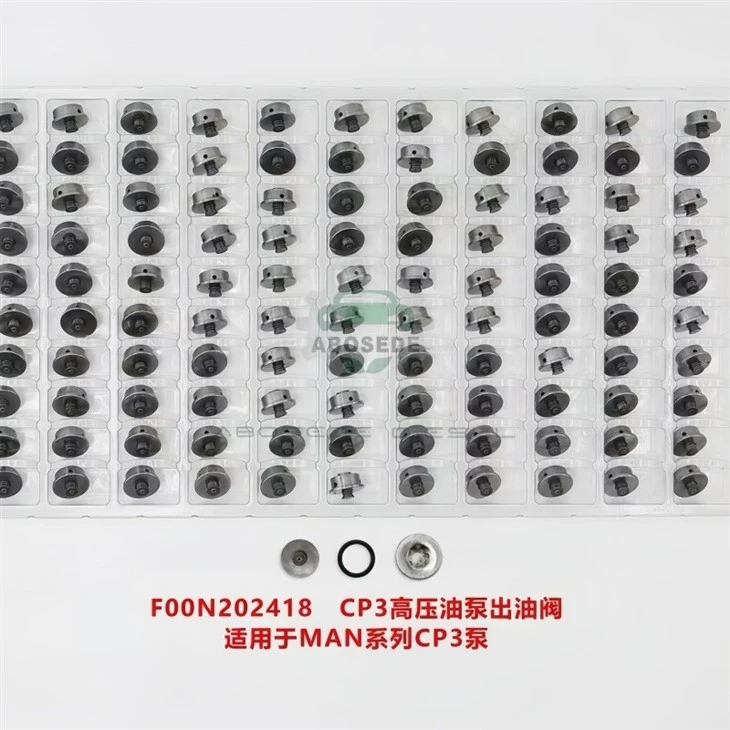

The F00N202418 is a spring-loaded poppet-style valve constructed from hardened alloy steel, designed to resist cavitation erosion and fretting wear-common failure points in high-cycle fuel systems. Gross weight is approximately 0.1 lbs . This valve is calibrated to specific crack pressure tolerances matching the hydraulic requirements of MAN D20, D26, and D28 engine families. Direct OEM cross-reference includes 00202418 and F 00N 201 875 . Important distinction: this part is the outlet valve element, not a complete repair kit containing seals and O-rings; those must be sourced separately depending on the CP3 variant being serviced. When selecting, always verify the pump index number to ensure hydraulic compatibility; installing an incorrect valve alters the hydraulic lag and can trigger persistent P0087 (low pressure) fault codes.



This outlet valve is predominantly applied in heavy-duty commercial vehicles and off-highway equipment utilizing the Bosch CP3 pumping architecture. Verified compatibility covers:

MAN TGA, TGS, TGX series with D20/D26/D28 power units

IVECO Daily and heavy truck applications

Select DAF XF105 drivetrains

Various engine-driven equipment and stationary diesel power units using CP3 pumps

For workshops and parts distributors serving African and Southeast Asian markets, note that many regional fleet operators run MAN and IVECO chassis in mining, construction, and long-haul logistics. The F00N202418 is a high-turnover service item in these sectors, as fuel quality variation across regions accelerates valve seat erosion and reduces service intervals.



Proper installation demands a contamination-controlled environment and precision tooling. Before extracting the retaining plug, thoroughly clean the pump cavity to prevent particle ingress into the metering section. Critical inspection: examine the valve seat using a borescope for micro-pitting or scoring-compromised seating surfaces will negate the benefit of a new valve, leading to immediate repeat failure. Lubricate the new valve with clean diesel fuel or assembly oil to prevent galling during initial actuation. A calibrated torque wrench is mandatory for tightening the retaining plug to the manufacturer's specifications; under-torquing causes leaks, while over-torquing deforms the sealing lands. Post-installation, prime the high-pressure system by cranking without injector activation to purge air from the pump gallery. Final verification: conduct a rail-pressure data log under full-load conditions; observe the delta between commanded and actual pressure to confirm the pump can sustain pilot and main injection volumes without deviation.



In the field, a degrading F00N202418 outlet valve presents a distinct failure pattern: prolonged crank-to-start, particularly when hot; a "flat" throttle response under load; and a measurable inability to reach commanded rail pressure at high rpm. Critically, these symptoms often mimic a failing Fuel Control Actuator (FCA) or rail pressure sensor, leading to misdiagnosis and unnecessary parts replacement . The outlet valve failure is mechanical-the spring loses tension or the poppet seat erodes, allowing internal leakage that prevents pressure ramp-up. Repair shops can isolate the valve by performing a residual pressure hold test post-injection; a rapid pressure drop indicates outlet valve leakage. Replacing this single component delivers exceptional ROI for fleet operators: restored fuel atomization, improved fuel economy, and reduced soot load on DPF/SCR aftertreatment systems. For the distributor, stocking this OE-spec part positions you to serve critical repair needs without the overhead of full CP3 pump replacement.



Q1: How do I distinguish between a worn outlet valve and a faulty FCA during a rail pressure fault diagnosis?

A: The key differentiator is the pressure deviation profile. Log rail pressure during a WOT (wide-open throttle) run. A faulty FCA usually causes erratic pressure oscillations or a "hunting" pattern, while a worn outlet valve produces a consistent, non-oscillating pressure deficit that worsens with load. Also, check FCA current values; if they appear nominal but pressure still lags, the outlet valve or plunger seals are the issue.

Q2: What is the expected service interval for this valve under typical African/Southeast Asian operating conditions?

A: Service life varies significantly with fuel quality and filtration. In well-maintained systems with adequate water separation, these valves often exceed 400,000 km. However, in regions with higher fuel contamination, the valve seat can erode within 200,000-250,000 km. The primary wear indicator is extended hot-start cranking-if the engine starts promptly when cold but struggles when hot, suspect outlet valve leakage.

Q3: Can this valve be used in performance-upgraded or "stroker" CP3 pump applications?

A: This F00N202418 is engineered to Bosch's factory OEM specifications for standard power outputs. For high-horsepower towing or performance builds featuring 10-12 mm stroker CP3 pumps requiring higher flow rates, a modified pressure valve assembly may be necessary. This unit is ideally suited for restoration of stock performance and fleet maintenance.

Q4: Does this part number include the sealing washers and O-rings required for installation?

A: No. The F00N202418 refers specifically to the hydraulic valving element (the poppet and spring assembly). The copper sealing washer beneath the valve retainer and any associated O-rings for the retaining plug are separate service items. Always consult the specific CP3 pump parts diagram for your application to ensure all sealing components are ordered and replaced simultaneously.

Q5: What bench test parameters should a Bosch diesel service center use to validate this valve during pump rebuild?

A: On an EPS 708 or equivalent test bench, the critical pass/fail criteria are: (1) the leak rate at idle speed, and (2) the maximum pressure generation at rated speed. Specifically, monitor the pressure drop rate after pump shutoff. A new valve should maintain residual rail pressure within a specified tolerance for a set duration. Failure to hold pressure immediately implicates the outlet valve or pumping plunger seals.

Q6: Can a failing outlet valve cause injector balance rate issues that mimic bad injectors?

A: Yes-this is a common diagnostic trap. A failing outlet valve reduces the hydraulic "backbone" of the rail. As rail pressure drops, injectors struggle to operate efficiently, causing erratic balance rates and return flow volumes. Many technicians replace injectors based on return flow tests, only to find the issue persists. Always validate the outlet valve before condemning injectors to avoid costly parts misdiagnosis.
