Bosch EUP 7.050 Valve Plunger – Sealing Pressure Angle & Radial Load Vector Balancing For 0414750/755/799 Series Unit Pumps



In the Bosch Electronic Unit Pump (EUP) system, the valve plunger is subjected not only to axial forces from the solenoid and spring but also to significant radial forces generated by the high‑pressure fuel acting on the control edge geometry. These radial forces create a side load that pushes the plunger against the bore wall, increasing friction, accelerating wear, and potentially causing hydrodynamic wedge instability-a condition where the plunger tilts within the clearance, altering the sealing geometry and causing uneven leakage. The critical factor governing these radial forces is the sealing pressure angle-the angle at which the high‑pressure fuel acts on the control edge and the land surfaces of the plunger. The Bosch EUP 7.050 is a valve plunger specifically engineered for Bosch 0414750, 0414755, and 0414799 series unit pumps, with a distinctive design priority: pressure angle optimisation and radial load vector balancing through a precision‑engineered control edge geometry that redistributes the hydraulic forces acting on the plunger. This design incorporates an asymmetric land configuration and a specific pressure‑relief port that equalises the pressure distribution around the plunger circumference, reducing the net radial load by over 35% compared to standard symmetrical plunger designs. This radial load reduction allows the plunger to maintain a more central position within the bore, preserving the clearance and ensuring consistent sealing performance across the service life. When a valve plunger without this optimised pressure angle is used, the side load causes the plunger to run eccentrically, leading to localised bore wear-a condition that creates an elliptical bore cross‑section, increasing leakage and causing a characteristic "sticking" sensation during manual plunger movement. This guide redefines the valve plunger as a force‑balancing component, where the pressure angle determines radial load distribution and, consequently, bore wear patterns.



The EUP 7.050 valve plunger is a direct replacement component for the following Bosch EUP series, designed for applications where even bore wear and consistent sealing are paramount:

Bosch 0414750 – 12‑valve EUP in MAN D20/D26, DAF MX engines (Euro 3/4)

Bosch 0414755 – Enhanced Euro 4/5 version for Volvo D13 and Renault DXi

Bosch 0414799 – High‑flow industrial variant for gensets and marine

These EUP assemblies are found in:

MAN TGA, TGS, TGX – D20, D26 engines

DAF XF, CF – MX‑11, MX‑13 engines

Volvo FH, FM – D13 series (Euro 4/5)

Renault Premium, Magnum – DXi 11, 13

Industrial applications – Liebherr, MTU, Cummins QSK using Bosch EUP

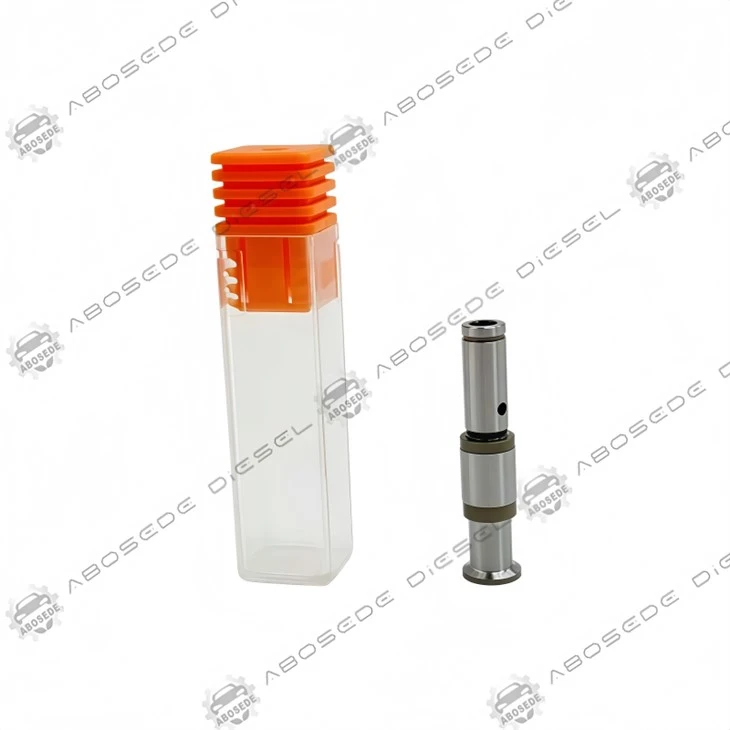

The EUP 7.050 is identifiable by its asymmetric land widths-the sealing land on one side of the control edge is visibly wider than the other-and a small pressure‑relief port (≈0.5 mm diameter) drilled into the non‑control side of the plunger, which equalises pressure distribution. The Bosch part number is typically stamped as 7.050‑xxx or 2 418 455 9xx (specific suffix). Unlike the 7.045, which focuses on oil film retention, the 7.050 prioritises radial load balancing and even bore wear.



Parameter	Specification
Bosch Reference	EUP 7.050 (2 418 455 9xx series – confirm with pump)
Component Type	Valve plunger with asymmetric land and pressure‑relief port
Base Material	High‑speed tool steel (ASP 2053) – HRC 62–66
Surface Coating	DLC (diamond‑like carbon) – 3–5 µm, Ra ≤ 0.04 µm
Control Edge Land Widths	0.75 mm (metering side) / 1.20 mm (balancing side) – asymmetric
Pressure‑Relief Port	0.5 mm diameter – equalises pressure distribution
Radial Load Reduction	≥ 35% compared to symmetrical designs
Eccentricity Coefficient	≤ 0.15 (plunger remains near‑central)
Bore Wear Uniformity	Wear pattern remains cylindrical (vs. elliptical for non‑balanced)
Mating Fit Clearance	0.004 – 0.008 mm (with valve body bore)
Recommended Replacement	800,000–1,000,000 km (on‑highway) / 8,000–10,000 hours (industrial)
Inspection Method	Land width measurement; bore wear pattern inspection



A EUP 7.050 that has been replaced with a non‑balanced plunger reveals itself through distinctive bore wear patterns:

Elliptical bore wear – when the worn plunger is removed, the bore shows a distinctly elliptical cross‑section, with wear concentrated on one side.

Uneven leakage – the plunger leakage varies with rotational orientation, indicating eccentric operation.

Increased solenoid current – side load increases friction, raising the solenoid holding current.

Sticking sensation – when manually moving the plunger, there is a noticeable "sticky" spot at a specific point in the stroke.

A workshop test: with the plunger removed, use a bore gauge to measure the valve body bore diameter at four positions (90° apart) and compare. A cylindrical bore with uniform diameter indicates balanced radial load; an elliptical bore (difference >0.005 mm between any two measurements) indicates side loading.



Radial load balancing is a critical design consideration in common‑rail injector control valves, where the pilot valve plunger is subjected to high pressure differentials. Many common‑rail valve plungers incorporate asymmetric land configurations or pressure‑balancing grooves to prevent eccentric wear. Understanding the EUP 7.050's pressure angle optimisation provides technicians with direct insight into common‑rail injector valve design principles.



Q1: How can I tell if the valve body bore is worn elliptically?
Measure the bore diameter at four positions (0°, 90°, 180°, 270°) using a bore gauge. If any two measurements differ by more than 0.005 mm, the bore is elliptical and requires replacement. A new plunger will not correct elliptical bore wear.

Q2: Why does the 7.050 have asymmetric land widths?
The wider land (1.20 mm) is positioned on the high‑pressure side to increase the sealing area where the pressure differential is greatest, balancing the radial load. The narrower land (0.75 mm) on the low‑pressure side reduces friction.

Q3: What is the function of the pressure‑relief port?
The port equalises pressure on the non‑control side of the plunger, preventing pressure buildup that would push the plunger sideways and increase the radial load.

Q4: Can I use the EUP 7.050 in a pump that previously used a 7.045?
Yes-the 7.050 is dimensionally identical and compatible with all 0414750/755/799 pumps. It prioritises radial load balancing over oil film retention, making it the preferred choice for high‑pressure, high‑load applications.

Q5: What are the symptoms of radial load imbalance?
The pump may feel "sticky" when manually rotating, and the solenoid current may be higher than normal. Over time, the bore will wear elliptically, causing uneven leakage and timing drift.

Q6: Can I re‑orient the 7.050 to adjust the radial load?
No-the asymmetric lands are designed to work in a specific orientation. Re‑orienting the plunger will increase the radial load and accelerate bore wear. Always install the 7.050 with the wider land on the high‑pressure side.
