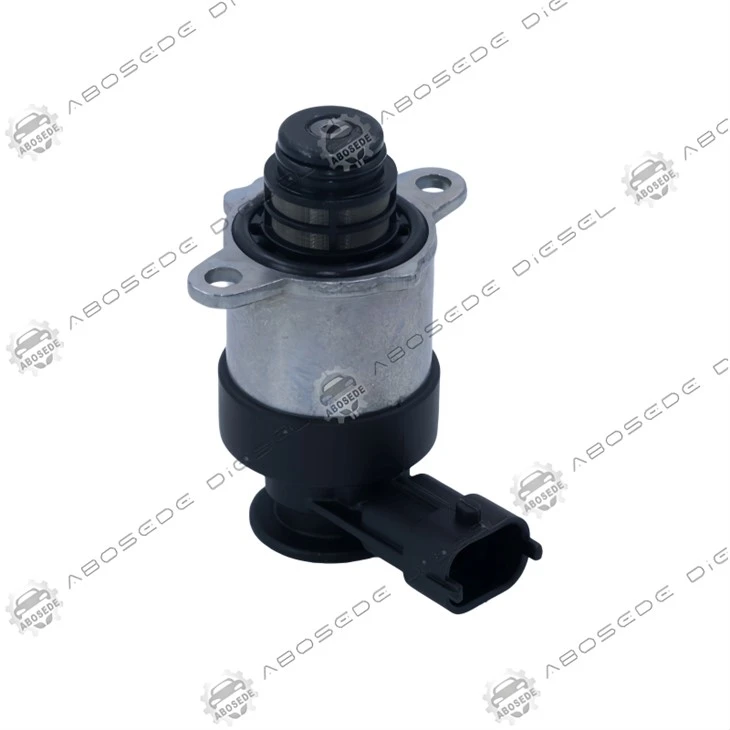

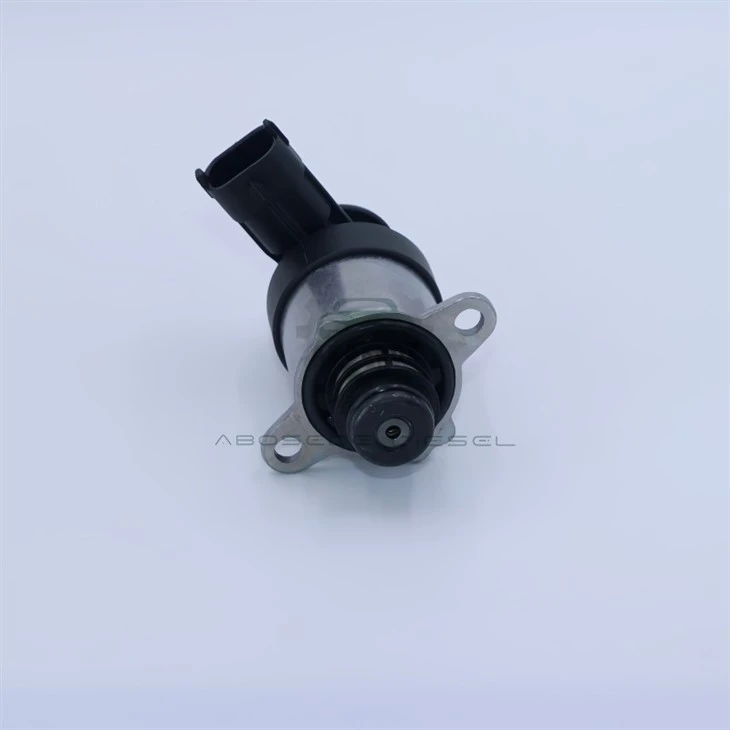

Bosch 0928400788 – The Metering Valve With Position‑Dependent Force Compensation For Linear Duty Response

In a conventional metering valve, the net force on the spool is a combination of the magnetic force, the spring force, and the hydraulic force. At the nominal operating point, these forces are balanced. However, as the duty cycle changes and the spool moves to a different position, the balance changes - the spring force increases as the spool moves toward the closed position, and the magnetic force changes with the armature position. If the valve is not designed with position‑dependent force compensation, the relationship between the duty cycle and the spool position becomes non‑linear, and the ECU's feedforward calculation is less accurate. The 0928400788 is engineered with a position‑dependent force compensation that balances the forces at every position across the spool's travel, ensuring that the spool position is linearly related to the duty cycle. It is a valve that moves linearly with the command.

The spool in a metering valve is held in position by a balance of forces: the magnetic force pulls it closed; the spring force pushes it open; and the hydraulic force varies with the pressure drop and the flow rate. At the nominal position - typically 50 % duty cycle - these forces are balanced, and the spool is stable. However, when the duty cycle changes, the spool moves to a new position. At the new position, the spring force has changed (the spring is compressed or extended), and the hydraulic force may have changed (the pressure drop is different). If the magnetic force does not change by the same amount, the spool will not move to the commanded position - it will settle at a different position, introducing a non‑linearity. The 0928400788 uses a magnetic circuit that has a force‑stroke characteristic that is complementary to the spring and hydraulic force changes - the magnetic force changes with the position so that the net force is zero at every position across the operating range.

The position‑dependent compensation is achieved by a magnetic circuit geometry that produces a force‑stroke curve that is complementary to the spring force curve. The magnetic circuit is designed so that the magnetic force decreases as the spool moves open - the armature is further from the core, and the magnetic flux decreases. The spring force, meanwhile, decreases as the spool moves open (the spring is less compressed). The two curves are matched so that the net force (magnetic minus spring minus hydraulic) is zero at every position. This matching is achieved by careful selection of the core geometry and the spring rate - the spring rate is selected to match the slope of the magnetic force curve. The result is a valve where the spool position is a linear function of the duty cycle, and the ECU's feedforward calculation is accurate across the full operating range.

The position‑dependent compensation can be lost if the spring loses tension or if the magnetic circuit is damaged. A loss of spring tension changes the slope of the spring force curve, so it no longer matches the magnetic force curve. The net force is no longer zero at all positions, and the spool position is non‑linear. The first symptom is often a metering error that is more pronounced at one end of the duty range - the valve may under‑meter at low duty and over‑meter at high duty, or vice versa. The genuine 0928400788 uses a spring that is pre‑cycled during manufacture to stabilise its rate, and a magnetic circuit that is designed to resist degradation, ensuring that the compensation is maintained.

Installing the 0788 is similar to other CP4 valves - clean the mounting surface, replace the O‑ring and backup ring, torque the retaining nut to 23 Nm ± 2 Nm. However, there is a specific verification step: perform a linearity test after installation. With the engine running at a constant speed, command a sequence of duty cycles from 15 % to 80 % in 5 % steps and record the rail pressure. The relationship between the duty cycle and the rail pressure should be linear - a deviation of more than 3 % indicates that the position‑dependent compensation is not working effectively. The test can be performed using most diagnostic tools with a duty cycle command function.

Q1: How can I tell if my valve's position‑dependent compensation is compromised without removing it?
→ Perform a duty cycle sweep from idle to full load and monitor the rail pressure. If the pressure does not increase linearly with the duty cycle, the compensation may be compromised. A well‑functioning 0788 will show a linear relationship across the full duty range.

Q2: Can I use the 0928400788 on a BMW that originally used the 0831?
→ Yes, in most CP4.2 applications. The 0788 has the position‑dependent compensation that is particularly valuable for linear response, and it is a direct replacement for the 0831 in many applications. Always verify compatibility with the engine's calibration.

Q3: Why does my engine have good low‑load performance but poor high‑load performance?
→ This is a classic symptom of a valve without position‑dependent compensation - the compensation is not effective across the full stroke, and the spool position is non‑linear at the high‑load end. The 0788 is designed to provide linear response across the full stroke.

Q4: What is the most common cause of compensation loss in this valve?
→ Spring relaxation - the spring loses tension, and the spring rate changes. The 0788 uses a pre‑cycled spring to resist relaxation, but in high‑mileage vehicles, the spring can eventually lose tension. Regular inspection is recommended.

Q5: I replaced the valve but the linearity is still poor - is the valve defective?
→ Check the rail pressure sensor for drift - a drifting sensor can cause the ECU to command a non‑linear duty cycle. Also, check the injector response times - slow injectors can cause a non‑linear pressure response that appears to be from the metering valve.

Q6: Does the position‑dependent compensation work with biodiesel blends?
→ Yes. The compensation is based on the force balance, which is not affected by the fuel type. However, biodiesel has a different viscosity, which can affect the hydraulic force at different positions. The 0788 is designed to maintain linearity with standard diesel and biodiesel blends up to B20.
