0928400492 Bosch Fuel Metering Valve – PWM Signal Integrity & Electromagnetic Interference Immunity For CP3/CP1H Pumps On Heavy-Duty Diesel Engines

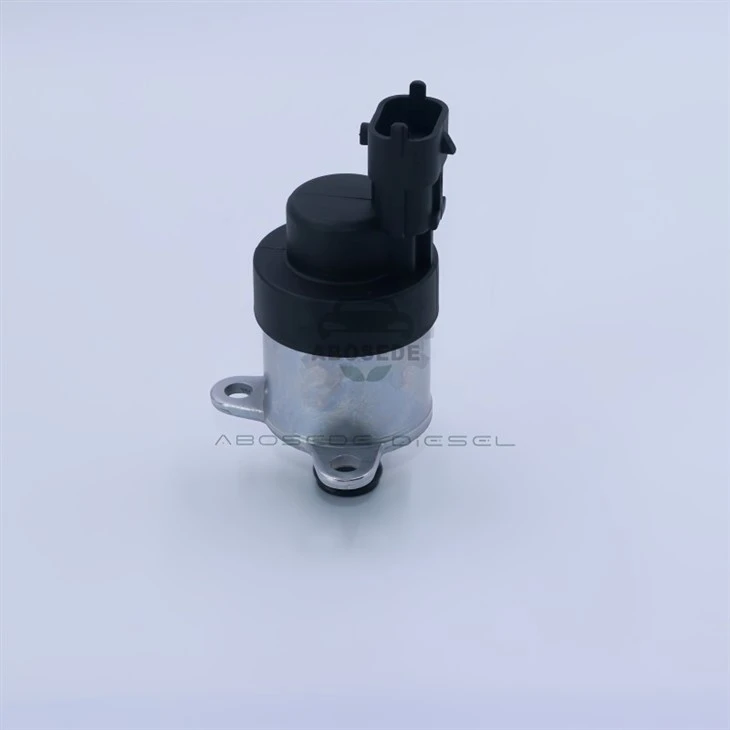

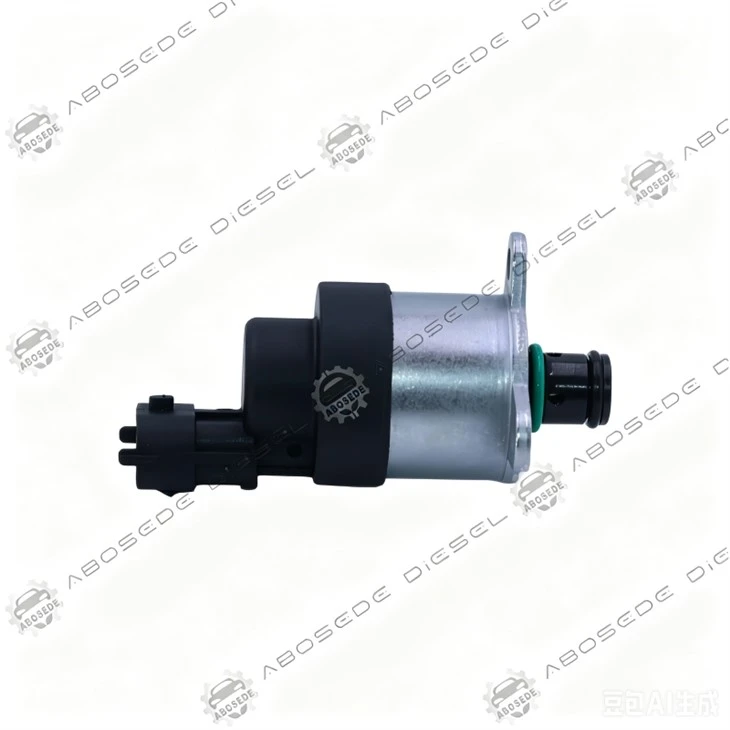

The 0928400492 is a Bosch inlet metering valve for CP3 and CP1H high-pressure common rail pumps. It controls fuel flow by responding to a pulsed electrical signal from the engine computer - the PWM duty cycle. This signal must travel through the engine wiring harness, passing close to alternators, starter motors, and the high-voltage injector solenoid drives that switch 80–120 volts in microseconds. Each of these components radiates electromagnetic noise. If that noise couples into the metering valve's signal wires, the valve reads a distorted command. The spool may move too far, not far enough, or flutter unpredictably. The engine computer then sees rail pressure errors and issues corrections, even though the valve itself is mechanically sound. The 0928400492 is built with internal electrical shielding and filtering that suppress incoming electromagnetic interference, ensuring that the PWM signal arriving at the solenoid coil is clean and accurate. This electrical integrity keeps fuel delivery stable without unexplained fluctuations. The valve fits heavy-duty diesel engines using Bosch CP3 or CP1H high-pressure pumps.

A modern diesel engine bay is electrically noisy. The alternator generates AC ripple that can ride on the DC supply. The starter motor pulls hundreds of amps and creates a powerful magnetic field during cranking. Most critically, the injector solenoids operate at high voltage and fast switching speeds, producing sharp electromagnetic pulses with every injection event. These pulses radiate outward and can be picked up by adjacent wiring. The metering valve's two-wire PWM circuit runs through the same harness bundle as these high-energy wires. If the PWM signal picks up noise, the valve sees voltage spikes or dips that were never part of the engine computer's command. This electrical interference can mimic mechanical stiction, causing the valve to appear faulty when the real problem is signal contamination.

The metering valve's solenoid responds to the average current in its coil, which is determined by the PWM duty cycle. A clean PWM signal switches cleanly between battery voltage and zero. Electrical noise superimposes additional voltage pulses on this waveform. The solenoid and its driver circuit may interpret these as a slightly higher or lower duty cycle, shifting the spool position away from the intended setpoint. The result is a small but persistent rail pressure error. Because the interference often varies with engine speed and electrical load - turning on headlights, engaging the air conditioning compressor clutch, or operating power windows - the pressure error may come and go unpredictably. Technicians may chase mechanical faults without success because the root cause is electrical. The 0928400492 addresses this at the source: its internal coil assembly and connector pins are designed with shielding and filtering components that reject high-frequency noise while passing the PWM control signal unchanged.

The 0928400492 incorporates several electrical noise countermeasures. The coil winding is shielded to reduce its susceptibility to radiated electromagnetic fields. A ferrite element in the connector body attenuates high-frequency common-mode noise traveling on the signal wires. The two-pin connector is keyed to ensure proper orientation and uses gold-plated terminals to maintain a stable low-resistance contact that does not rectify weak RF signals into DC offsets - a problem called "rusty bolt effect" that can affect corroded tin-plated connectors. These features work together to create a valve that hears only the engine computer's intended command, not the electrical chatter of the engine compartment. The result is steady rail pressure even with varying electrical loads, and a valve that behaves predictably in diagnostic testing.

Electrical interference problems can be difficult to isolate because they often leave no fault codes. A practical check: observe rail pressure stability at idle with all electrical loads switched off, then switch on high-power consumers - headlights, heater fan, air conditioning. A healthy 0928400492 will show no change. If rail pressure becomes erratic or the metering valve duty cycle jumps when these loads are applied, electrical noise may be feeding into the system. For a more detailed investigation, a technician can back-probe the metering valve signal wires with an oscilloscope. A clean PWM signal shows crisp square-wave edges. Noise appears as random spikes, rounded edges, or baseline shifts. Comparing the waveform at the ECU end and at the valve end reveals whether noise is entering along the harness. The 0928400492's built-in filtering helps ensure that the waveform at the valve remains clean, but the test can also identify harness routing issues that should be corrected.

Q1: My truck runs fine during the day but the idle becomes rough at night when the headlights are on. Can a metering valve cause this?

Electrical interference from the headlight circuit or alternator load change can couple into the metering valve signal. The 0928400492's internal shielding filters out this noise, but if the problem occurs with another valve, the valve's susceptibility to interference may be part of the cause. Check the harness routing and test the valve's response to electrical loads.

Q2: Can a faulty alternator cause metering valve problems?

Yes. An alternator with a failing rectifier produces excessive AC ripple on the electrical system. This ripple can be picked up by the metering valve circuit and interpreted as a PWM command variation. Before replacing the valve, check alternator ripple with a multimeter set to AC volts - it should be below 100 millivolts on a 12V system.

Q3: Will an oscilloscope test damage the engine computer or valve?

No, provided a high-impedance probe or a low-amp current clamp is used correctly. Back-probing a signal wire with an oscilloscope is a standard diagnostic procedure. It allows the technician to see the PWM waveform and any superimposed noise. The 0928400492 is designed to tolerate normal diagnostic testing.

Q4: Does the 0928400492 require a shielded wiring harness to work properly?

The valve's internal filtering reduces the need for an external shielded harness, but the vehicle's original wiring is normally routed to minimize interference. If the original harness is damaged, replacing it with the correct Bosch-specified harness is recommended. Adding aftermarket shielding is usually unnecessary.

Q5: Can electromagnetic interference permanently damage the metering valve?

Interference itself does not damage the valve, but the resulting spool flutter can accelerate mechanical wear over extremely long periods. The immediate concern is inaccurate fuel delivery. The 0928400492's filtering protects the signal path without affecting the valve's durability.

Q6: How can I confirm that electromagnetic interference is causing a metering issue and not a mechanical fault?

Monitor the metering valve duty cycle and rail pressure while switching electrical loads. If the symptoms change instantly with load changes, electrical noise is likely. Mechanical faults change more slowly and usually correlate with engine temperature or speed. An oscilloscope test provides the most definitive evidence.
