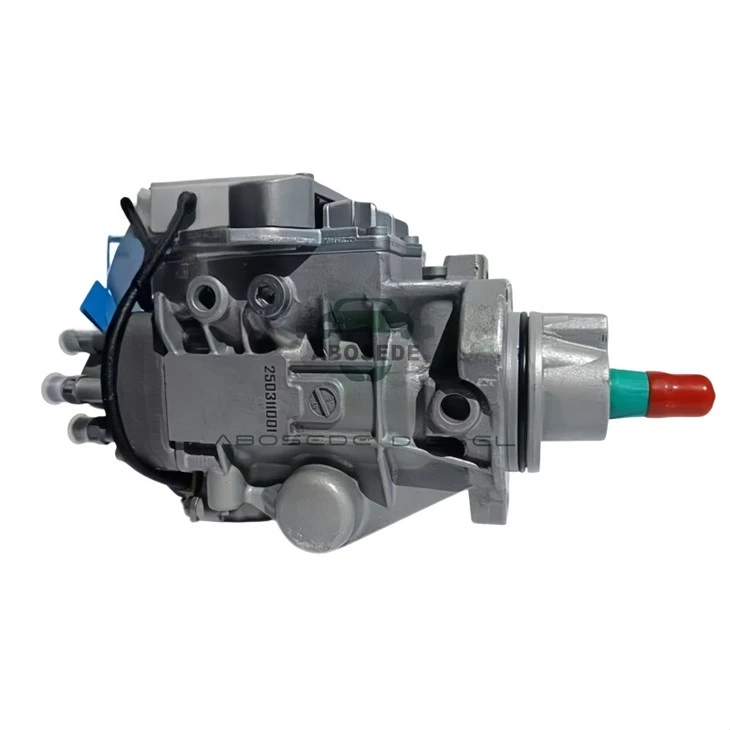

0470004015 VP29/30 Distributor Pump – Governor Linearisation With Full‑Load Fuel Limiting For Smoke‑Free Performance in 1.9 TDI 90 PS

In distributor pumps, the maximum fuel delivery is not determined by the plunger size alone-it is governed by the full‑load fuel limiter, a mechanical device that restricts the fuel rack position when the boost pressure is low, preventing black smoke during transient acceleration. The 0470004015 VP29/30 pump employs a linearised governor characteristic combined with a boost‑sensitive full‑load limiter, ensuring that fuel delivery increases smoothly with engine speed and load, without abrupt spikes that cause smoke or flat spots. As the mechanical fuel source for 1.9 TDI 90 PS engines (1Z, AHU), this pump delivers a clean, progressive power curve that satisfies both emission regulations and driver expectations for responsive throttle control. Its governor calibration is specifically optimised for the 90 PS application, offering a driveability that later, more complex systems sometimes overcomplicate.

In common‑rail systems, smoke limitation is achieved through the ECU's air‑fuel ratio monitoring, which adjusts injection quantity based on boost pressure and mass air flow readings. The 0470004015's pneumatic full‑load limiter performs the same function but through mechanical means-it uses boost pressure directly to limit the fuel rack, without requiring sensors or electronic processing. This makes the system simpler and less prone to sensor‑related failures, while still delivering the clean acceleration that drivers expect.

Governor spring colour verification – The 0470004015 uses a yellow‑coded main spring. If the spring is a different colour (e.g., green for 110 PS), the governor characteristic will be incorrect, causing either sluggish response or over‑fuelling. Always verify the spring colour before installation.

Boost hose connection – The full‑load limiter requires a hose connection to the intake manifold. A cracked or disconnected hose will prevent the limiter from receiving boost pressure, causing it to remain in the restricted position, reducing power. Conversely, a blocked hose will cause over‑fuelling and smoke.

Full‑load limiter adjustment – The limiter has an adjusting screw that sets the boost pressure at which the restriction is fully released. For the 0470004015, the factory setting is 0.3 bar (approximately 300 mbar). This is not a field‑adjustable item; if adjustment is needed, it requires a test bench.

Static timing – Set the plunger lift to 0.73 mm. Incorrect timing alters the governor's load‑sensing characteristics, as the governor flyweights are directly coupled to the pump shaft.

Remanufactured VP29/30 pumps often replace the governor spring with a generic equivalent, which may have a different spring rate and colour code. This alters the governor characteristic, causing a "flat spot" at mid‑throttle or an abrupt surge when the secondary spring engages. Additionally, reman units may not recalibrate the full‑load limiter diaphragm pre‑load, resulting in either over‑fuelling or under‑fuelling under boost. New 0470004015 pumps come with the correct yellow‑coded spring and a factory‑set limiter, guaranteeing the linear, smoke‑free performance that the 1.9 TDI 90 PS is known for.

Q1: How can I identify the governor spring colour on my 0470004015 without disassembling the pump?
The spring is visible through the governor housing inspection hole (with the pump removed). If you have the pump on the bench, remove the side cover and look for the yellow‑painted main spring. If it's a different colour, the pump may have been modified or rebuilt with incorrect parts.

Q2: The engine smokes under hard acceleration-could the full‑load limiter be faulty?
Yes-if the diaphragm is perforated or the boost hose is disconnected, the limiter will not release the restriction, and the engine will not receive enough fuel under boost (causing a lack of power). Alternatively, if the limiter is stuck in the unrestricted position (e.g., due to a stuck diaphragm rod), the engine will over‑fuel, producing smoke. Check the hose and the limiter operation by applying vacuum/pressure to the diaphragm port.

Q3: Can I adjust the governor to increase power without changing the pump?
Adjusting the governor spring pre‑load or the full‑load limiter screw can increase fuel delivery, but it requires a test bench to measure the resulting fuel curve. Without a bench, you risk over‑fuelling and smoke. We recommend a proper ECU remap instead of mechanical adjustments.

Q4: What is the function of the secondary governor spring?
The secondary spring engages at high speed to limit maximum fuel delivery, preventing over‑revving. On the 0470004015, it is calibrated to limit engine speed to approximately 5,200 rpm. If the secondary spring is missing or broken, the engine may overspeed, causing valve float or catastrophic failure.

Q5: How does the full‑load limiter affect fuel economy?
The limiter only restricts fuel during conditions where boost is low (e.g., initial acceleration, low‑speed driving). In these conditions, it prevents over‑fuelling, which actually improves fuel economy by ensuring the engine is not running excessively rich. It has no effect on steady‑state cruising fuel consumption.

Q6: The engine idles roughly and sometimes stalls-could the governor dashpot be at fault?
Yes-if the dashpot is sticking or the damping orifice is blocked, the fuel rack may not return to the idle position smoothly, causing hunting or stalling. Cleaning the governor assembly with a suitable solvent (diesel or carburettor cleaner) often resolves this. If the problem persists, the dashpot spring may be weakened.
