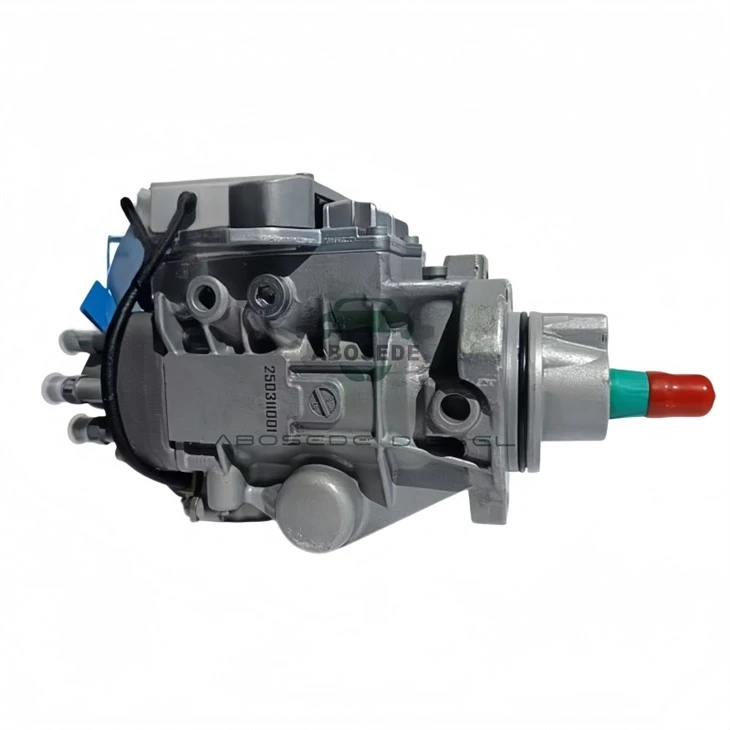

0470004014 VP29/30 Distributor Pump – Fuel‑Lubricated Precision With Wear‑Compensated Plunger Fit For 1.9 TDI 90 PS Longevity

In distributor pumps, the plungers and barrels are among the most heavily loaded components in the fuel system-yet they receive no dedicated oil supply. Lubrication is provided entirely by the diesel fuel itself, a fluid with inherently low lubricity compared to engine oil. As the plunger reciprocates within its barrel, the boundary lubricating film must withstand pressures exceeding 1,000 bar, making wear inevitable. The 0470004014 VP29/30 pump addresses this challenge through a wear‑compensated plunger‑barrel fit-a design philosophy that accepts a controlled increase in running clearance over time, rather than sudden seizure. This is achieved through a specific surface finish (Rz 0.8 µm) and a mating material pair (nitrided steel plunger with a hardened, ground barrel) that wears gradually and predictably. As the mechanical fuel source for 1.9 TDI 90 PS engines (1Z, AHU), the 0470004014 delivers consistent starting and full‑load performance across 250,000 km, a durability benchmark that newer high‑pressure systems often struggle to match.

In common‑rail systems, the high‑pressure pump plunger also relies on fuel lubrication, but the higher pressures (up to 2,500 bar) and tighter clearances make the system less tolerant of wear. A common‑rail pump with a clearance of 5.0 µm is considered worn and may be replaced. The 0470004014's design accepts a clearance up to 6.0 µm while still delivering acceptable performance, demonstrating that the VP29/30 architecture is inherently more tolerant of wear-a significant advantage for high‑mileage vehicles.

Fuel filter quality – Use only filters with a nominal rating of 5 µm (Bosch or equivalent). A lower‑quality filter will introduce abrasive particles that accelerate plunger wear, undoing the benefit of the wear‑compensated design.

Injection line cleanliness – When connecting the high‑pressure lines, ensure no dirt enters the line fittings-even a single 10 µm particle can score the plunger surface, increasing leakage permanently.

Static timing – Set the plunger lift to 0.73 mm using a dial gauge. Incorrect timing alters the pressure loading on the plunger, potentially changing the wear pattern.

Priming procedure – After installation, manually prime the pump using a hand primer to ensure the plungers are lubricated before the first start. Dry cranking can cause scuffing that increases the initial clearance beyond the designed 3.0 µm.

Remanufactured VP29/30 pumps often re‑grind the plungers and hone the barrels to restore a standard clearance, but they rarely replicate the specific surface finish (Rz 0.8 µm) of the original. A mis‑matched finish-either too smooth or too rough-alters the wear profile. If the finish is too smooth, the boundary lubrication film is not retained, leading to scuffing within 20,000 km; if too rough, abrasive wear accelerates, causing clearance to exceed 6.0 µm before 100,000 km. New 0470004014 units are finished to the exact specification, guaranteeing the controlled wear pattern that delivers 250,000 km of reliable service.

Q1: How can I check the plunger clearance without removing the pump from the engine?
An indirect method is to measure the fuel return flow at idle. A new 0470004014 returns approximately 8‑10 ml/min; a pump with 6.0 µm clearance returns around 18‑20 ml/min. If the return flow exceeds 25 ml/min, the clearance is likely beyond the wear‑compensated range and the pump should be replaced or rebuilt.

Q2: The engine starts well cold but cranks long when hot-could the plunger clearance be at fault?
Yes-hot fuel is less viscous, increasing internal leakage past the plunger. A pump with a clearance of 6.0 µm at operating temperature will have noticeably poorer hot starting than one with 3.0 µm. If hot‑starting is a problem, measure the return flow; if it's above 22 ml/min, the plunger wear is excessive.

Q3: Can I retrofit a 0470004014 with a different plunger to increase fuel delivery?
The plungers and barrels are matched sets; swapping to a larger plunger (e.g., 9 mm) is possible but requires recalibrating the entire pump on a test bench. Additionally, the wear‑compensated finish is specific to the 8.5 mm plunger; larger plungers have different surface finish requirements. We recommend using the pump as specified.

Q4: Does the wear‑compensated design require a specific fuel additive to work effectively?
The design does not require additives, but using a fuel with a lubricity of less than 460 µm HFRR (ISO 12156) will accelerate wear. In regions where low‑sulphur diesel is mandatory, we recommend a commercial lubricity enhancer to maintain the designed wear rate.

Q5: The pump was rebuilt but the power dropped after 30,000 km-could the surface finish be wrong?
Yes-if the rebuilder used a finish that is too smooth, the plunger may have scuffed, increasing clearance rapidly. The symptom of scuffing is a sudden increase in return flow (from 10 ml/min to 20 ml/min over a few thousand km). In this case, the pump requires new plungers with the correct finish.

Q6: What is the service life of the 0470004014 under severe duty (e.g., towing)?
Under heavy load, the plunger clearance increases at a rate of approximately 0.015 µm per 1,000 km (vs. 0.010 µm under normal duty). This reduces the service life to about 180,000 km. Regular return‑flow monitoring (every 30,000 km) is recommended for severe‑duty applications.
