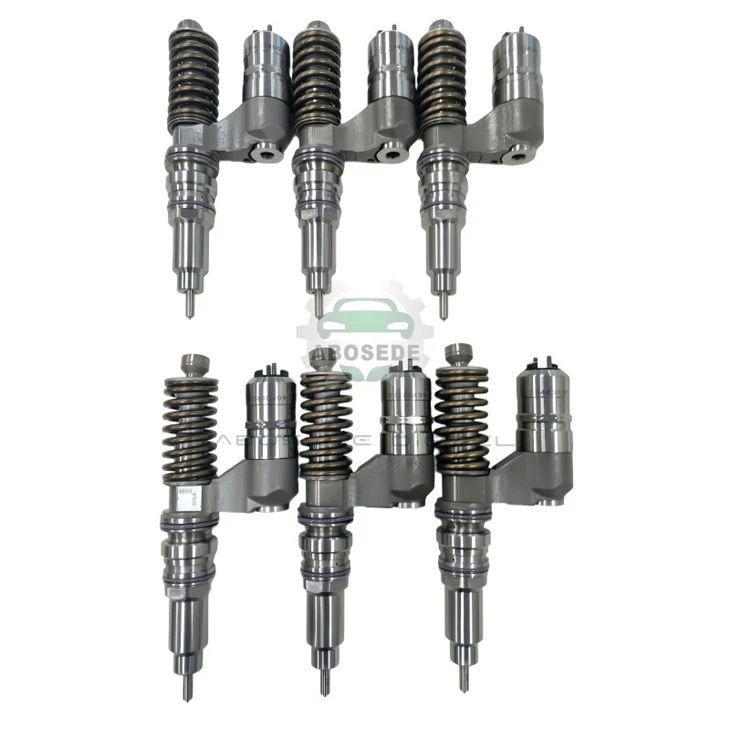

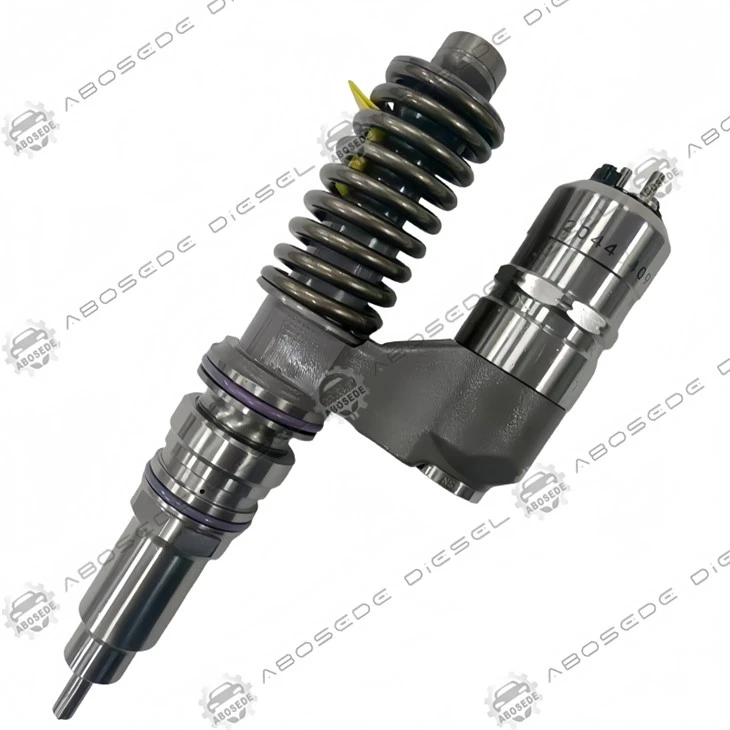

The Bosch 0414702019 is a purpose‑built diesel injector that sits at the final control point of the fuel delivery chain in Volvo Penta marine propulsion and industrial stationary engines, converting pressurised liquid diesel into a finely atomised spray that determines ignition timing, combustion efficiency, and mechanical output. Unlike generic replacement parts, this injector is dimensionally and functionally matched to Volvo Penta's specific cylinder head geometry and injection timing maps, ensuring that fuel enters the combustion bowl with the correct velocity, droplet size distribution, and spray angle. For operators of vessels, generator sets, or heavy machinery, the 0414702019 addresses the gradual loss of metering accuracy that naturally occurs with accumulated running hours-restoring not just peak power but also the predictable fuel consumption and stable idle that are essential for cost‑effective, uninterrupted operations.





In a diesel engine, the injector's primary responsibility is not simply to open and close, but to deliver a precisely measured fuel mass within a microscopic time window. Even a 2% deviation in injection quantity can translate into a measurable rise in specific fuel consumption and a noticeable increase in exhaust opacity.

The Bosch 0414702019 achieves its precision through:

◆ Tight plunger‑barrel clearance – minimises internal leakage even at elevated rail pressures.

◆ Laser‑drilled nozzle orifices – ensure consistent flow coefficient across all five spray holes.

◆ Controlled solenoid stroke – provides repeatable opening and closing times independent of temperature.

This level of control supports the engine's electronic management system in maintaining the correct air‑fuel ratio across the entire load spectrum, which directly impacts torque smoothness and emissions compliance.





Parameter	Detail
Part Number	Bosch 0414702019
Injector Type	Solenoid‑actuated, pressure‑balanced nozzle
Compatible Engine Series	Volvo Penta D9, D12, D16 (marine and industrial variants)
Fuel Compatibility	Diesel conforming to EN 590 / ASTM D975
Maximum Injection Pressure	1,800 bar (system‑dependent)
Electrical Interface	2‑pin connector, 12 V DC
Nozzle Configuration	5‑hole, VCO (valve‑covered orifice) design
Sealing Material	Viton (FKM) O‑rings, rated to 150°C
Weight	Approx. 1.72 kg
OEM Cross‑references	8113408, 3155044, 3829644 (Volvo); 3835257, 3836007 (Penta)





The operating profiles of Volvo Penta engines vary significantly, and the 0414702019 is specified for those that demand both endurance and responsiveness.

Marine Propulsion

Fishing trawlers and longliners that run continuously for days.

Harbour tugs requiring instant thrust changes during manoeuvring.

Coastal freighters and Ro‑Ro vessels with steady load cycles.

Industrial Power

Prime generator sets in remote mining or construction sites.

Standby units for hospitals and data centres.

Pump drives for irrigation, dewatering, or oil transfer.

In each setting, the injector must maintain its calibration despite fuel quality variations, ambient humidity, and sustained vibration-conditions that accelerate wear in less robust designs.





Because the ECU continuously monitors crankshaft acceleration between firing strokes, early signs of injector deterioration are often detectable before fault codes appear.

Longer cranking periods – internal leakage allows fuel to drain from the injector body, requiring extra revolutions to rebuild pressure.

Rough idle or erratic RPM – uneven fuel delivery across cylinders creates torque imbalances that the ECU struggles to smooth out.

Grey or black smoke under load – enlarged nozzle orifices or worn needle seats produce larger droplets that burn incompletely.

Noticeable rise in fuel consumption – the ECU extends injection duration to compensate for reduced hydraulic efficiency, increasing total fuel per cycle.

Combustion knock – altered injection timing due to solenoid response drift causes overly rapid pressure rise, producing metallic noise.

Timely replacement with the 0414702019 eliminates these symptoms and prevents secondary damage to the high‑pressure pump and turbocharger.





The Bosch 0414702019 incorporates several engineering choices aimed at extending its useful life under heavy‑duty cycles.

Hardened needle and guide – surface nitriding to HV 1000 resists galling from abrasive particles.

Balanced hydraulic forces – reduce lateral thrust on the needle, minimising uneven wear.

Corrosion‑resistant alloys – withstand acidic by‑products of low‑sulphur diesel combustion.

Vibration‑damped solenoid – encapsulated coil prevents winding fracture from mechanical shock.

These features allow the injector to maintain its performance for typical intervals of 8,000–12,000 operating hours, depending on fuel cleanliness and load severity.





To maximise the service life of the 0414702019, the entire fuel system requires attention:

Use primary and secondary filters with an absolute rating of 2 microns to prevent abrasive scoring.

Drain water separators daily to avoid corrosion of precision‑ground components.

Replace copper sealing washers every time an injector is removed-compression leaks cause pressure loss.

Perform a leak‑off test after installation to confirm all injectors have similar internal leakage.

Enter the individual trim code into the ECU if required, allowing the system to fine‑tune its pulse signals.

Regular inspection and proactive replacement at the first sign of imbalance are far more cost‑effective than dealing with a complete system failure.





Q1: Can the Bosch 0414702019 be used as a direct replacement for earlier part numbers like 0414702003?
Yes, provided the engine management software is updated to recognise the new injector's flow calibration. Always verify compatibility through the engine serial number before ordering.

Q2: How can I tell if a single injector is failing without removing it?
Perform a cylinder cut‑out test or measure exhaust manifold temperatures at idle. A significantly cooler pipe indicates that cylinder is receiving less fuel, pointing to a weak injector.

Q3: Why do marine engines typically require more frequent injector checks than truck engines?
Marine engines often run at near‑constant high load for extended periods, increasing thermal stress and accelerating nozzle wear. Additionally, fuel quality at ports can vary, introducing contaminants that erode internal surfaces.

Q4: Is it advisable to replace only one faulty injector, or should all be changed at once?
Replacing all six ensures uniform flow characteristics, but if budget constraints exist, at least replace injectors in pairs (front and rear cylinders) to maintain crankshaft balance. The ECU's adaptive learning may compensate for minor differences, but it is limited.

Q5: How does the Bosch 0414702019 contribute to emission control?
By delivering precise fuel quantities and maintaining optimal spray penetration, it ensures complete combustion, reducing particulate matter and unburned hydrocarbons that would otherwise strain aftertreatment systems.
