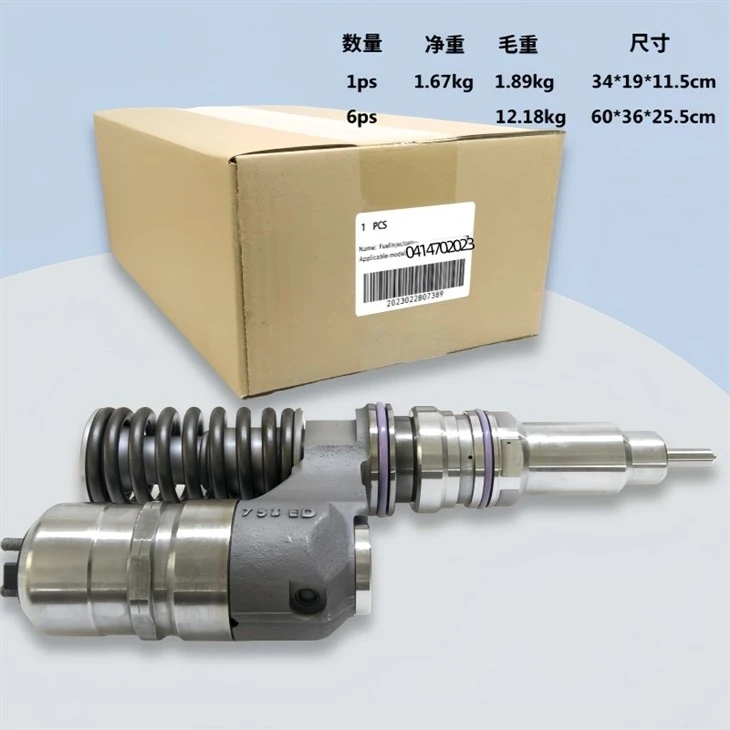

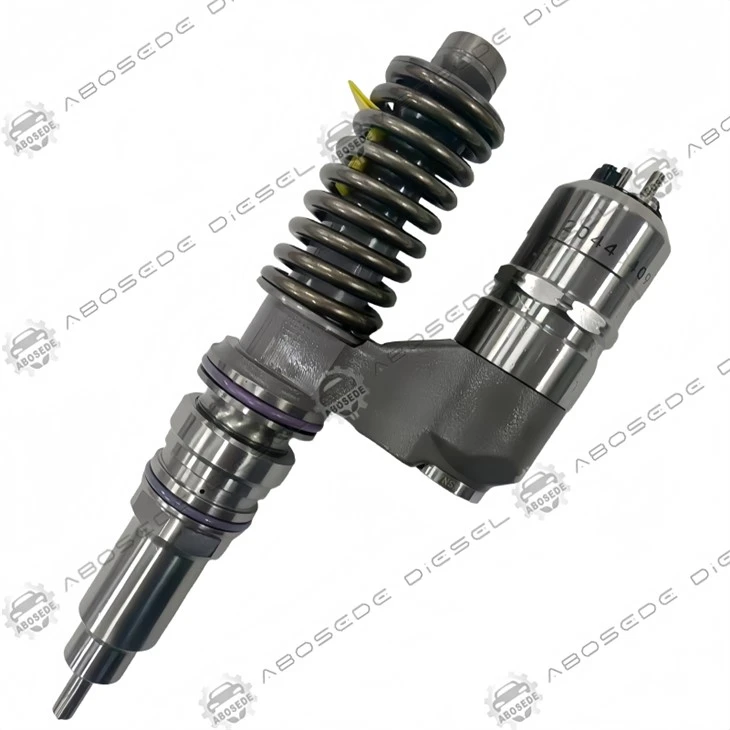

The Bosch 0414702023 is a cam‑driven electronic unit injector that serves as the sole pressure‑generating element for each cylinder in Volvo Penta's TAD1240GE and related 12.3‑litre diesel powerplants introduced from 2010 onward. Unlike common‑rail systems that depend on a central high‑pressure pump and a shared accumulator, this injector produces its own pressurised fuel internally-by converting the mechanical lift of the overhead camshaft into hydraulic compression directly above the piston. The plunger stroke is fixed by the cam profile, so the injection pressure rises naturally with engine speed, reaching peaks beyond 2,000 bar when the engine works hardest. For operators of marine vessels, generator sets, and heavy trucks, this component is not merely a fuel nozzle-it is the physical actuator that turns electrical pulses from the ECU into controlled combustion events, determining fuel consumption, exhaust cleanliness, and the overall durability of the power unit.





The 0414702023 belongs to the Pump‑Nozzle Unit (PDE) family, a system architecture that has proven its value in heavy‑duty applications where simplicity and robustness outweigh the flexibility of common‑rail. Each injector contains a plunger, a barrel, a solenoid valve, and a multi‑hole nozzle-all within a single cylindrical housing. The camshaft lobe pushes a roller tappet that drives the plunger upward, compressing the trapped fuel volume. The solenoid valve, controlled by the ECU, determines the exact moment when the pressurised fuel is released through the nozzle. When the solenoid is energised, it opens a bleed passage, allowing the pressure to drop on top of the needle, which then lifts off its seat and permits injection. De‑energising the solenoid closes the bleed, allowing the needle to snap shut, ending the event abruptly.

This arrangement delivers several inherent advantages that are particularly valuable in marine and industrial settings:

No high‑pressure external fuel lines – eliminating leak points and fire risks.

Pressure that tracks engine speed – providing finer atomisation at high revs without electronic pressure regulation.

Cylinder‑independent operation – a failure in one injector does not stop the entire engine.

Lower parasitic power loss – compared to a separate high‑pressure pump driven by the crankshaft.







Parameter	Specification
Bosch Part Number	0414702023
Injector Type	Electronic Unit Injector (EUI) / Pump‑Nozzle Unit (PDE)
Engine Compatibility	Volvo Penta TAD1240GE, TAD1241GE, D12, D13 (industrial & marine)
Engine Output	310 kW (415 BHP) at 1800 rpm
Peak Injection Pressure	2,050 bar (speed‑dependent)
Nozzle Holes	5, with anti‑wear coating
Actuation	Cam roller + plunger, stroke limited by cam lobe
Solenoid Coil Resistance	0.8–1.2 Ω (12 V system)
Sealing	Viton O‑rings + copper compression washer
Weight	~2.3 kg
Volvo OEM References	8113408, 3155044, 3829644, 3835257, 3836007





The injector is specified for Volvo Penta engines that are designed to run continuously under high loads, often in environments where reliability is more critical than peak performance.

Marine Propulsion

Fishing vessels and coastal freighters that operate on long voyages.

Harbour tugs and pilot boats requiring rapid thrust changes.

Auxiliary power units on larger ships for electrical generation.

Industrial Power Generation

Prime power sets for remote mining sites and construction camps.

Standby generators for critical infrastructure such as hospitals and data centres.

Mechanical drives for pumps, compressors, and stone crushers.

Commercial Vehicles

Volvo FH12, FM12, and NH12 series trucks used in heavy haulage and distribution.

The TAD1240GE engine, fitted with six of these injectors, is well‑known for exceeding 15,000 operating hours between major overhauls when fuel quality and filtration are properly managed.





Because the ECU continuously monitors crankshaft acceleration and exhaust oxygen content, injector wear often produces noticeable symptoms before fault codes are triggered:

Prolonged cranking before start – internal leakage through worn plunger clearances allows fuel to drain back, reducing the trapped volume needed for the first injection.

White or grey smoke during cold starts – poor needle seating or enlarged orifices produce large droplets that fail to ignite completely.

Rough idle with fluctuating RPM – uneven fuel delivery across cylinders creates torque imbalances that the ECU attempts to correct but cannot fully eliminate.

Increased fuel consumption without load change – the ECU extends solenoid dwell to compensate for reduced hydraulic efficiency, raising total fuel per cycle.

Fuel odour or level rise in engine oil – cracked seals permit diesel to bypass the plunger and enter the crankcase, thinning the lubricant and risking bearing damage.





Proper replacement of the 0414702023 goes beyond bolting in a new unit. The following steps are essential:

Renew the copper injector sleeve – the sleeve seals the injector in the cylinder head; if it is distorted or worn, combustion gases can leak past, causing loss of compression and carbon fouling.

Clean the seating bore thoroughly – any carbon or old sealant residues will prevent correct seating, leading to side‑loading on the plunger and premature wear.

Use only genuine Viton O‑rings – generic elastomers may not withstand the high under‑hood temperatures and fuel chemistry.

Torque the hold‑down bolt to specification – over‑torquing can distort the injector body and impair plunger movement.

If the injector carries a trim code, enter it into the ECU – some software versions allow fine‑adjustment of the pulse signal to account for manufacturing tolerances.





Q1: What makes the Bosch 0414702023 different from a common‑rail injector?
A common‑rail injector simply opens and closes to release fuel from a pressurised rail supplied by a central pump. The 0414702023 generates its own pressure through a cam‑driven plunger inside the unit-it is both pump and injector combined, eliminating the need for external high‑pressure lines.

Q2: Can this injector be fitted to older Volvo Penta D12 engines from the 2000s?
Physically it may fit, but the solenoid characteristics and flow calibration differ. Always cross‑reference the engine serial number and ECU software version before ordering.

Q3: Why does injection pressure rise with engine speed in this system?
Because the plunger is driven by the camshaft; the faster the cam turns, the quicker the plunger compresses the fuel, resulting in higher peak pressure. This provides natural boost compensation without electronic pressure governors.

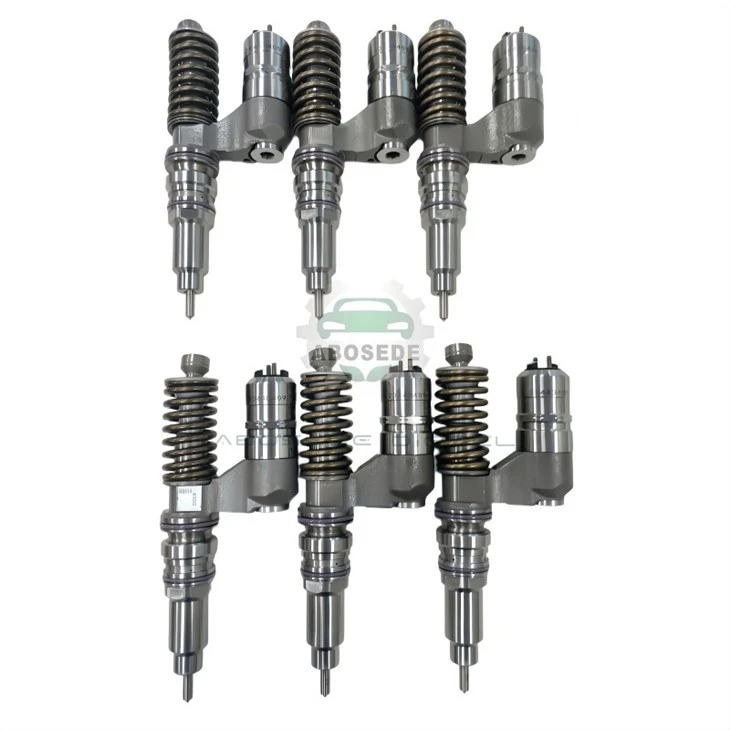

Q4: Should all six injectors be replaced at the same time?
Replacing all six guarantees uniform flow characteristics. If budget is limited, replace them in axle pairs to maintain crankshaft balance. Replacing just one can leave a persistent imbalance that the ECU cannot fully correct.

Q5: What does the ECU do to accommodate a new injector?
In some Volvo systems, the ECU has a learning mode that adjusts injection duration to achieve the demanded torque. If the injector has a calibration code, it must be entered via diagnostic software to fine‑tune the pulse signal for that specific unit.
