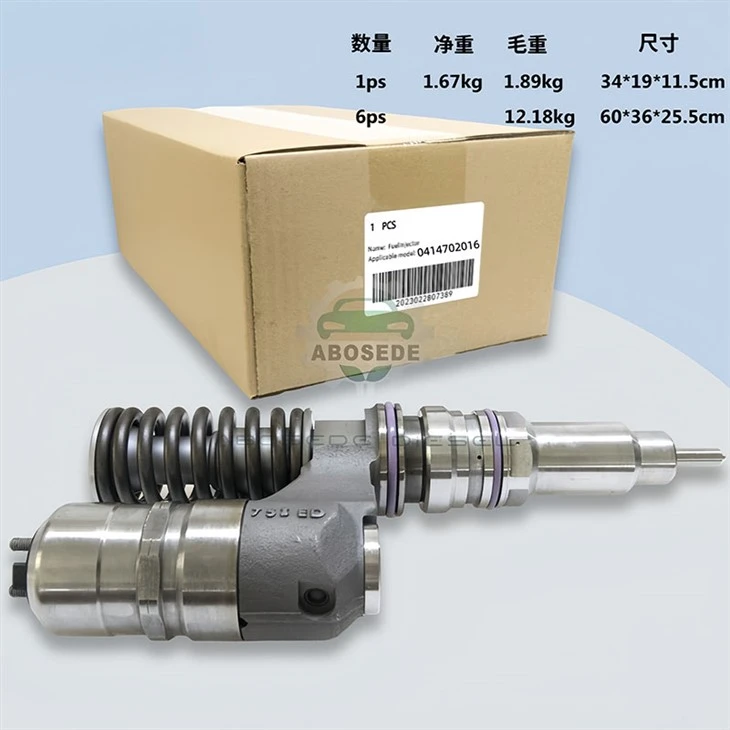

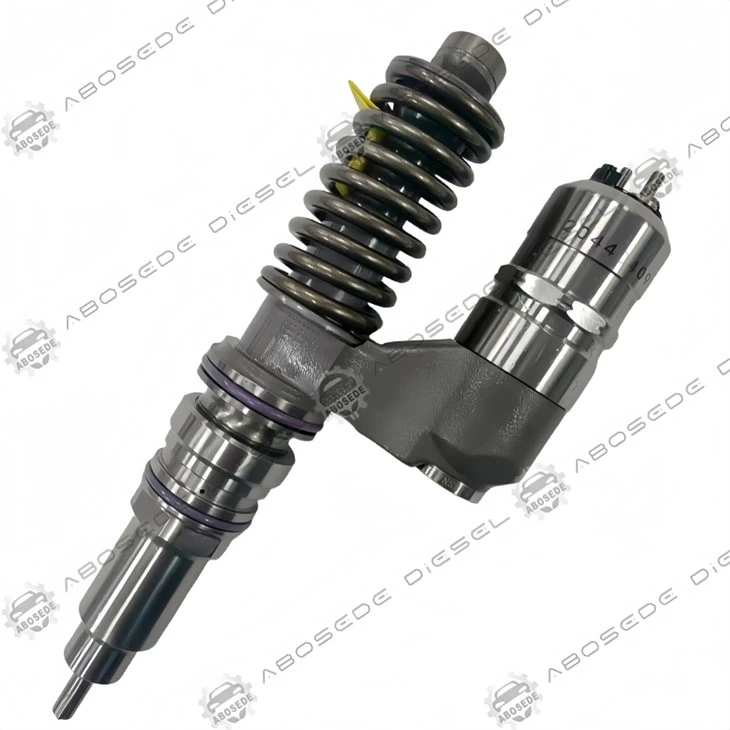

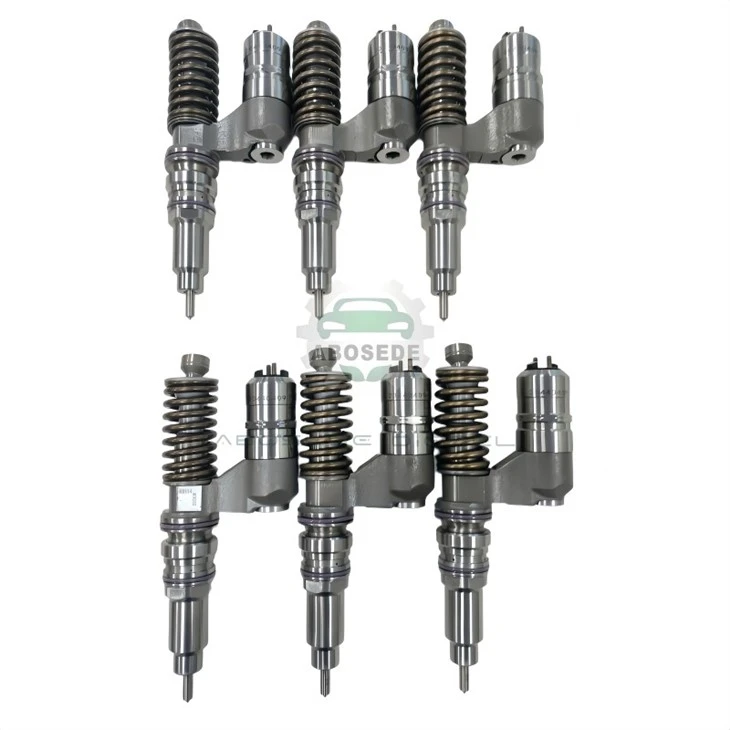

The Bosch 0414702016 is a second-generation Electronic Unit Injector (EUI) engineered specifically for Volvo Penta's D12 marine propulsion systems and Volvo's FH12, FM12, and NH12 heavy-duty truck platforms. Unlike common-rail architectures that rely on a centralized high-pressure pump feeding a shared accumulator, this unit injector integrates the pumping plunger, solenoid control valve, and injection nozzle into a single, cam-driven assembly mounted directly in the cylinder head. The overhead camshaft mechanically drives a plunger within each injector body, generating localized injection pressures up to 2,050 bar-pressure that scales naturally with engine speed and is available exactly when the combustion chamber demands it. This decentralized approach eliminates the external high-pressure fuel lines that represent common failure points in conventional systems, removing both leak risks and hydraulic delivery lag. For marine engineers, fleet maintenance supervisors, and industrial power plant operators, the 0414702016 defines the critical boundary where electronic logic from the Engine Control Unit (ECU) translates into physical combustion events-a boundary where every millisecond of solenoid dwell directly affects fuel economy, exhaust clarity, and crankshaft longevity.





In the Pump-Nozzle Unit (PDE) system-also known as the Unit Injector System (UIS)-each cylinder receives its own independent high-pressure generator. This design philosophy delivers several distinct operational advantages that common-rail systems cannot replicate:

◆ Zero External High-Pressure Plumbing – With no external lines carrying fuel at 2,000+ bar, the risk of catastrophic line rupture-and the fire hazard it presents in marine engine rooms-is virtually eliminated.

◆ Speed-Dependent Pressure Scaling – Because pressure is generated mechanically by the camshaft, injection pressure rises naturally with engine RPM. This provides high-pressure atomisation precisely when the engine needs it most-under heavy load and high-speed operation.

◆ System Resilience – Unlike common-rail where a single pump failure can cripple the entire engine, each cylinder in an EUI system operates independently, providing a layer of operational redundancy.

◆ Compact Cylinder-Head Integration – The injector nests directly into the cylinder head cradle, reducing the overall engine footprint and simplifying the fuel circuit.









Parameter	Specification
Component Model	Bosch 0414702016
Architecture Type	Electronic Unit Injector (EUI) / Pump-Nozzle Unit (PDE)
Primary Engine Fitment	Volvo Penta D12 marine; Volvo FH12, FM12, NH12 trucks
Actuation Mechanism	Overhead Camshaft-Driven Mechanical Roller
Maximum Injection Pressure	Up to 2,050 bar (mechanically generated)
Solenoid Voltage Input	12V / 24V Coordinated Dual-Pulse Control
Nozzle Configuration	5-hole micro-orifices with anti-cavitation coatings
Sealing System	Viton high-temperature O-ring kit configuration
Weight	Approximately 2.0–2.1 kg
Volvo OEM Cross References	8113408, 3155044, 3829644
Volvo Penta Marine Interchanges	3835257, 3836007
Alternative Bosch Numbers	0414702003, 0414702005, 0414702007, 0414702107
Core Application Footprint	Volvo FH12, FM12, NH12 commercial fleets; Volvo Penta marine and industrial generator sets





The 0414702016's operational precision hinges on its high-speed solenoid valve-the component that translates ECU pulse-width modulated signals into hydraulic action. This electromagnetic actuator must respond with sub-millisecond accuracy, hundreds of times per minute, across all six cylinders.

The Injection Sequence:

Pilot Injection (Pre-Event) – The ECU triggers a tiny pre-injection pulse milliseconds before the main stroke. This subtle step preheats the combustion chamber, reducing ignition delay and lowering combustion noise.

Main Injection Event – The primary fuel charge is released at full pressure, delivering the bulk of the energy required for the power stroke.

Injection Termination – The solenoid de-energises, closing the valve and halting the injection event with precision.

This dual-pulse strategy, enabled by the 0414702016's responsive solenoid actuation, produces smoother fuel ignition, cleaner exhaust output, and reduced structural vibration in Volvo D12 engines. The result is an engine that delivers high output and powerful torque while remaining fuel-efficient and maintaining low emissions.





Volvo Penta marine engines operate under sustained, heavy loads in humid, high-salt environments. The 0414702016 incorporates several durability-focused engineering features:

◆ Viton High-Temperature Seals – The O-ring configuration uses fluoropolymer elastomers that resist chemical degradation from modern low-sulfur fuel blends and maintain sealing integrity across extreme temperature ranges.

◆ Anti-Cavitation Nozzle Coatings – The five-hole micro-orifices receive specialised surface treatments that resist erosive wear from high-velocity fuel flow, preserving spray pattern accuracy over extended service intervals.

◆ Cam-Driven Mechanical Reliability – By generating high pressure mechanically through a cam-driven plunger, the injector reduces the engine's reliance on external high-pressure lines, ensuring a safer and more compact top-end engine design.

◆ Corrosion-Resistant Metallurgy – Internal components are specified to resist the corrosive effects of moisture ingress and fuel-borne contaminants common in marine applications.





The Bosch 0414702016 is specified for Volvo's heavy-duty diesel platforms that demand uncompromising reliability under continuous, high-load operation:

Commercial Marine Propulsion

Volvo Penta D12-powered workboats, fishing vessels, and coastal freighters

Harbour tugs and offshore support craft requiring instant torque response

Marine auxiliary generator sets operating in isolated environments

Heavy-Duty Commercial Trucking

Volvo FH12, FM12, and NH12 series long-haul tractors

Distribution trucks operating in demanding terrain

Industrial Power Generation

Standby and prime-power generator sets

Pump drives and compressor packages

Off-grid power installations in mining and remote construction

The D12 engine-equipped with these unit injectors operating under extremely high pressure up to 1,800 bar, five-hole injection nozzles, and the EDC system's precision control-has demonstrated a very long anticipated service life with simple, uncomplicated service requirements.





Because the 0414702016 integrates pumping and injection functions into a single unit, wear manifests through a distinct set of symptoms that experienced technicians can readily identify:

◈ Extended Cranking Before Start – Poor injector spray makes starting difficult, especially in cold weather. Internal leakage past the plunger or valve seat allows fuel to drain back from the injector body, requiring additional cranking cycles to re-prime the system.

◈ Rough Idle and Cylinder Imbalance – Uneven combustion causes unstable idle. Inconsistent solenoid response or uneven plunger wear produces variable fuel delivery across cylinders, resulting in a hunting idle or noticeable vibration.

◈ White or Black Smoke – White smoke from exhaust indicates unburned fuel from a leaking injector; black smoke under load points to over-fuelling or poor atomisation.

◈ Power Derating Under Load – Weak spray patterns reduce combustion efficiency. When the injector cannot achieve the commanded pressure or duration, the ECU may limit fuel delivery to protect the engine.

◈ Fuel Dilution in Engine Oil – A stuck injector can leak fuel into the crankcase, reducing oil viscosity and accelerating bearing wear.

◈ Increased Fuel Consumption – Leaking injectors waste diesel. The ECU compensates for reduced hydraulic efficiency by extending injection duration.





Q1: How does the Bosch 0414702016 differ from a common-rail injector?

A common-rail injector simply opens and closes to release fuel from a pressurised accumulator that is fed by a central pump. The 0414702016 generates its own injection pressure internally via a cam-driven plunger-it is both pump and injector in one assembly. This eliminates external high-pressure fuel lines and provides pressure that scales directly with engine speed.

Q2: Why is the dual-pulse solenoid control strategy important?

The ECU triggers a tiny pre-injection pulse just before the main injection stroke. This subtle step preheats the combustion chamber, leading to smoother fuel ignition, lower combustion noise, reduced structural vibration, and cleaner exhaust output.

Q3: Can a single failing injector affect the entire engine's performance?

Yes. The ECU monitors crankshaft acceleration between firing strokes; if one injector under-delivers, the ECU may reduce overall fuelling to protect the engine. This results in noticeable power loss, rough idle, and increased fuel consumption across all cylinders.

Q4: What are the most common causes of injector failure?

Common causes include poor fuel quality or water contamination, high mileage leading to nozzle erosion, faulty O-rings and seals, clogged injector nozzles from soot and carbon buildup, and electrical problems such as wiring harness damage or ECU signal failure.

Q5: Why is it important to use matching injector part numbers across all cylinders?

Installing injectors with identical part numbers and matching calibration codes across all cylinders is highly recommended. Mixing different part numbers can cause minor variations in fuel delivery and injection timing, leading to rough engine operation, uneven cylinder wear, and reduced overall fuel economy.
