0445120415 Common-Rail Injector – Micro-Hydraulic Actuation & Needle-Lift Precision For Heavy-Duty Platforms

When the Engine Control Unit (ECU) commands an injection event, the physical reality inside the 0445120415 injector is a rapid sequence of hydraulic pressure changes rather than a simple mechanical opening. This unit relies on a high-speed solenoid to trigger a micro-hydraulic chain reaction. The critical metric here is electro-hydraulic latency-the delay between the electrical pulse and the actual lifting of the nozzle needle. The control chamber must bleed pressure through a precise throttle orifice to unseat the needle. In the 0445120415, this response time is calibrated to the microsecond level to facilitate multiple injection events per cycle. If internal wear alters this latency, the pilot injection timing drifts, disrupting the combustion phase and leading to audible engine knock or increased NOx emissions.

Modern diesel combustion requires not just one, but multiple distinct injection pulses (pilot, main, post). The 0445120415 is engineered to execute these using a multi-stage needle lift profile. The initial lift for the pilot injection is extremely small-often measured in mere microns-designed to introduce a micro-amount of fuel to pre-condition the combustion chamber. The injector's internal spring and armature geometry dictate the dwell time between these pulses. A common failure mode in this specific injector is the degradation of the needle guide, causing the needle to stick momentarily. This creates an uncontrolled "dump" of fuel during the main injection, resulting in a rich mixture, cylinder wash, and excessive black smoke.

While visual inspection confirms physical fitment, the true operational identity of the 0445120415 lies in its flow mapping. The injector is not a linear valve; its delivery volume changes exponentially with rail pressure and pulse width. Key technical data points for this unit include:

Static Leak-off Rate: The internal control valve and needle guide are engineered to maintain a strict back-leakage tolerance. Excessive leak-off directly reduces rail pressure, forcing the high-pressure pump to overwork.

Dynamic Flow Curve: The delivery volume is calibrated to match specific OEM combustion bowl geometries and air-swirl ratios.

Hydraulic Stability: The injector must maintain stable injection quantities even when rail pressure fluctuates by ±200 bar during transient load changes.

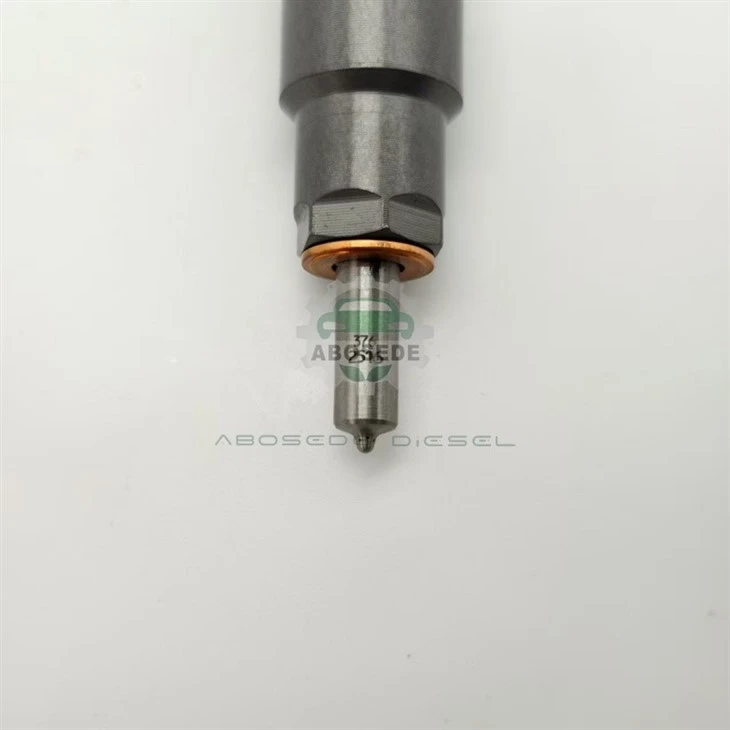

The nozzle tip of the 0445120415 operates in the most hostile environment of the engine: the combustion chamber. The injector utilizes specific thermal isolation geometry at the nozzle body to prevent heat soak from the cylinder head. When the engine shuts down, residual heat can vaporize the diesel at the nozzle tip, leaving behind carbonaceous deposits (coking). The micro-hole geometry and sac volume of this injector are optimized to minimize this residual fuel volume. During installation, technicians must ensure the copper combustion seal is perfectly seated; a compromised seal allows hot combustion gases to escape, rapidly overheating the nozzle and causing accelerated wear on the needle seat.

Integrating the 0445120415 into a heavy-duty engine management system is a closed-loop process. The injector is a Bosch common-rail platform component, typically utilized in commercial vehicle applications. It is essential to understand that this unit operates with an IQA/IMA calibration code (Injector Quantity Adjustment). This code represents the microscopic manufacturing variations unique to each injector. The ECU utilizes this code to adjust the injection pulse width. Failing to program this code during replacement results in cylinder imbalance, where the new injector delivers a slightly different fuel volume than the ECU expects, causing rough idling and uneven power distribution.

Q1: Why does a common-rail injector like the 0445120415 "click" or "tick" rapidly?
A: The ticking sound is the mechanical result of the solenoid armature moving at high speed and the needle valve striking its seat during the pilot and main injection events. It is completely normal for a functioning HPCR injector to produce a rhythmic, high-frequency clicking noise during engine operation.

Q2: Can a malfunctioning 0445120415 cause fuel to leak into the engine oil pan?
A: Yes. If the nozzle needle fails to seat properly due to internal debris or a fractured spring, fuel will continuously drip into the combustion chamber. This unburned fuel washes past the piston rings and mixes with the engine oil, leading to a rise in oil level and a distinct diesel smell in the crankcase.

Q3: What is the primary cause of "rail pressure bleed-down" after engine shutdown?
A: A rapid drop in rail pressure after shutdown usually indicates an internal leak. This can be caused by a worn control valve inside the injector or a compromised high-pressure pump check valve. Isolating the faulty injector via a return flow test is the standard diagnostic procedure.

Q4: How does contamination affect the multi-stage injection capability of this injector?
A: The control valve orifices are microscopic. Even fine particulate matter can partially block these orifices, slowing down the hydraulic bleed process. This delays the needle lift, causing the pilot injection to merge with the main injection, completely altering the combustion profile and increasing engine noise.

Q5: Are there different trim codes for the same 0445120415 part number?
A: Yes. Even within the same part number, the IQA/IMA calibration codes are unique to each individual injector. You must input the specific alphanumeric code laser-engraved on the injector body you are installing, not a generic code for the part number.

Q6: What should I check before condemning an injector for high return flow?
A: Ensure the fuel is not aerated and that the fuel temperature is within normal operating limits. Additionally, verify the integrity of the return line; a kinked or blocked return line will artificially inflate the return flow readings during a bench or onboard test.
