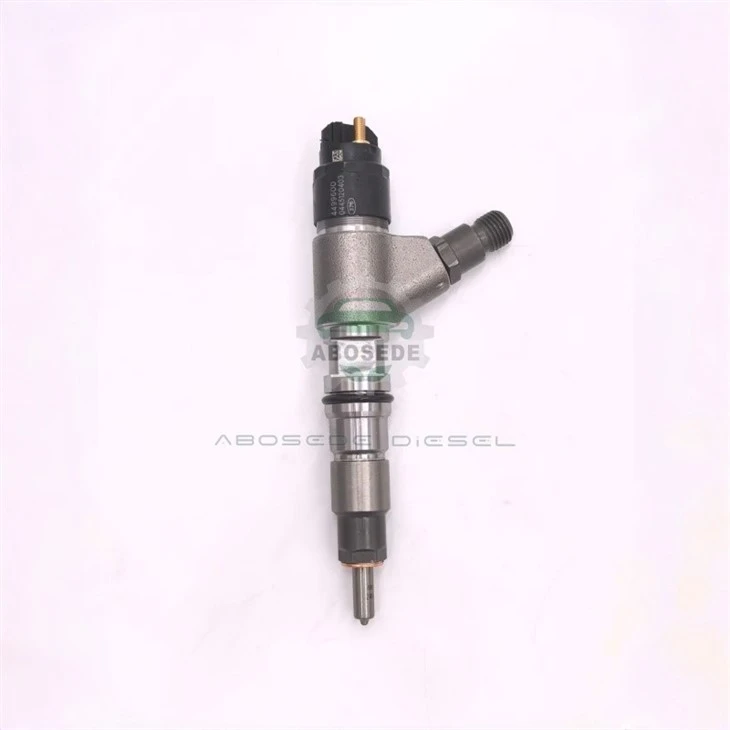

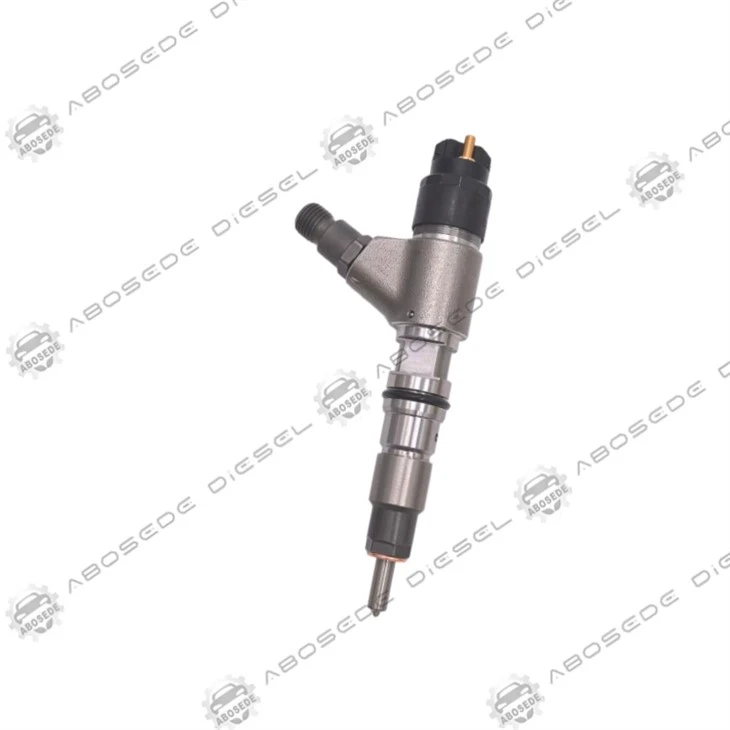

0445120403 COMMON RAIL INJECTOR – THREE-PORT TRANSFER FUNCTION RESTORATION FOR CUMMINS ISF DIESEL

A common rail injector should be evaluated as a three-port transfer device: hydraulic inlet, electrical command input, and spray output. The 0445120403 is not defined by one flow number alone. Its service value lies in restoring the transfer function at all three ports after wear. On Cummins ISF engines, injector-to-injector deviation changes cylinder balance, combustion noise, and DPF regeneration frequency. The sections below examine mechanical seating, solenoid response, hydraulic acceptance, and spray targeting without repeating a generic replacement narrative.

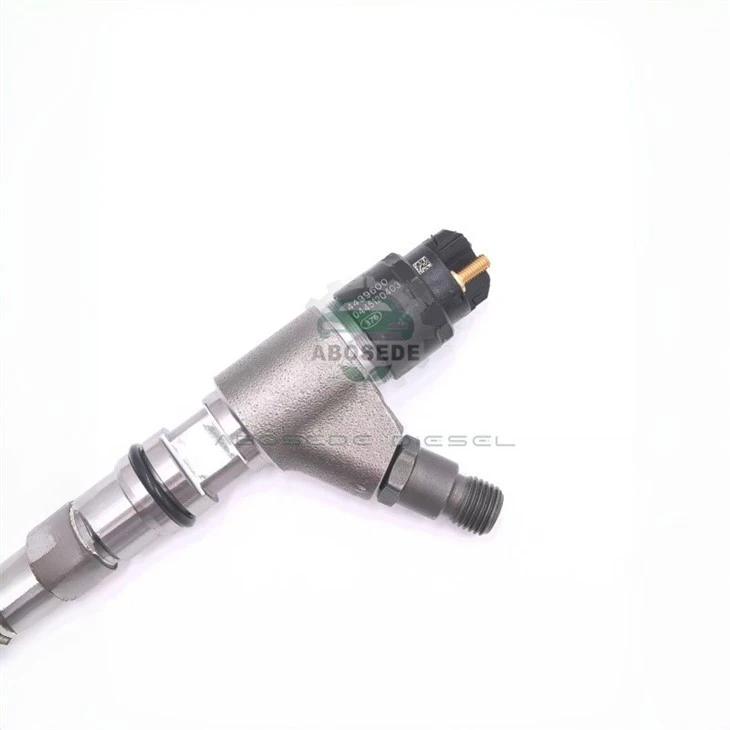

The housing and nozzle clamp determine how the injector sits in the cylinder head and how heat leaves the nozzle. Nominal data for the 0445120403: overall length about 130.5 mm; body diameter about 17.0 mm; high-pressure inlet M14 × 1.5; leak-off return M12 × 1.5; nozzle nut M20 × 1.5. The copper washer is not only a seal. It is the main thermal bridge from nozzle to head. A work-hardened washer raises nozzle-seat temperature and accelerates coking. Replace it and verify seat flatness ≤ 2 μm. Torque the inlet to 30–35 N·m with a new sealing washer. Over-torque stretches the housing and alters internal clearance.

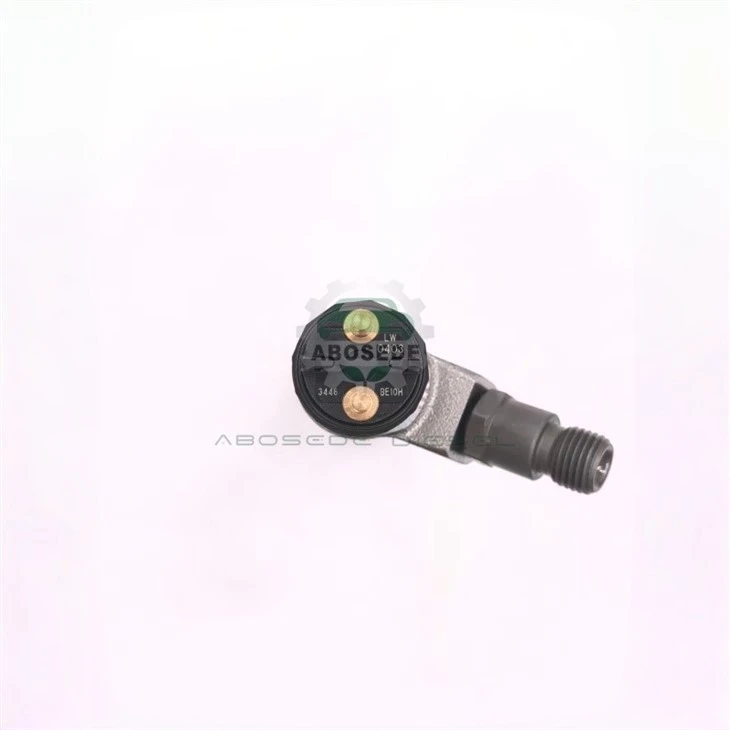

The 0445120403 uses a solenoid actuator. Its coil is driven by a peak-and-hold current profile: a boost pulse pulls the armature, then a lower hold current keeps the control valve open. Coil resistance is typically 0.25–0.35 Ω at 20 °C. A reading outside this window indicates winding damage or connector corrosion. The more useful metric is response time: armature pull-in should be ≤ 0.30 ms and drop-out ≤ 0.20 ms under a 70 V boost / 12 V hold profile. Slow drop-out lengthens the injection tail and raises HC and CO. Slow pull-in delays pilot injection and increases combustion noise. Measure current trace on a bench; do not infer response from resistance alone.

Flow grouping is where low-cost injectors often fail. The 0445120403 is normally supplied in flow classes. Mixing classes across cylinders produces uneven torque and can trigger cylinder-balance faults. A practical rebuild window: static back-leakage at 1600 bar ≤ 35 mL/min; idle delivery 1.8–2.2 mm³/stroke at 300 bar and 0.5 ms; full-load delivery within ±3 % of the OEM map at 1600 bar and 2.0 ms. Back-leakage is the first indicator of control-valve wear. As the valve seat erodes, return flow rises and rail pressure control becomes sluggish. Test at 300, 800, and 1600 bar, not at one pressure only.

Spray output is the third port. Hydraulic and electromagnetic errors become emissions here. The 0445120403 is commonly associated with a 6-hole nozzle. Exact hole diameter and included angle must be confirmed by the OEM nozzle code. Aftermarket nozzles with "similar" flow can shift spray penetration and wall wetting. On ISF engines, uneven spray produces higher soot at low load and more frequent DPF active regenerations. A rebuild should include spray-pattern check under strobe, not only flow measurement. Nozzle protrusion and copper washer thickness also affect spray targeting. A 0.10 mm change in protrusion is measurable in emissions.

Q1: Can I mix flow classes of 0445120403 across cylinders?
No. Flow-class mixing changes cylinder balance and can set imbalance faults. Replace as a matched set or verify each injector's class on a bench report.

Q2: Is it acceptable to reuse the copper washer?
No. The washer work-hardens and loses thermal contact. Reuse raises nozzle temperature and can cause coking and spray distortion.

Q3: What should I check before condemning the injector for a rail-pressure code?
Check low-pressure supply, fuel filter restriction, pressure relief valve, and leak-off flow first. A healthy injector can appear faulty when supply pressure is unstable.

Q4: How can I test solenoid resistance without removing the injector?
Measure at the connector with the harness disconnected. Compare cylinders. A deviation above 0.05 Ω or an open circuit points to coil or connector damage.

Q5: Is a remanufactured 0445120403 equivalent to a new injector?
Only if it includes new nozzle, control valve, and solenoid, plus a bench report with flow class, back-leakage, and response time. Cleaning and resealing alone is not remanufacturing.

Q6: What fuel contamination signs should trigger injector replacement?
Dark leak-off fuel, metallic particles in the return line, or rising back-leakage after filter service. Contamination usually damages the control-valve seat before the nozzle.
