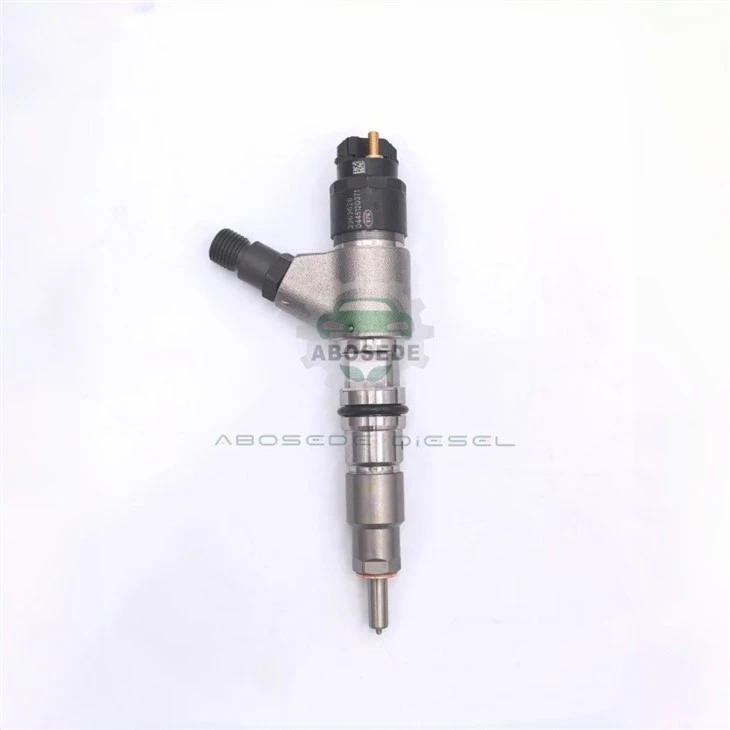

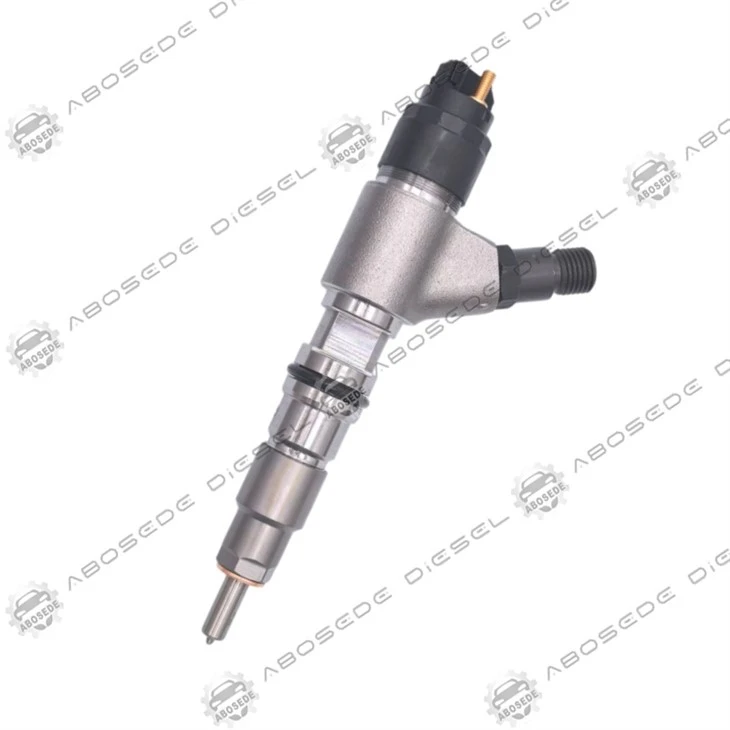

396-9626 / 0445120371 Common-Rail Injector – Thermal-Efficiency & High-Pressure Precision Module

Operating at the intersection of extreme heat and pressure, the 396-9626 (Bosch 0445120371) injector is not merely a hydraulic valve; it is a critical thermodynamic component. During combustion, the nozzle tip is exposed to cyclical temperatures exceeding 800°C. This dual-numbered unit (CAT 396-9626 and Bosch 0445120371) is engineered with specific metallurgical properties to resist thermal fatigue while maintaining structural integrity. Fuel acts as both an energy source and a coolant here-a continuous flow of diesel through the internal return circuit is essential to prevent the formation of carbon deposits (coking) on the nozzle tip. If the return flow becomes restricted, heat soak during engine shutdown can vaporize the residual fuel, leading to lacquer formation and subsequent spray distortion. Thus, evaluating the thermal profile and cooling circuit efficiency is as vital as checking the hydraulic flow.

In the high-pressure common-rail (HPCR) architecture, the 0445120371 utilizes an advanced servo-hydraulic control system. The core of this operation lies in the control chamber, where a precisely calibrated inlet orifice and an outlet throttle (controlled by the solenoid valve) dictate the pressure differential that lifts the needle. This injector is calibrated to deliver fuel at pressures up to 1,800 bar, with injection durations measured in microseconds. The manufacturing tolerances for the control piston and needle guide are measured in microns. When sourcing this component, buyers must recognize that a variance of just 1-2 microns in the control valve clearance can drastically alter the leak-off (backflow) rate, disrupting the ECU's ability to maintain target rail pressure. The flow mapping of the 396-9626 is optimized for specific combustion bowl geometries, ensuring that the spray plume penetration matches the engine's air-swirl characteristics.

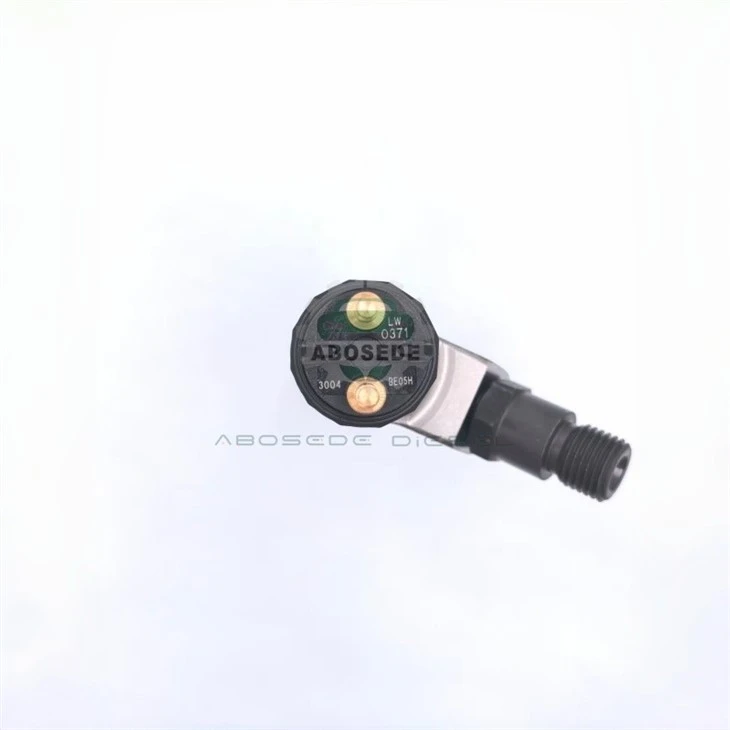

The electromagnetic actuator within the 0445120371 is designed for rapid response and precise dosing. The ECU drives the solenoid using a peak-and-hold current waveform. However, manufacturing variations in the coil winding and armature mass necessitate a unique calibration code (often referred to as the IQA/IMA or trim code) printed on the injector body. When integrating this unit into a Caterpillar or Perkins engine platform, programming this code is a mandatory step. It allows the engine management system to compensate for microscopic flow differences between cylinders, ensuring balanced power delivery and minimizing torsional vibration. Ignoring this electronic marriage results in an immediate mismatch between commanded and actual fuel delivery, manifesting as rough idling, increased particulate matter (PM) emissions, and potential long-term damage to the crankshaft bearings.

Diagnosing a suspected failure of the 396-9626 requires moving beyond subjective symptoms (like "rough running") to quantitative metrics. The most telling indicator of injector health is the dynamic return flow (leak-off) rate. As internal components wear-specifically the needle seat and the control valve-the backflow volume increases beyond the OEM specification. Technicians should utilize a calibrated leak-off testing kit to compare the volume of fuel returned from each injector over a specific time frame. Furthermore, electrical integrity must be verified by measuring the solenoid's resistance and inductance. An oscilloscope analysis of the actuator current waveform can reveal mechanical sticking or armature degradation. Regular oil analysis for fuel dilution is also a key preventative metric, as a failing injector often leaks unmetered fuel into the cylinder, washing down the cylinder walls.

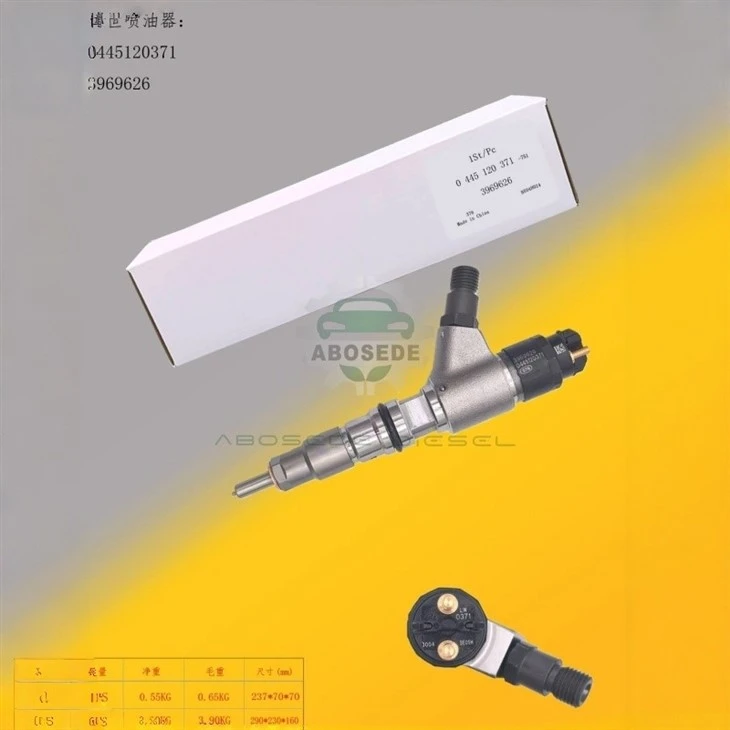

The dual nomenclature of this component-Caterpillar 396-9626 and Bosch 0445120371-presents a unique challenge in the aftermarket supply chain. While the core component is manufactured by Bosch, it is packaged and distributed under the CAT part number for dealer networks. Buyers must exercise vigilance against counterfeit or low-tier remanufactured units that fail to meet the stringent flow and calibration specifications of the original. When procuring, verify that the packaging seals are intact and that the laser-etched calibration code matches the physical unit. Ensure that any cross-reference to the 396-9626 explicitly guarantees compatibility with the 0445120371 hydraulic profile, as using an uncalibrated substitute can lead to premature high-pressure pump failure due to contaminated leak-off or incorrect pressure regulation.

Q1: How does the return circuit affect the thermal health of the 396-9626?
A: The return fuel carries heat away from the injector body, preventing the nozzle from coking after the engine is shut down. If the leak-off line is blocked or the internal return orifice is restricted, residual heat will cause the diesel to degrade into lacquer, clogging the spray holes.

Q2: Why does the same physical injector have both CAT (396-9626) and Bosch (0445120371) numbers?
A: This is a standard OEM dual-branding strategy. Bosch manufactures the injector, and CAT utilizes it in their engines (such as the C4.4 or C6.6). The internal hardware is generally identical, but procurement channels and packaging differ. Always cross-verify both numbers for accurate fitment.

Q3: Can a misprogrammed trim code cause black smoke?
A: Yes. If the calibration code (IQA/IMA) is not programmed into the ECU, the system defaults to a generic fuel map. This often results in over-fueling due to the injector's actual flow rate being higher than the default assumption, leading to incomplete combustion and black smoke.

Q4: What is the acceptable pressure drop during a leak-off test?
A: This varies by engine platform, but as a general rule, the leak-off volume from an individual injector should not exceed 20-30% of the lowest reading among the set, and must stay within the OEM manual's maximum threshold. Exceeding this indicates internal hydraulic wear.

Q5: What is the torque requirement for the high-pressure fuel line connection?
A: Overtightening the high-pressure inlet fitting can distort the conical seat inside the injector, leading to a pressure leak that can cut through the metal like a water jet. Always use a calibrated torque wrench and adhere strictly to the OEM specification (typically in the range of 30-40 Nm, but verify with the specific engine manual).

Q6: How can I differentiate between a faulty injector and a failing high-pressure pump?
A: A failing pump usually affects all injectors simultaneously, showing low rail pressure across the board. A single faulty injector (like the 0445120371) will often show high leak-off, specific cylinder misfire codes, or rail pressure drops that correlate with that specific cylinder's injection event. Testing the return flow is the best separating metric.
