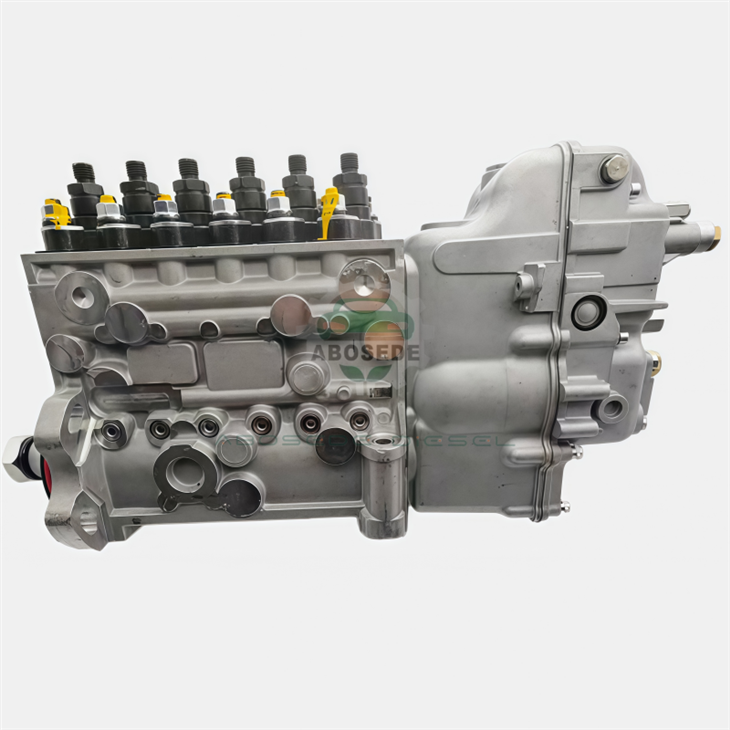

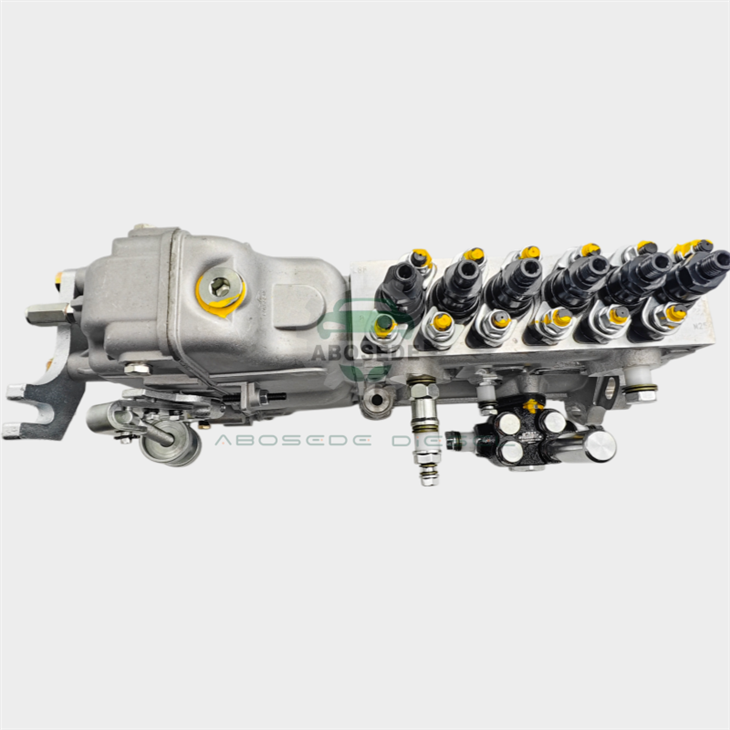

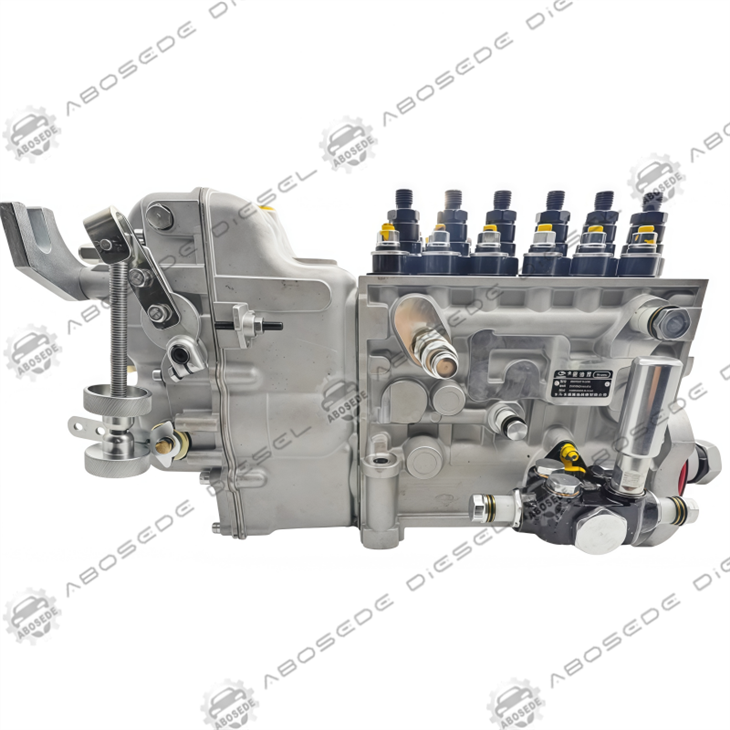

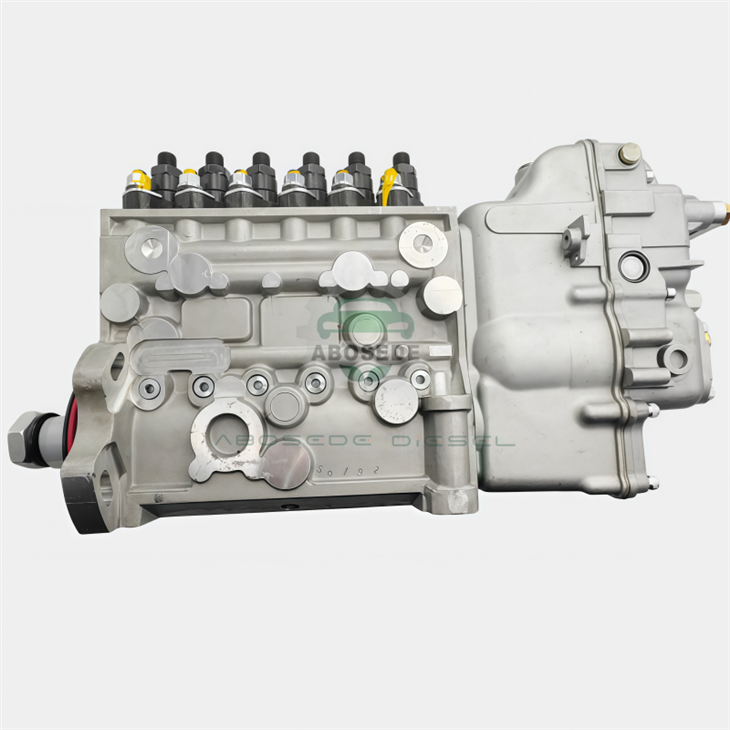

BHT6P120R Inline Fuel Injection Pump (OEM: 20194A / 1000943153) | Precision Diesel Feed For High-Pressure Common Rail Systems

In the realm of modern diesel diagnostics, a common rail system is only as strong as its supply chain. While high-pressure pumps (HPP) get the glory for generating 2000+ bar injection pressure, they are entirely dependent on the low-pressure feed stage to maintain a stable accumulator volume. This is where the BHT6P120R-cross-referenced with OEM codes 20194A and 1000943153-becomes critical.

This product detail page focuses not just on the pump as a spare part, but as a hydraulic stabilizer. For fleet managers and engine rebuilders, understanding the volumetric efficiency of this inline unit is key to preventing "rail pressure droop" under load. Unlike rotary vane pumps that may suffer from slip at high temperatures, the cam-driven architecture of the BHT6P120R ensures positive displacement, guaranteeing that the common rail accumulator receives a consistent, pulse-free supply of fuel regardless of RPM fluctuations.



🎯 Selection Logic: Why Upgrade or Replace with this Architecture?



When sourcing replacements for legacy heavy-duty engines or retrofitting systems, the choice between electronic unit pumps and mechanical inline feeders often comes down to reliability vs. complexity.

Positive Displacement Advantage: The BHT6P120R utilizes a reciprocating plunger design. This selection logic dictates that for high-viscosity fuels or cold-start scenarios, this pump provides superior suction capability compared to gear-type transfer pumps.

Decoupled Pressure Control: By using a robust mechanical feed pump like the 1000943153 variant, you isolate the feed pressure from the engine's oil gallery or vacuum systems. This independence simplifies troubleshooting-low rail pressure can be instantly isolated to the HPP or injectors, rather than guessing if the feed pump is at fault.

Thermal Efficiency: The cast-iron housing acts as a heat sink, managing the thermal expansion of fuel during recirculation. This is vital for maintaining the density of the fuel entering the high-pressure stage.

💡 Pro Tip: When replacing a 20194A unit, always verify the "Port and Helix" orientation. Even within the same model family, the intake and spill port timing can vary based on the specific engine firing order.





Precision engineering requires precise data. Ensure these specifications match your existing chassis or engine plate requirements.



Feature	Specification	Contextual Note
Primary Model	BHT6P120R	Heavy-duty inline configuration

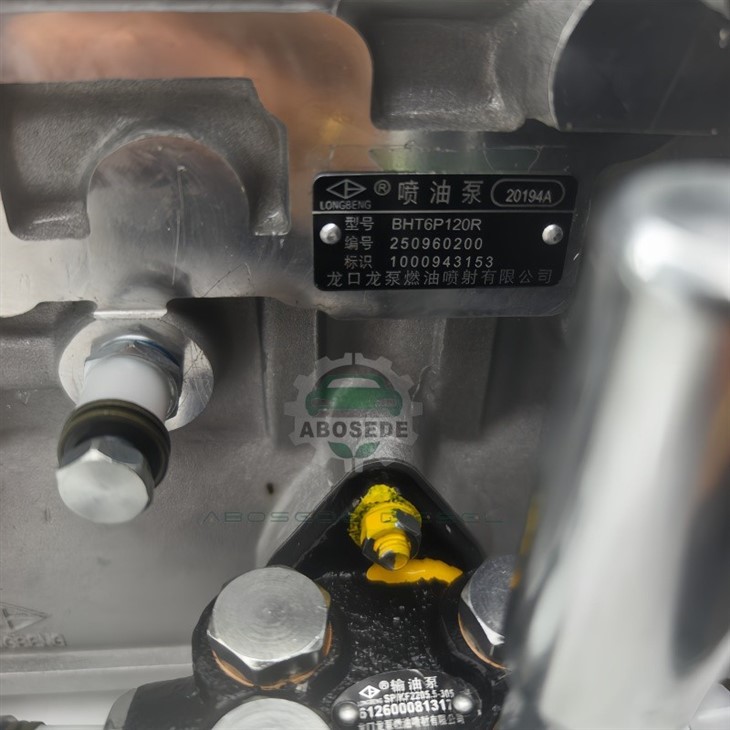

OEM Reference I	20194A	Often associated with specific truck/bus OEMs
OEM Reference II	1000943153	Alternative manufacturer cross-reference
Configuration	6-Cylinder Inline	Designed for I6 engine blocks
Drive Type	Gear/Cam Driven	Requires synchronization with engine timing
Lubrication	Fuel-Lubricated	No external oil bath required
Rotation	Right Hand (Clockwise)	Standard for most inline applications





The versatility of the 20194A / BHT6P120R platform makes it a staple in various sectors. Its ability to handle varying fuel qualities makes it indispensable in regions with inconsistent fuel infrastructure.

Heavy Commercial Transport: Specifically designed for 6-cylinder diesel engines found in rigid trucks and tractor-units.

Off-Highway Equipment: Excavators and wheel loaders benefit from the pump's resistance to vibration. The inline structure is inherently more balanced than single-piston alternatives.

Generator Sets (Gensets): In standby power applications, the immediate response of a mechanical feed pump ensures the engine picks up load without the lag associated with some electric lift pumps.

Marine Auxiliaries: The robust housing resists corrosion, making it suitable for auxiliary marine engines where saltwater exposure is a risk.





Maintaining the BHT6P120R is less about "fixing" and more about "preservation."

Filtration Integrity: Because this pump relies on diesel for lubrication, water ingress is the enemy. Water destroys the hydrodynamic film between the plunger and barrel. Always install a water-separating filter upstream.

Timing Synchronization: When installing part number 1000943153, static timing is crucial. Being out of phase by even a few degrees can lead to incomplete combustion and soot buildup in the DPF (Diesel Particulate Filter).

Leak-off Analysis: Monitor the return line flow. An increase in return fuel usually indicates worn pumping elements. If the return flow exceeds the manufacturer's specification, the pump is losing volumetric efficiency and should be rebuilt.





Q1: Is the BHT6P120R compatible with biodiesel blends (B20/B100)?
Yes, mechanically it handles biodiesel well due to its higher lubricity. However, seals and gaskets in older 20194A variants may need upgrading to Viton or to prevent swelling or degradation over time.

Q2: What is the difference between the 20194A and 1000943153 codes?
These are likely cross-reference numbers from different OEMs or manufacturing plants. While functionally identical in basic operation, there may be subtle differences in governor spring rates or port locations. Always check the physical dimensions against your current unit.

Q3: Can this pump be used to upgrade a weak electric lift pump system?
Absolutely. Many enthusiasts swap failing electric systems for the BHT6P120R mechanical setup to gain reliability and eliminate electrical failure points, provided the engine block has the necessary drive gear provision.

Q4: How does this pump affect DPF regeneration cycles?
A worn pump causes poor atomization in the injectors, leading to incomplete combustion and excess soot. Replacing the BHT6P120R restores proper injection characteristics, helping to normalize DPF regen intervals.

Q5: Does this unit come pre-timed?
No. Inline pumps like the BHT6P120R must be timed to the engine upon installation using a dial indicator to set the correct piston position relative to Top Dead Center (TDC).

Q6: What causes "knocking" sounds near the pump?
This is often caused by air in the fuel lines or a stuck advance mechanism. Bleed the system thoroughly before starting the engine after installation.
