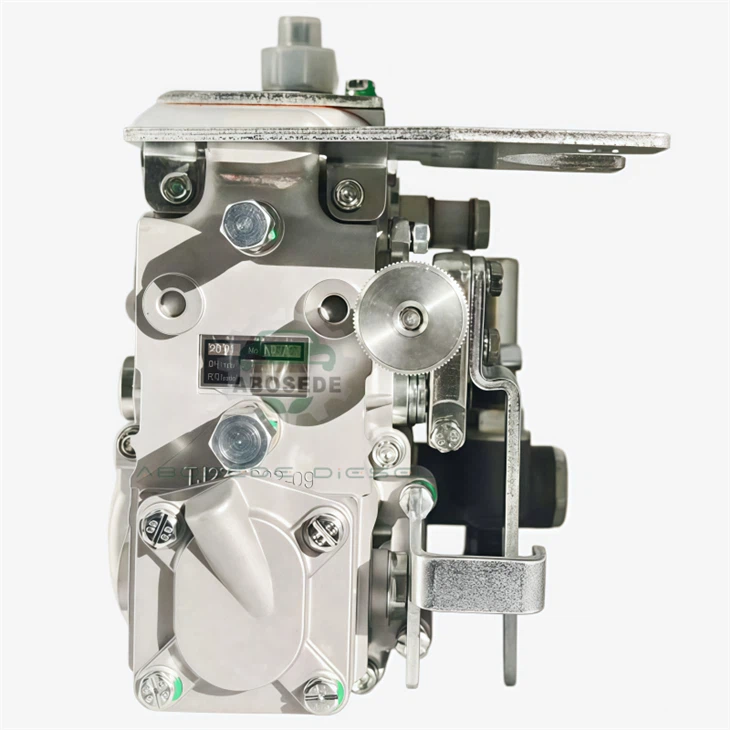

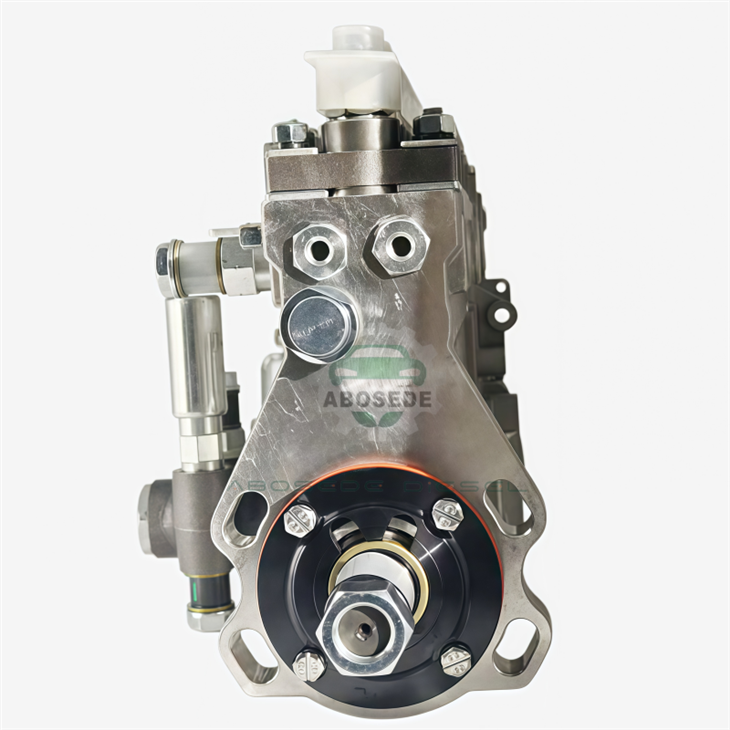

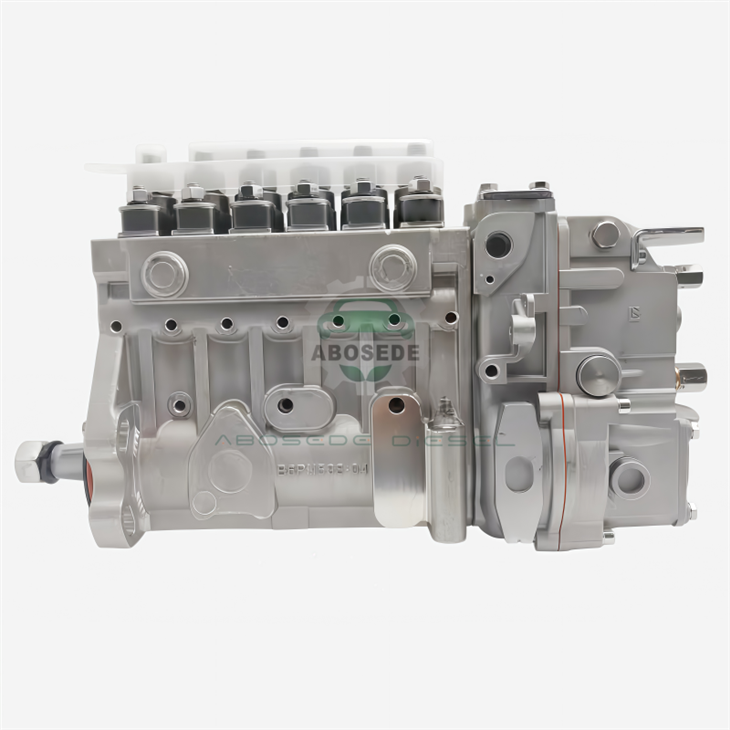

BH6PN120R / B6PN960 Inline Fuel Injection Pump | High-Performance Diesel Feed System For Common Rail & Heavy-Duty Engines

In the rapidly evolving landscape of diesel propulsion, where electronic precision often overshadows mechanical durability, the BH6PN120R (B6PN960) injection pump stands as a testament to robust engineering. While modern Common Rail systems rely on ultra-high pressure (up to 2500 bar) for atomization, they still require a feed system that guarantees unwavering stability and precise metering at the source. This inline pump is not merely a replacement part; it is the foundational "heart" of the fuel system, designed to deliver consistent flow dynamics essential for maintaining rail pressure stability under extreme load variations.

For OEMs and fleet managers, integrating or maintaining engines with this pump means prioritizing longevity and serviceability over disposable technology. It represents the critical interface where low-pressure supply meets the rigorous demands of high-performance combustion chambers.



🔍 Selection Logic: Why Choose This Architecture?



When evaluating fuel systems for heavy-duty applications, the decision to utilize an inline pump architecture like the BH6PN120R/B6PN960 often comes down to three engineering pillars:

Torque Resilience: Unlike rotary distributors which can struggle with lubrication at high pressures, this inline design utilizes a camshaft-driven plunger mechanism. This ensures that injection pressure rises effectively with engine speed, providing the necessary torque curve for heavy loads.

Cylinder-to-Cylinder Balance: In multi-cylinder configurations, this pump ensures uniform fuel delivery. For Common Rail applications acting as a high-pressure generator, this balance is crucial to prevent pressure ripples in the rail accumulator.

Maintenance Economy: The modular nature of the "P" series pumps allows for individual cylinder repair. This drastically reduces downtime compared to sealed unit injectors or monolithic rotary pumps.

💡 Engineering Note: When selecting this pump for a retrofit or rebuild, verify the cam profile matches your engine's firing order requirements. The "120R" designation typically implies specific timing and rotation characteristics suited for standard clockwise rotation engines.





Precision is non-negotiable. Below are the operational parameters for the BH6PN120R/B6PN960 series.



Parameter	Specification	Notes

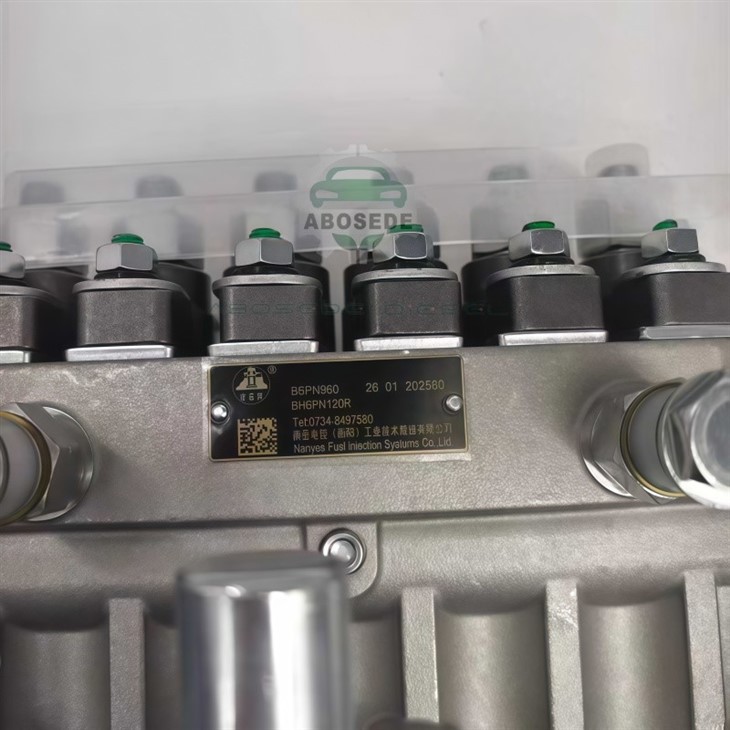

Model Series	BH6PN120R / B6PN960	Inline configuration
Cylinder Count	6-Cylinder	Suitable for inline-6 engines
Plunger Diameter	Standard "P" Type	Optimized for high volumetric efficiency
Rotation Direction	Right (Clockwise)	Verified via drive shaft orientation
Drive Type	Camshaft Driven	Direct coupling or gear-driven
Lubrication	Self-lubricating (Diesel)	Requires clean fuel (ISO cleanliness code applicable)
Governor	Mechanical / Pneumatic	Depending on sub-model variant





The versatility of the BH6PN120R/B6PN960 makes it a staple in industries where engine failure is not an option. Its design supports both direct injection setups and acts as the primary pressure generation stage for hybrid common rail conversions.

Heavy-Duty Trucks & Logistics: Ideal for long-haul transport vehicles requiring consistent fuel mapping over hundreds of thousands of kilometers.

Stationary Power Generation: Its ability to maintain steady RPMs under varying electrical loads makes it perfect for diesel generator sets.

Marine Auxiliary Engines: The corrosion-resistant coatings often applied to the "R" variants provide added protection in humid marine environments.

Construction Machinery: Excavators and loaders benefit from the pump's high torque rise capability at low RPMs.





Understanding the internal geometry of the BH6PN120R reveals why it excels in high-stress environments.

The Cambox & tappets: The heart of the system. The camshaft converts rotary motion into linear reciprocating motion. The "P" type tappets are designed to minimize friction, ensuring that energy transfer from the engine to the fuel pressurization is maximized.

Delivery Valves: These act as check valves, preventing backflow from the high-pressure line (or rail) into the pump during the suction stroke. In Common Rail contexts, these valves must dampen pressure spikes to protect the rail sensor.

Control Rack & Sleeve: This mechanism adjusts the effective stroke of the plunger. By rotating the plunger via the rack, the spill port is uncovered at different times, precisely controlling the volume of fuel injected.

Integration with Common Rail: While traditionally a standalone injector pump, the B6PN960 architecture is frequently adapted to feed high-pressure accumulators. In this role, its pulsation damping capabilities are critical to smoothing out the input for the rail pressure sensor.





Q1: Can the BH6PN120R be used as a feed pump for a modern Common Rail conversion?
Yes. Due to its robust construction and ability to generate significant pressure head, it is often utilized as the high-pressure supply stage in custom Common Rail builds, provided the flow rate matches the rail demand.

Q2: What does the "R" in the model number signify regarding installation?
The "R" generally denotes a Right-hand (clockwise) rotation when viewed from the drive end. Installing this on an engine requiring counter-clockwise rotation without modification will result in zero fuel delivery.

Q3: How does this pump handle cold start conditions?
The mechanical governor and advance mechanisms are calibrated to provide richer mixtures and advanced timing during cranking, aiding cold starts-a distinct advantage over some early electronic systems.

Q4: Are spare parts readily available for the B6PN960 series?
Yes, due to the standardized "P" type elements and widespread industrial adoption, repair kits (plungers, delivery valves, gaskets) are globally accessible.

Q5: Is this pump compatible with biodiesel blends?
Generally, yes. However, prolonged use of high-percentage biodiesel may degrade certain rubber seals. We recommend upgrading to Viton seals if operating on B20+ blends.

Q6: What is the typical overhaul interval for this unit?
Under standard operating conditions with proper filtration, a major overhaul is typically recommended between 8,000 to 12,000 operating hours, depending on the specific duty cycle.
