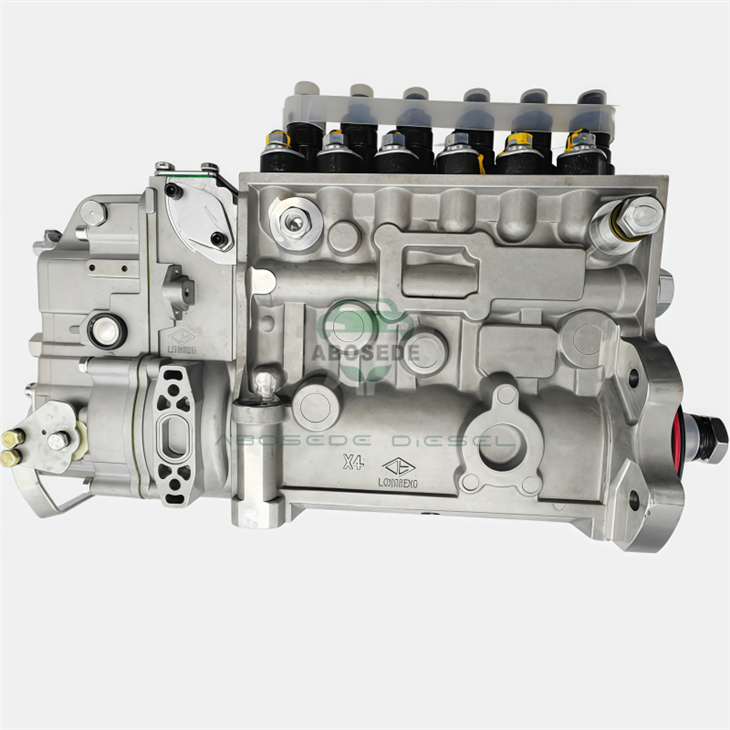

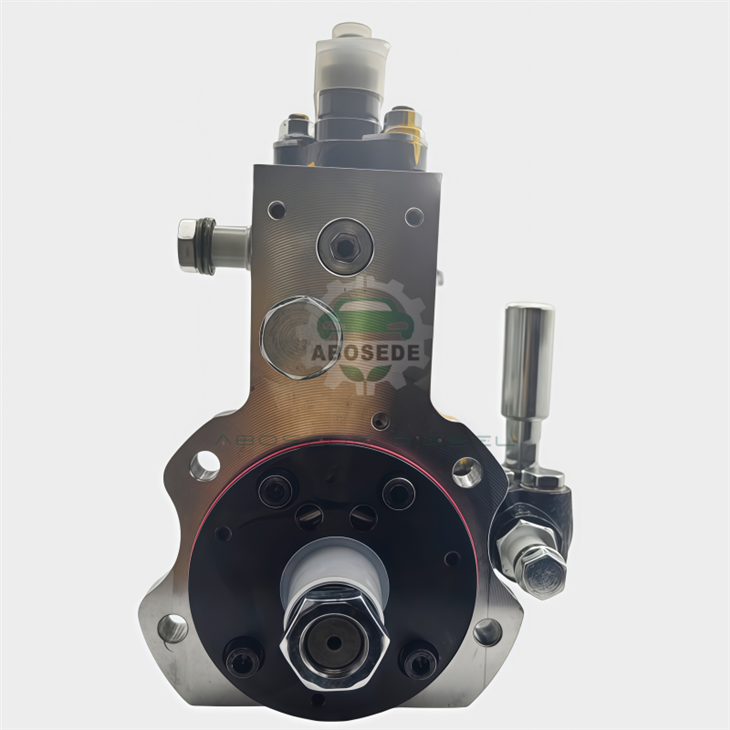

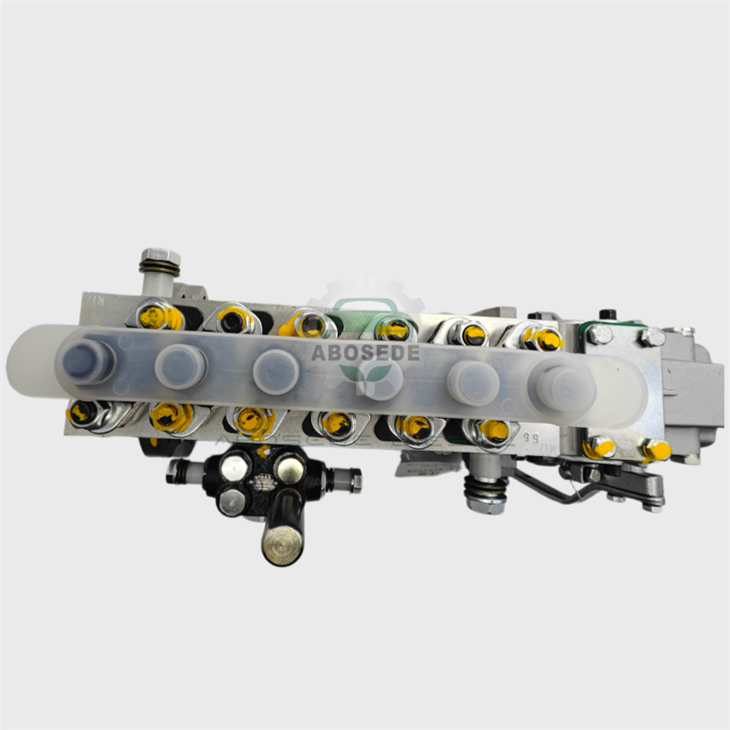

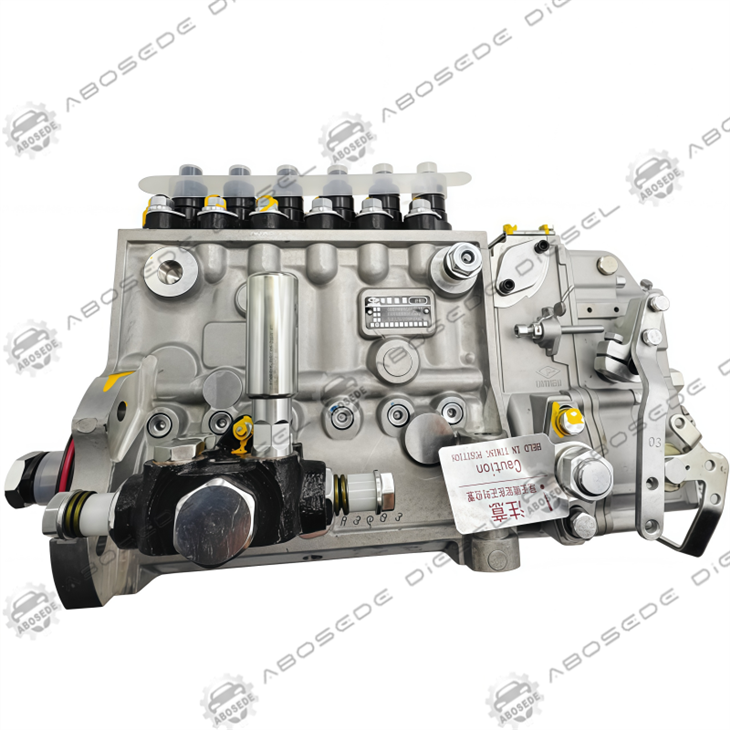

BH6P120/57B3 Inline Fuel Injection Pump | High-Efficiency Feed Solution For Tier 4 & Common Rail Diesel Engines

In an era where emissions regulations like Euro VI and Tier 4 Final demand absolute precision, the role of the mechanical fuel feed pump is often undervalued. Yet, even the most sophisticated Common Rail systems rely on a steady, pulse-free supply of fuel to function correctly. The BH6P120/57B3 is not merely a legacy component; it is a high-performance hydraulic interface designed to bridge the gap between the fuel tank and the high-pressure accumulator.

For engine rebuilders and OEMs, the BH6P120/57B3 represents a specific engineering philosophy: Robustness through Simplicity. While electronic unit pumps are sensitive to voltage spikes and ECU glitches, this inline mechanical system relies on physical cam profiles and hydraulic pressure. This article explores how the BH6P120/57B3 serves as a critical "heart" for modern diesel applications, ensuring that the rail pressure remains stable even under the most extreme load fluctuations found in heavy-duty logistics and off-highway industries.



🎯 Selection Logic: Why Choose the Inline Architecture?



When specifying fuel systems for heavy-duty applications, the decision matrix often favors reliability over marginal efficiency gains. Here is why the BH6P120/57B3 is the logical choice for demanding environments:

Positive Displacement vs. Centrifugal Force: Unlike electric lift pumps or centrifugal transfer pumps which can suffer from cavitation at high altitudes or temperatures, the inline piston design of the BH6P120/57B3 provides positive displacement. It physically forces fuel into the system, guaranteeing volume regardless of external atmospheric conditions.

Decoupled Control: By using a mechanically governed feed pump, you isolate the fuel delivery from the vehicle's electrical architecture. This reduces the points of failure in the wiring harness-a key consideration for mining and marine applications where corrosion and vibration destroy electronics.

Scalability: The modular nature of the "P" series allows for easy adaptation. Whether feeding a classic injection system or acting as the pre-stage for a modern Common Rail setup, the 57B3 variant offers the flow headroom necessary for performance tuning.

💡 Technical Insight: When selecting this pump, verify the Cam Profile matches your engine's firing order. The "57B3" suffix typically indicates a specific cam timing optimized for low-end torque response.





Precision is paramount. Ensure these specifications align with your engine data plate before ordering.



Parameter	Specification	Operational Context

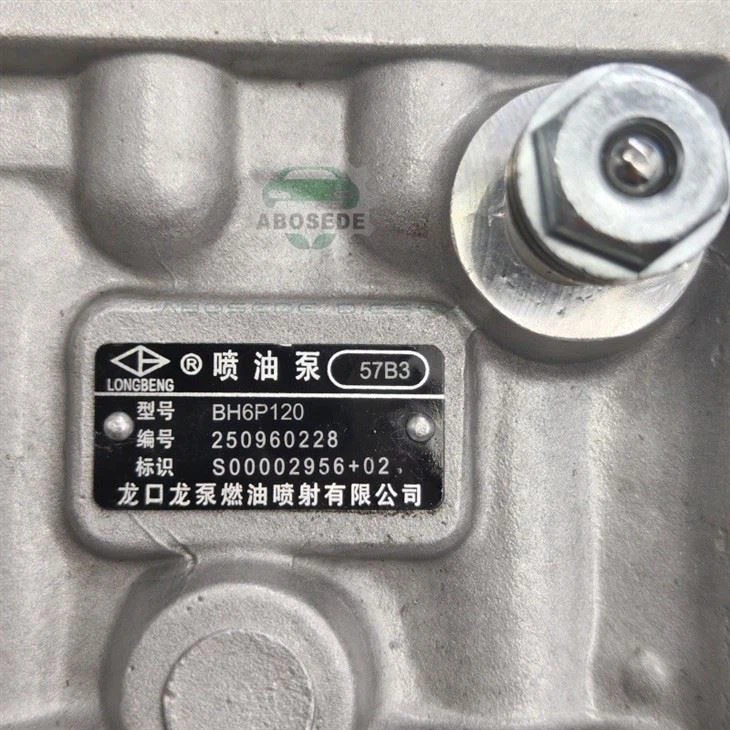

Model Series	BH6P120/57B3	Heavy-Duty Inline Configuration
Cylinder Arrangement	6-Cylinder Inline	Matches standard I6 engine blocks
Drive Mechanism	Camshaft Driven	Direct gear coupling recommended
Rotation Direction	Right (Clockwise)	Viewed from drive end
Lubrication Type	Self-Lubricating (Diesel)	Requires ISO-clean fuel filtration
Governor Type	Mechanical / Hydraulic	Depending on sub-variant
Plunger Type	P-Type (Barrel & Plunger)	High-durability lapped fit





The BH6P120/57B3 is engineered for sectors where downtime equates to significant financial loss. Its ability to handle varying fuel viscosities makes it a global standard.

Heavy Commercial Transport: Ideal for long-haul trucks traversing varied terrains. The pump's ability to maintain consistent rail pressure prevents "power dips" during uphill climbs.

Construction & Earthmoving: Excavators and wheel loaders operate in high-vibration environments. The solid metal construction of the BH6P120/57B3 withstands shock loads that would shatter ceramic components in electronic pumps.

Stationary Power Generation: For diesel generator sets, frequency stability (Hz) is tied directly to RPM stability. This pump ensures smooth fuel delivery, preventing frequency hunting under fluctuating electrical loads.

Agricultural Machinery: Modern tractors with Tier 4 engines often use these pumps as the primary feed stage for their Common Rail systems, benefiting from the mechanical simplicity during harvest seasons.





To understand the longevity of the BH6P120/57B3, we must look inside the "cambox."

The Cam and Tappet Assembly
The heart of the pump is the camshaft. In the 57B3 variant, the cam lobes are ground to a profile that minimizes "jerk" (rate of change of acceleration). This smooth lift curve reduces stress on the tappets and extends the life of the drive gears.

Plunger and Barrel Dynamics
The "P" type elements utilize a helix-cut plunger. As the control rack rotates the plunger, the helix uncovers the spill port, ending the injection cycle. This mechanical timing is incredibly precise. In a Common Rail context, this pump acts as the "feeder," pressurizing the rail to a base level (e.g., 10-20 bar) before the high-pressure radial pump takes over.

Damping and Filtration
Many variants of the BH6P120 include internal damping springs to smooth out pressure pulses. This is crucial for protecting delicate rail pressure sensors downstream. The robust cast-iron housing also acts as a heat sink, dissipating thermal energy generated by friction.





Q1: Can the BH6P120/57B3 be used as a standalone pump without a Common Rail?
Yes. While excellent as a feed pump, it was originally designed for direct inline injection systems. It functions perfectly in older mechanical engines provided the injector opening pressures are matched to the pump's output.

Q2: What does the "57B3" suffix indicate regarding compatibility?
This suffix usually denotes specific internal adjustments, such as governor spring rates or cam timing profiles tailored for a specific OEM (e.g., specific truck or tractor models). Always cross-reference the full part number.

Q3: How does this pump perform in extreme cold (-30°C)?
The positive displacement design handles cold, viscous fuel better than rotary vane pumps. However, ensure you use winter-grade diesel or anti-gel additives to prevent wax buildup which can clog the intake galleries.

Q4: Is it possible to convert this pump for electronic control?
Yes, "mechatronic" conversions exist where the mechanical governor is replaced with an electronic actuator (PWM controlled). This allows for integration with modern ECUs while retaining the mechanical durability of the pump body.

Q5: What is the typical service interval for the plungers?
Under ideal filtration conditions, P-type elements can last 8,000 to 10,000 hours. However, in dusty environments or with poor fuel quality, inspection is recommended every 4,000 hours.

Q6: Does this pump require priming?
Yes. After installation or filter changes, the system must be primed to remove air. Air pockets can cause "dry running," which damages the cam and tappet surfaces instantly.
