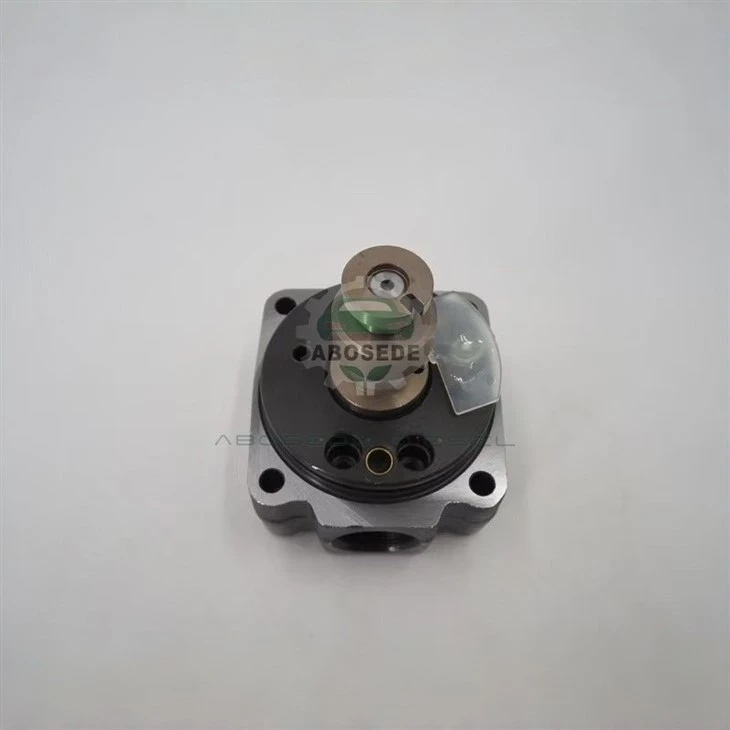

096400-1240 Head Rotor For Toyota 14B D850 – Wear-Predictable Diesel Pump Head For Continuous Industrial Duty

In continuous-duty diesel operation, the pump head is more than a pressure generator-it is a wear record. The 096400-1240 head rotor for Toyota 14B D850 engines is specified around that principle: predictable wear progression, stable delivery under sustained load, and a plunger-bore fit that tolerates real-world industrial fuel quality better than low-cost substitutes. Instead of treating replacement as a reactive repair, this assembly is positioned for maintenance planning where downtime cost exceeds part cost.

Model: 096400-1240

Component: High-pressure diesel pump head / head rotor assembly

Matched engine family: Toyota 14B, D850 applications

Housing material: Heat-treated high-carbon alloy steel

Plunger and barrel: Micron-level clearance control for low internal leakage

Bore finish: Precision-honed to reduce scuffing during cold starts and load changes

Delivery geometry: Calibrated for the 14B/D850 pump family-verify outlet count and cam profile against the original unit

Sealing interface: Machined for flatness and stable O-ring seating

Cross-reference: Confirm against pump nameplate and OEM number before ordering

Toyota 14B D850 platforms often operate in forklift, generator, marine auxiliary, and industrial power units where vibration, dust, and long hours are normal. In these conditions, the pump head must hold delivery consistency without the frequent cool-down cycles of passenger vehicles. The 096400-1240 is intended for those sustained-load profiles: stable pressure holding at low-to-mid speed, reduced delivery scatter after heat soak, and better recovery when the engine returns to idle after prolonged load. It is not a universal head rotor; the internal metering characteristics are specific to this pump family.

A pump head rarely fails without warning. The useful signals are trend-based: rising leak-off volume, longer cranking before pressure build-up, white smoke at cold start, and power loss under load that does not respond to filter changes. On 14B D850 units, these signs often appear before hard failure. The 096400-1240 is manufactured with controlled bore roundness and plunger diameter consistency so that wear progresses in a more predictable pattern, making scheduled replacement easier to justify than emergency shutdown.

Even where the 14B D850 platform uses a conventional high-pressure diesel pump architecture, the diagnostic logic overlaps heavily with common rail practice. Leak-off trend analysis, pressure decay after shutdown, and contamination mapping are the same three lenses technicians use on common rail systems. The 096400-1240 should therefore be evaluated with the same discipline: verify pressure holding, check return flow, and inspect fuel for abrasive particles before condemning the head rotor. This cross-application thinking reduces misdiagnosis and prevents unnecessary injector replacement.

1. Can the 096400-1240 replace every head rotor used on Toyota 14B D850 engines?
No. It is matched to a specific pump family. Always verify the pump nameplate, outlet geometry, and cam profile against the original unit before ordering.

2. In continuous industrial duty, should I replace by hours or by symptoms?
Use both. Track leak-off volume and cold-start behavior; when trends shift alongside power loss, plan replacement before unscheduled downtime.

3. How sensitive is this pump head to water in diesel?
Water causes pitting on plunger surfaces and accelerates bore wear. A functioning water separator and disciplined filter changes matter more than any additive.

4. Is a full bench test required after installation?
Not always, but a leak-off test and pressure-holding check are strongly recommended. Full-load validation should follow only after basic pressure stability is confirmed.

5. How do I separate pump head wear from injector faults?
Compare return flow across outlets, check smoke color under load, and perform cylinder cut-out tests. A worn head rotor usually shows pressure decay and rising leak-off before injector balance drifts.

6. What is the most common installation mistake with this assembly?
Reusing a worn cam ring or skipping cleanliness control. Both cause early scoring and make the new head rotor appear defective.
