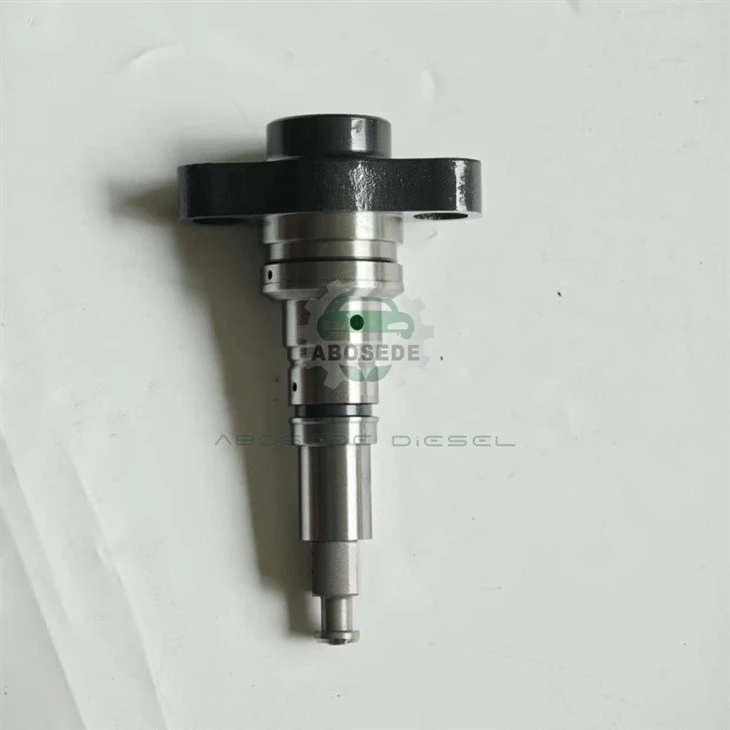

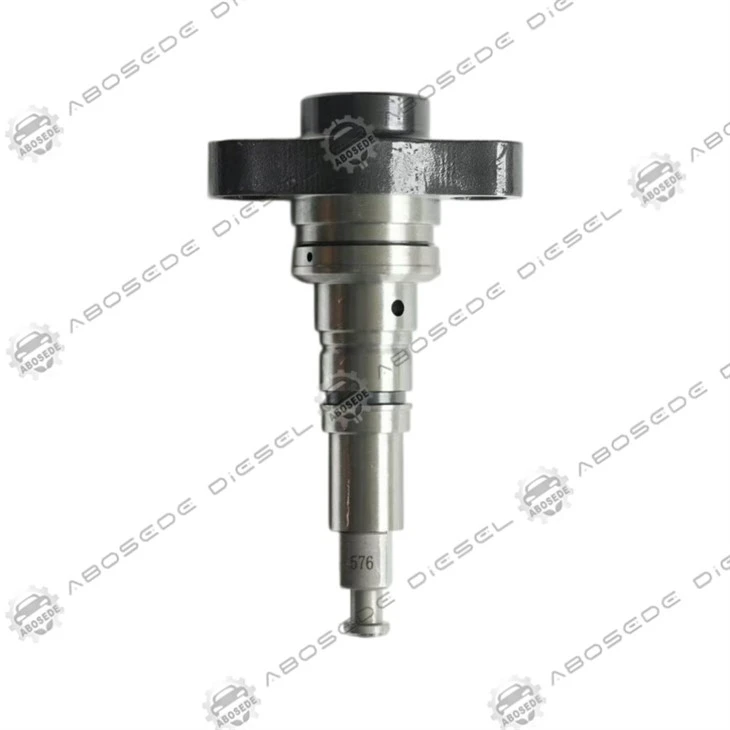

576 Plunger And Barrel Assembly: The Micron-Scale Fit That Decides Diesel Pump Metering Accuracy

A plunger and barrel assembly does not have a performance curve in the usual sense. It has a clearance, a sealing length and a surface finish, and those three values determine how much fuel leaks past the plunger during the delivery stroke. The 576 plunger and barrel assembly is a precision-matched pair used in diesel injection pump rebuilding, and its quality is best described by the leakage it permits at a defined pressure and temperature rather than by its external dimensions. That leakage figure is the single number that separates a pair that will meter accurately for thousands of hours from a pair that will drift within weeks. This page treats the assembly as a controlled leakage element, which is also the correct frame for understanding how common-rail high-pressure components achieve their own metering precision.

The diametral clearance between plunger and barrel on the 576 assembly is measured in the low single-digit micron range. That clearance must be large enough to permit lubrication by diesel fuel and small enough to limit leakage during the high-pressure delivery stroke. Leakage through an annular gap scales with the cube of the clearance, so a change of one micron alters leakage by a factor of several. This is why the pair is matched and never interchangeable: a plunger from one barrel will not produce the specified leakage in another, even if both are nominally the same size. In common-rail high-pressure pumps the same principle governs the plunger that feeds the rail, and in common-rail injectors the control plunger relies on the same order of clearance to hold the control chamber pressure.

Clearance alone does not determine leakage; the length over which the clearance is maintained does. The 576 assembly is lapped so that the sealing length is uniform along the plunger stroke, which means leakage remains stable as the plunger moves through its delivery range. A pair with a shorter effective sealing length leaks more at the beginning of the stroke and less at the end, producing a delivery curve that is not linear with plunger travel. That non-linearity is difficult to diagnose on the engine because it appears as a mild power variation rather than a clear fault. Measuring leakage at two plunger positions, not one, exposes it.

The lapped surface of the plunger and barrel is not polished to a mirror finish; it carries a controlled roughness that retains a fuel film and promotes even wear. A pair finished too smooth will scuff because the fuel film cannot establish itself. A pair finished too rough will wear quickly and increase clearance. The 576 assembly is specified with a roughness range rather than a single value, and that range is what allows a short running-in period without measurable leakage change. When a rebuilt pump shows rising leakage in the first hours, surface finish or fuel cleanliness is the first thing to check, not the clearance.

Leakage must be measured at a stated fuel temperature and pressure, because both affect viscosity and therefore flow through the clearance. A leakage figure quoted without temperature and pressure is not comparable with any other figure. For workshop records, log leakage at the same temperature and pressure every time, so that trend comparison between repairs becomes possible. The same discipline applies to common-rail injector return flow measurement, where temperature control is equally decisive.

Q1: Can a 576 plunger be replaced without replacing the barrel?
No. They are lapped as a matched pair, and mixing components destroys the specified clearance and leakage.

Q2: What leakage figure should I expect from a new 576 assembly?
It depends on the test pressure and fuel temperature. Request the figure with both conditions stated; a leakage number without them cannot be compared.

Q3: Why does leakage rise quickly on some rebuilt pumps?
Surface finish outside the specified roughness range, contaminated fuel, or incorrect installation. Check finish and fuel cleanliness before suspecting the pair.

Q4: How does this relate to common-rail high-pressure components?
The same clearance-controlled leakage principle applies to the high-pressure pump plunger and the injector control plunger. The 576 assembly is a direct illustration of that principle.

Q5: Does a smoother surface always mean better performance?
No. A controlled roughness retains the fuel film. Too smooth causes scuffing; too rough causes rapid wear.

Q6: What record makes a rebuild traceable?
The matched pair number, clearance range, leakage at stated pressure and temperature, surface roughness specification and installation date.
