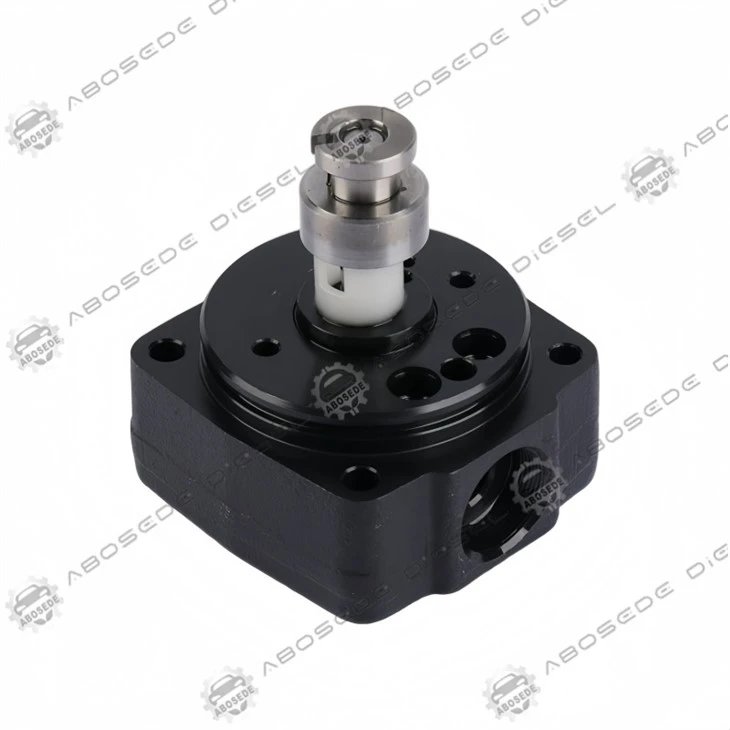

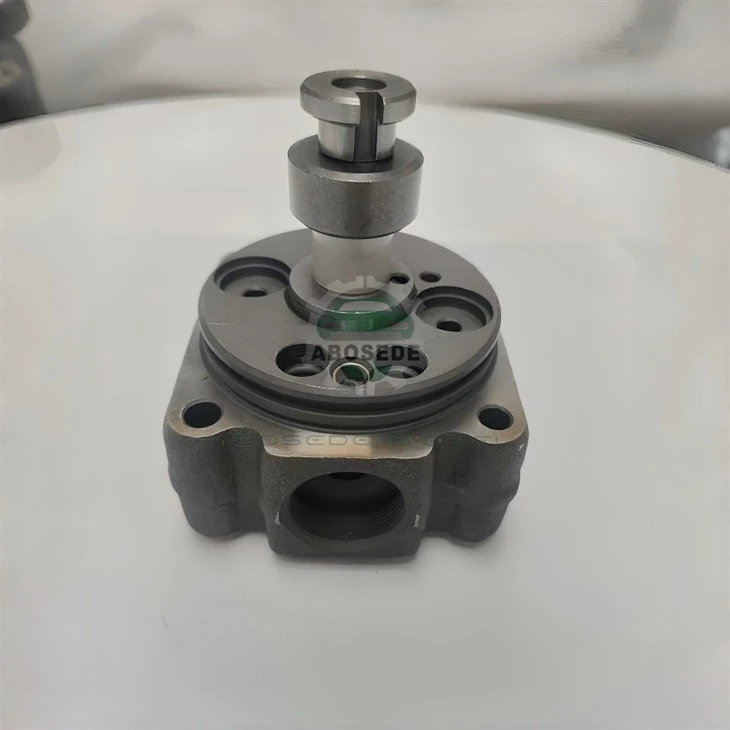

096400-1230 Head Rotor Assembly For Toyota 1Z – Common Rail Pump Head With Enhanced Pressure Stability

When common rail systems drift out of their designed pressure window, the first component under scrutiny is rarely the ECU or injectors-it is the pump head. The 096400-1230 head rotor assembly is engineered to restore the pressure-wave consistency that Toyota 1Z diesel engines depend on for stable idle, clean combustion, and repeatable injection timing. Rather than treating this part as a simple wear item, it should be evaluated as a precision pressure-shaping component that directly influences rail pressure ripple and meter-in accuracy.

Model: 096400-1230

Component type: Common rail pump head / head rotor assembly

Compatible engine family: Toyota 1Z, 1Z-FE diesel

Housing material: High-carbon alloy steel with controlled heat treatment

Plunger-to-barrel clearance: maintained within micron-level tolerance for low leakage and stable pressure build-up

Surface finish: precision-honed internal bores to reduce scuffing during cold starts

Flow characteristics: calibrated for consistent delivery across low-to-high rail pressure ranges

Operating temperature range: suitable for continuous diesel duty cycles

Cross-reference note: verify against OEM pump number before ordering

The 096400-1230 sits at the high-pressure stage of the common rail pump, where fuel is pressurized before entering the rail. Its internal plungers and bores determine how efficiently pressure is generated and how quickly the system recovers after each injection event. On Toyota 1Z engines, this translates into smoother hot restart behavior, reduced pressure overshoot at low load, and more predictable pilot injection quantities. For workshops diagnosing rough idle or intermittent rail pressure codes, the pump head is often the first mechanical interface worth inspecting after filters and sensors.

This assembly is primarily matched to Toyota 1Z diesel platforms, including naturally aspirated and turbocharged variants that use the corresponding Denso common rail pump architecture. It is not a universal head rotor; the plunger count, cam profile, and outlet geometry are specific to this pump family. Buyers should confirm the pump's OEM number and engine code before ordering, because visually similar head rotors can differ in internal metering characteristics. The 096400-1230 is intended for direct replacement in applications where the original pump head has experienced scoring, pressure loss, or fuel leakage past the plunger.

Two pump heads can look identical externally yet behave very differently once installed. The difference usually lies in tolerance stack-up: plunger diameter consistency, bore roundness, and the alignment of the delivery valve seat. This assembly is produced with a focus on controlling those three variables simultaneously, because a single out-of-round bore can create localized pressure spikes that accelerate wear on injectors and the rail pressure sensor. The heat treatment process is also specified to balance hardness with dimensional stability, avoiding the brittle behavior that often causes premature cracking in low-quality replacements.

1. How can I tell if my 096400-1230 pump head is failing rather than the rail pressure sensor?
Look for pressure decay after engine shutdown, metal debris in the fuel return, or a persistent low-pressure code that does not respond to sensor replacement. A leak-off test at the pump head outlet usually separates mechanical wear from sensor drift.

2. Is this head rotor suitable for both cold-climate and high-ambient operation?
Yes, provided the fuel system is maintained according to the engine manufacturer's schedule. Cold starts place extra load on the plunger-bore fit, so using the correct winter-grade diesel and avoiding contaminated fuel is more important than changing the part specification.

3. Why do some replacement pump heads fail within a few thousand kilometers?
Most early failures trace back to contaminated fuel, incorrect installation torque, or reusing a worn cam ring. The head rotor itself is only one part of the high-pressure circuit; mating components must be within spec.

4. Can I replace only the head rotor without replacing the entire pump?
In many Toyota 1Z applications, yes, if the pump housing and cam ring are within wear limits. However, if the cam ring shows pitting or the drive shaft has play, a complete pump replacement is the more reliable path.

5. Does this part require coding or ECU adaptation after installation?
No coding is required for the head rotor itself. The ECU learns rail pressure behavior through closed-loop control, but a basic rail pressure adaptation or leak-off check is recommended after installation.

6. How does fuel quality affect the service life of this pump head?
Water and abrasive particles are the main enemies. Even brief exposure to contaminated fuel can score the plunger surface. Regular filter changes and water separator checks extend service life more effectively than any additive.
