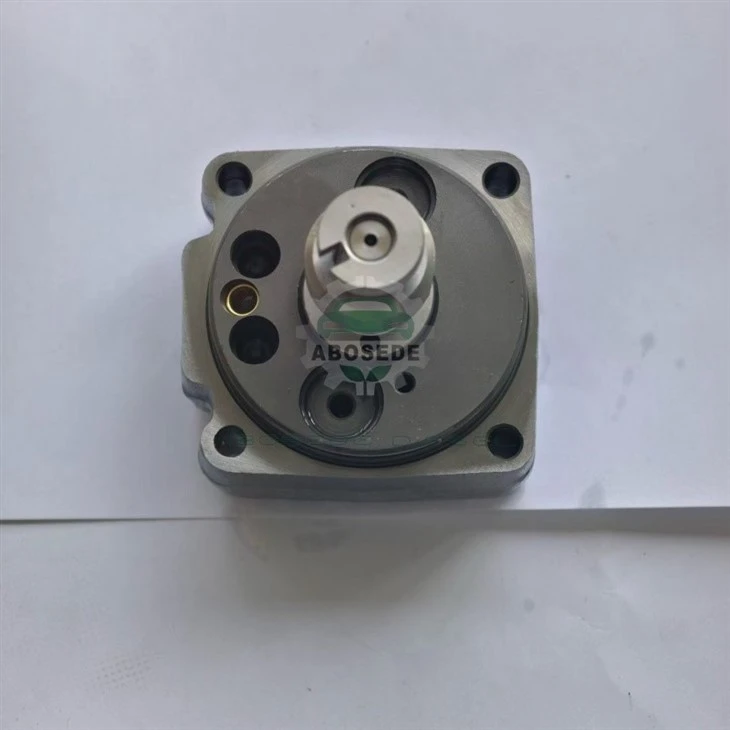

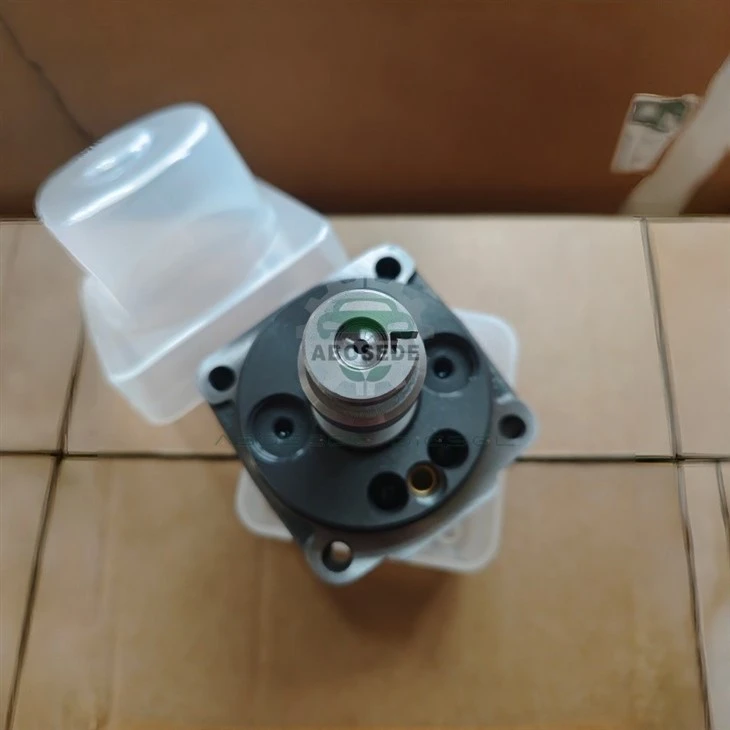

096400-1220 Pump Head For Komatsu 4D95S Diesel Injection Pump – Precision Hydraulic Core For Pressure Stability

A pump head is judged less by how it looks and more by how it holds pressure. The 096400-1220 pump head is the hydraulic core of the injection pump used on Komatsu 4D95S diesel engines. It converts camshaft motion into timed, sealed fuel delivery. In common rail service thinking, the same precision-matching rules apply: clearances, fuel-film behavior, contamination control, and pressure decay matter more than external appearance. Even though the 4D95S belongs to the mechanically timed diesel family, its pump head shares the same critical principle found in common rail high-pressure pump heads-small hydraulic leaks become large running faults.

The 096400-1220 pump head is matched to specific Komatsu 4D95S injection pump variants. The 4D95S is a 3.26 L four-cylinder diesel, but engine displacement alone is not enough to confirm fitment. Buyers should verify the injection pump model, rotation direction, plunger count, delivery port orientation, mounting flange pattern, and original head marking. Komatsu 4D95S engines appear in excavators, loaders, and industrial equipment, and pump configurations can differ by rating and emission version. A photo of the pump nameplate is more useful than a generic engine photo.

The 096400-1220 is a pump head assembly, not a complete injection pump. Critical dimensions include plunger diameter, head rotor bore, delivery valve seat condition, cam-disc contact area, and sealing face flatness. Acceptance is not based on one number. It is based on delivery uniformity across outlets, internal leakage, seat tightness, and pressure-holding behavior. Do not compare this head directly with common rail pressures of 1,500–2,500 bar. It belongs to a timed injection pump. The common rail lesson is the method: test pressure decay, delivery balance, and leakage before judging the part.

A worn 096400-1220 pump head rarely fails suddenly. It first loses hydraulic efficiency. Typical signs include hard starting, uneven idle, white or black smoke, low power, fuel dilution in oil, and poor hot restart. In common rail diagnostics, a similar wear pattern appears as unstable rail pressure or long cranking. For the 4D95S, the most useful checks are delivery volume per outlet, internal leakage, and fuel return behavior. If one outlet is weak, the fault may be inside the head rather than the nozzle. If all outlets are weak, check fuel supply, filter restriction, and transfer pressure first.

The 096400-1220 pump head must be installed in a clean, controlled area. Any grit on the sealing face or plunger surface can create a leak path that no torque value can fix. Use clean diesel for assembly lubrication. Replace seals and gaskets. Follow the OEM torque sequence. Confirm rotation direction before cranking. Prime the pump and bleed air. After installation, the pump should be calibrated on a test bench. Field replacement without calibration is a gamble, because delivery balance and timing depend on the complete pump assembly.

Is 096400-1220 a complete injection pump?
No. It is a pump head assembly. The governor, housing, camshaft, and other pump parts are not included unless stated.

Will it fit every Komatsu 4D95S engine?
No. Fitment depends on the injection pump variant. Confirm pump model, rotation, plunger count, and port layout.

What symptoms suggest a worn 096400-1220 pump head?
Hard starting, rough idle, smoke, low power, uneven delivery, fuel dilution, and poor hot restart are common indicators.

Can I install it without a calibration bench?
It is not recommended. Delivery balance and timing should be verified on a proper diesel injection pump test bench.

What common rail principle helps with this mechanical pump head?
Clean fuel and tight hydraulic clearances. Contamination and pressure decay cause the same kind of delivery loss in both systems.

What information should I send before ordering?
Send the pump nameplate, engine serial number, clear photos of the old head, rotation direction, and plunger count.
