096400-0432 VE Pump Head For Toyota 1Z — Poka-Yoke Your Rebuild Bay To Cut Comebacks

A hydraulic head rarely fails on its own schedule. It fails on the installer's schedule: a rotor check skipped under time pressure, a seal reused because it "looked fine," a torque value guessed by hand. The 096400-0432 VE Pump Head for Toyota 1Z is a precision assembly, but its service life is often decided by the bay it is installed in, not the bench it was tested on. This article treats installation as a human-factors problem and proposes a poka-yoke approach - design the workstation so the wrong action becomes difficult and the right action becomes automatic. The same logic drives error-proofing in common-rail injector service, where a single wrong step ruins a coded component.

Five errors account for most VE head comebacks. One: ordering by engine code without reading the pump nameplate or rotor code. Two: reusing hardened seals because they look intact. Three: skipping the transfer-line flush, pushing debris into the new metering gap. Four: torquing the head or delivery fittings by feel instead of a calibrated wrench. Five: installing without a cold/hot bench baseline, so a later complaint has nothing to compare against. Each error is predictable, which means each can be designed out of the bay.

Error-proofing does not require new machinery. It requires layout. Keep a dedicated rotor-code gauge on the bench so the old and new rotor are compared before the box is opened. Store seal sets as complete kits, never loose, so partial reuse is inconvenient. Place the torque wrench and the manufacturer's torque card at the same station, with no second wrench nearby. Keep VE test fluid and common-rail flushing fluid on separate shelves with different colored containers. Use a single job card that requires a signature at each checkpoint: nameplate verified, rotor matched, seals replaced, lines flushed, bench results recorded. When the card is incomplete, the part does not go on the engine. This is the same checkpoint discipline common-rail shops use for injector coding and high-pressure union torque.

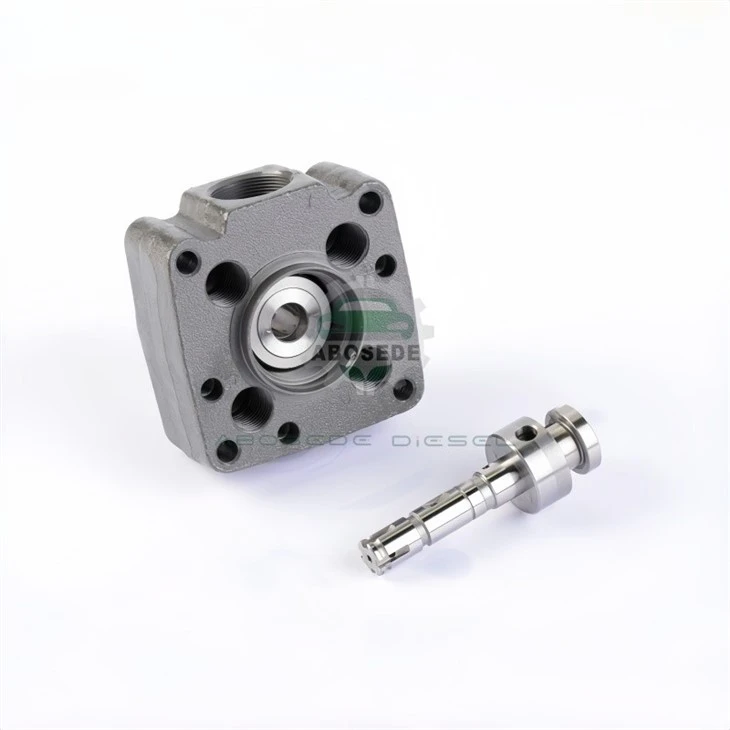

Part number: 096400-0432. Pump family: VE distributor-type hydraulic head. Engine coverage: Toyota 1Z where this number is specified. Cylinders: four. Fuel: diesel. Assembly: matched head body with rotor and plunger set. Material focus: hardened alloy steel, precision-ground bore. QC points: dimensional check, hardness, surface finish, internal leakage, flow-bench delivery balance. Fitment keys: pump nameplate, rotor code, port orientation, engine code. This card is the reference that the job card checkpoints point back to; it is not a substitute for reading the actual pump in front of you.

Common-rail service treats every injector as a serialized part with correction data attached. The Toyota 1Z is a rotary VE application, not a common-rail engine, but the traceability habit transfers cleanly. Record the pump nameplate, rotor code, seal batch, bench leakage, and delivery balance against the vehicle or machine serial. If the same Toyota 1Z VE Pump Head returns with a different symptom, the record tells the next technician whether the head, the injectors, or the fuel supply changed. This is not paperwork for its own sake - it is the difference between diagnosis and guessing.

Q1 - Is a poka-yoke station realistic for a small diesel shop?
Yes. A rotor gauge, a seal kit policy, one torque wrench, and a signed job card cover most of the risk without new equipment.

Q2 - Can I install 096400-0432 without a flow bench?
It is possible, but then the hot-idle and delivery balance checks become your only baseline. A bench result is cheaper than a comeback.

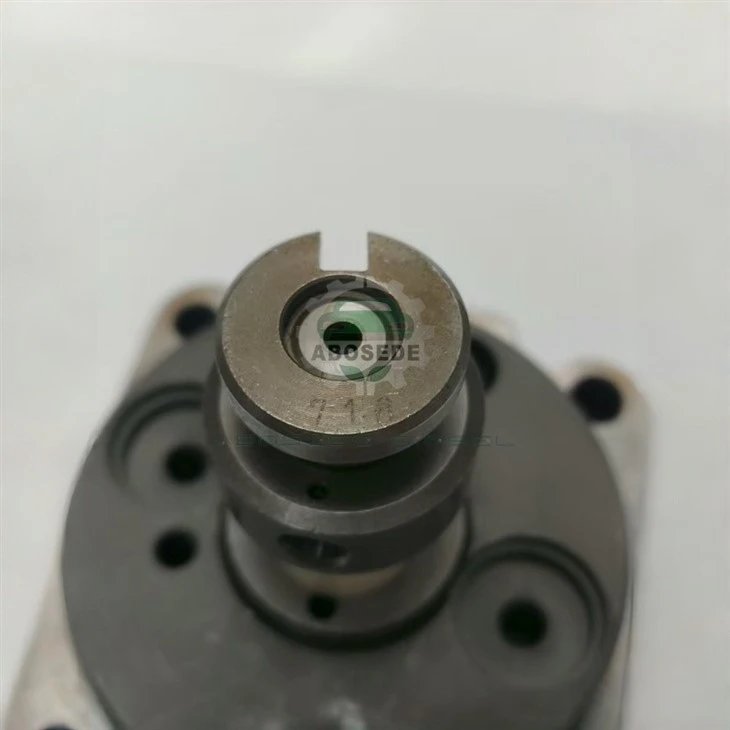

Q3 - How do I verify the rotor code if the stamping is faint?
Clean the surface, use a magnifier, and photograph it before assembly. If it is unreadable, ask the supplier to confirm against the pump plate before dispatch.

Q4 - What is the correct sequence for seal replacement?
Fit the complete kit at assembly, never in stages. Partial replacement leaves old seals to fail after the first heat cycle.

Q5 - Do common-rail and VE pumps share test fluid?
No. Keep them separate. Cross-contamination can mask a VE leakage fault and mislead the next diagnosis.

Q6 - What single record saves the most time on a return?
The cold and hot bench results with the rotor code. They separate a head fault from an injector or fuel-supply fault in minutes.
