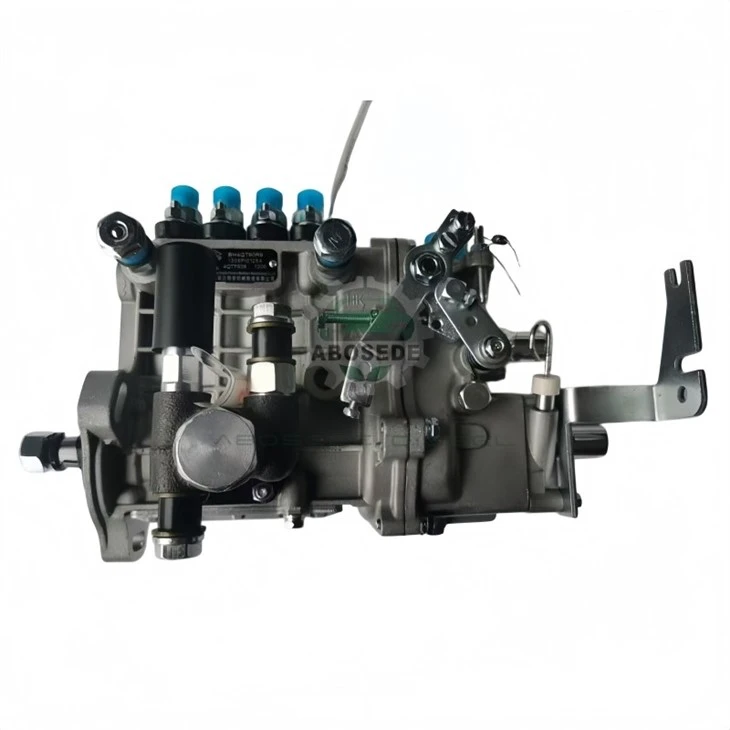

KANGDA 4Q78b BH4Q75R8 Diesel Fuel Injection Pump For Changchai CZ480QA Engines

Engineered by Shandong Kangda Precision Machinery, the 4Q78b injection pump-carrying the BH4Q75R8 model designation-is supplied as a direct-fit replacement for Changchai CZ480QA diesel engines rated at 2800 RPM in direct-injection configuration. Light industrial and agricultural diesel operators rely on this unit where cold-start reliability and consistent fuel metering under fluctuating load are treated as baseline requirements rather than optional benefits.

Shared with the wider 4Q series is the BH4Q75R8 housing architecture, which adopts a Bosch-licensed inline plunger design to hold injection timing steady across all four cylinders. A 46mm flange bore spacing allows the pump to be bolted to the CZ480QA block without adapter plates or shim stacks. Buyers should note that the 4Q78b order number marks this variant apart from the 4Q375, 4Q384, and 4Q290 versions-none of these can be swapped despite the common BH4Q75R8 model label. Calibration has been carried out for the CZ480QA displacement of 1808cc, which produces 30 kW at rated speed. Working pressure peaks within the 250–350 bar band, a range matched to the two-valve direct-injection combustion chamber geometry used throughout Changchai's 480 platform.

Anchoring a defined segment of the Chinese light commercial and agricultural equipment market is the CZ480QA engine family. For Changchai diesel engines, this pump is listed as the primary application. On the vehicle side, fitments include four-wheel low-speed cargo trucks such as the CC2310P1 and DFA2315PDQ, in which the CZ480QA serves as the propulsion unit. Light agricultural transporters and small industrial power units across Southeast Asia and Africa also run the same engine architecture. Applications using the Xichai 490 or FAWDE 4DW81 are not covered by this pump, as those platforms call for different order numbers within the same model family.

Prior to mounting the 4Q78b pump, the drive shaft keyway and coupling condition on the CZ480QA timing gear train should be inspected. The pump flange is expected to seat flush without force; any gap points to drive tang misalignment. Mounting nuts are to be torqued in a cross pattern to specification, after which the fuel inlet from the primary filter and the return line to the tank circuit can be connected. Before first start, static timing must be set at the manufacturer's CZ480QA mark. Once the engine has reached operating temperature, idle quality should be checked for consistency; hunting or surge typically signals governor linkage binding or air ingress. Factory calibration of fuel delivery volume targets the 2800 RPM direct-injection specification, so field adjustment without a calibration bench is discouraged.

Where CZ480QA engines continue in daily commercial service, the BH4Q75R8 pump stands as a critical wear point in the fuel delivery chain. Plunger and barrel clearances deteriorate when contaminated fuel is used, producing hard starting, white smoke at idle, and power loss under load-symptoms frequently misread as injector failure. By replacing the complete pump assembly with a verified 4Q78b unit, injection timing and delivery volume are restored together, removing the uncertainty of partial repair. For diesel repair shops and parts distributors supplying agricultural and light truck operators, stocking the correct order number prevents costly comebacks and returns caused by model-level interchange errors.

Q1: Is it safe to substitute a 4Q384 or 4Q375 pump when a 4Q78b is unavailable, provided the engine starts?
Not advisable. Different delivery volumes and governor settings are denoted by these order numbers even though the BH4Q75R8 base is shared. Performance or emission problems will follow if the wrong variant is fitted to a CZ480QA.

Q2: What fuel filtration standard should distributors recommend to customers running this pump?
Filtration down to 5 microns or finer is the recommendation. Compared with common-rail systems, the plunger clearance inside inline pumps tolerates water and particulate far less, so pre-pump filtration becomes the decisive longevity factor.

Q3: How can a technician confirm pump-to-engine compatibility before installation begins?
The engine nameplate should be checked for the CZ480QA designation and 2800 RPM rating. The pump order number 4Q78b and model BH4Q75R8 on the Kangda nameplate must then be confirmed. Model number alone should never be treated as sufficient.

Q4: In agricultural duty cycles, how many hours can this pump reasonably deliver?
Between 3,000 and 5,000 hours is achievable when clean fuel and correct timing are maintained. Frequent short-run cycles and water contamination emerge as the leading factors that shorten service life.

Q5: Are any special tools needed to install this pump on Changchai engines?
Standard metric hand tools plus a dial indicator for static timing verification will suffice. For the CZ480QA application, no proprietary Kangda tooling is called for.

Q6: Is rebuilding a 4Q78b pump a practical alternative to replacement?
Rebuilding remains possible, yet it rarely makes economic sense at distributor level. Plunger/barrel sets, delivery valves, and governor components must be sourced separately, and final calibration demands a pump test bench-expenses that generally surpass replacement assembly pricing.
