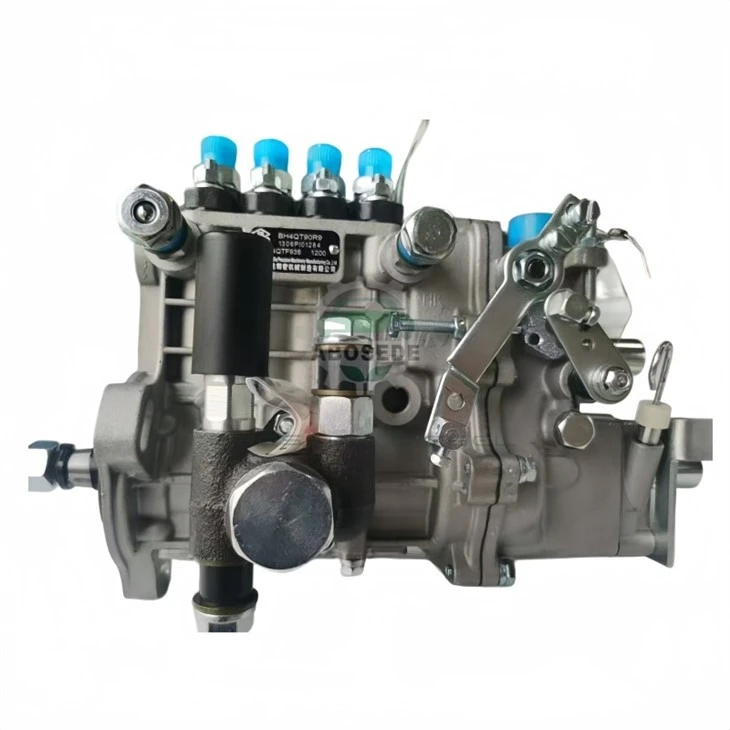

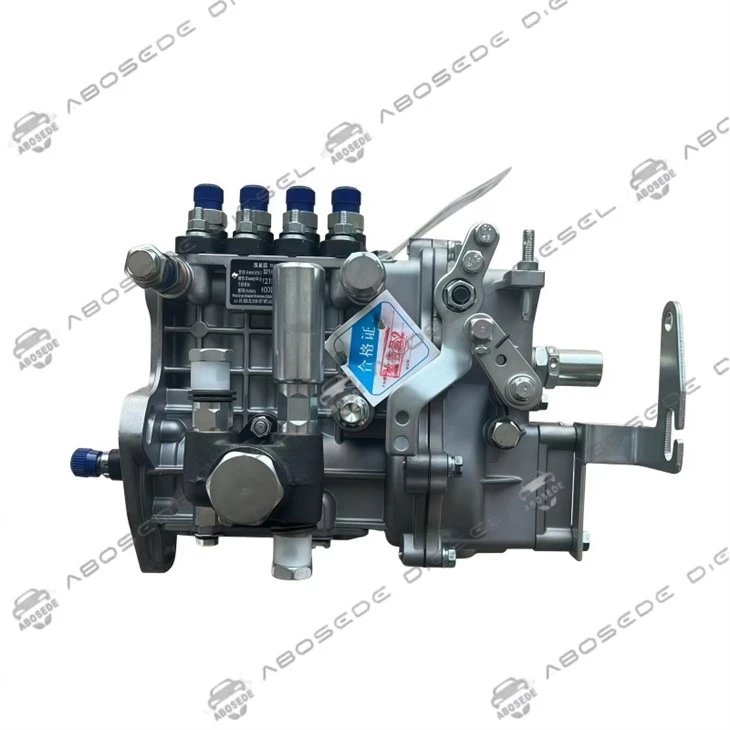

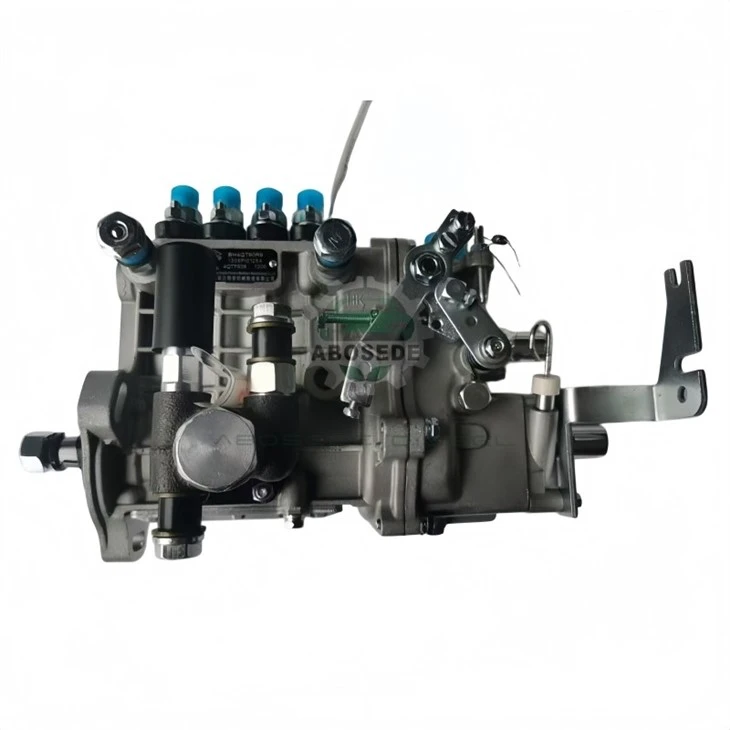

KANGDA 4Q77b/4Q77b-1 BH4Q75R8 Diesel Fuel Injection Pump For Changchai CZ480QA

Sourcing a dependable mechanical inline fuel injection pump for the Changchai CZ480QA platform usually means chasing discontinued OE supply or accepting questionable aftermarket clones. The KANGDA 4Q77b / 4Q77b-1, assembled under reference BH4Q75R8, closes that gap for independent repair garages, fuel injection service benches, and wholesale diesel parts warehouses. This four-cylinder inline pump is calibrated for the CZ480QA engine rated 29 kW at 3000 RPM direct injection - the workhorse powerplant behind compact agricultural transporters, stationary irrigation drives, and light low-speed commercial chassis. Every unit ships with matched plunger-and-barrel sets, a mechanically governed throttle assembly, and flange-mount drive geometry that mirrors the original Changchai installation footprint, letting technicians complete a drop-in swap without fabricating adapters or reworking the timing gear train.

The 4Q77b-1 variant is calibrated to deliver a specific fuel quantity per stroke cycle that aligns with the CZ480QA combustion chamber geometry and its 18:1 compression ratio. Each of the four plunger and barrel assemblies is matched to within tight delivery tolerance, ensuring cylinder-to-cylinder balance that the direct-injection combustion process demands. The governor assembly is mechanically set to maintain 3000 RPM under varying load conditions, a critical threshold for PTO-driven equipment and stationary generator sets where speed droop directly impacts output frequency stability. The pump housing is constructed from die-cast aluminum with a hard-anodized internal bore, while the camshaft rides on tapered roller bearings rated for the axial and radial loads characteristic of four-cylinder inline pump operation.

This pump is exclusively matched to the Changchai CZ480QA powerplant, a 1.8-liter four-cylinder diesel widely deployed in low-speed logistics vehicles, three-wheel agricultural transporters, and small-scale irrigation pump sets across export markets. The CZ480QA produces 29 kW at 3000 RPM, and the BH4Q75R8 pump is configured to support this power band without over-fuelling at low RPM or leaning out under peak demand. Common host platforms include Ouling ZB-series low-speed trucks and comparable light commercial chassis where the CZ480QA serves as the prime mover . For fleet operators running mixed Changchai-powered equipment, the 4Q77b shares mounting flange geometry and drive coupling dimensions with several KANGDA 4Q-family pumps, though delivery calibration remains specific to this engine rating.

Bench-testing before installation is non-negotiable for inline pump replacement. Verify plunger free movement in each barrel, confirm rack travel corresponds to stop and full-load positions, and inspect the delivery valve holders for seating integrity and copper washer condition. On-engine installation requires aligning the pump drive gear with the idler gear at the factory-marked timing position; a one-tooth error will shift static injection timing by approximately 6° crankshaft, causing hard starting, white exhaust smoke, or combustion knock. After bolting the flange, rotate the engine by hand through two complete revolutions to confirm no interference between plunger tappets and cam lobes. The low-pressure feed pump integrated into the housing must deliver adequate supply pressure to the gallery before attempting start-up, as dry running accelerates plunger-to-barrel scoring within seconds.

Q1: A customer's CZ480QA came in with a seized rack. Can I swap just the plunger assemblies and reuse the original housing?
A: Only if the camshaft lobes and tappet rollers pass visual and dimensional inspection. Rack seizure almost always traces to corrosion or fuel varnish inside the plunger bores, which contaminates the housing gallery. Reusing a compromised body risks repeat failure within weeks.

Q2: How does the 4Q77b-1 differ from the base 4Q77b in a genset application?
A: The -1 revision typically carries a revised governor spring or fuel-stop setting. On fixed-speed genset duty, the wrong variant causes frequency hunting at 3000 RPM or black smoke at load pickup. Match the suffix to the nameplate duty before invoicing.

Q3: What fuel quality threshold should I warn wholesale accounts about?
A: Sulfur above 2000 ppm, water content, or particulate loading will shorten plunger-and-barrel life dramatically. Recommend 10-micron filtration and water separators on every CZ480QA installation to protect the BH4Q75R8 internals.

Q4: Can I field-verify injection timing without a dial indicator?
A: Yes - use the spill-tube method on the #1 delivery valve. Rotate the engine while priming, and note the instant fuel stops dripping. That point must align with the flywheel BTDC mark specified for the CZ480QA.

Q5: What's the realistic service window before a rebuild?
A: With clean fuel and filter discipline, expect 2,500–4,000 hours of stable metering from the plunger-barrel sets. High-sulfur or water-contaminated fuel cuts that figure by half or worse.
