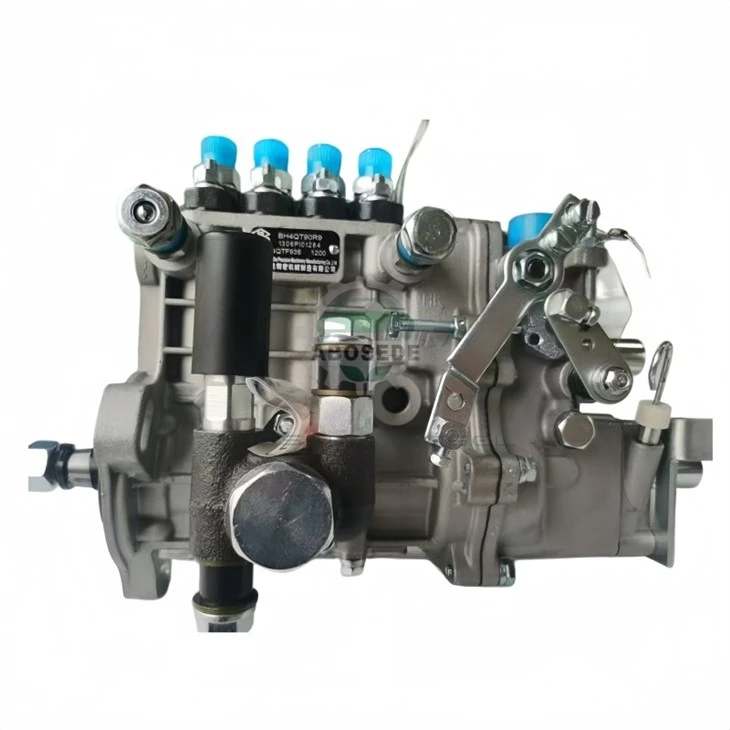

KANGDA 4Q45 BH4Q65R8 Diesel Injection Pump For Laidong L485 Engine

The KANGDA 4Q45 diesel injection pump, identified by pump model BH4Q65R8, is intended for diesel engine fuel delivery applications where accurate part identification and dependable mechanical operation are essential. Listed for the Laidong L485 engine with a specified engine speed of 3000 rpm (turbocharged configuration), this pump is a replacement component for maintenance workshops, agricultural machinery parts distributors, and diesel engine service businesses. Its main purchasing advantage is the combination of a clearly identified order number, pump model, and engine application, helping buyers narrow down the correct assembly before ordering. Because visually similar injection pumps may have different calibration or mounting specifications, buyers should verify the engine nameplate and existing pump markings before confirming compatibility.

The KANGDA BH4Q65R8 injection pump is specified for the Laidong L485 diesel engine in the application details provided for this product. Correct matching is important for machinery operating under variable loads, repeated starts, and extended working shifts, where insufficient or incorrectly timed diesel delivery can contribute to hard starting, uneven combustion, reduced power, and excessive exhaust smoke. The stated 3000 rpm engine speed should be treated as an application reference rather than an independently verified pump calibration limit. Before supplying this assembly for agricultural equipment or other machinery using an L485 engine, distributors should confirm the original pump identification, engine configuration, mounting arrangement, drive connection, and fuel line layout. Do not assume that every L485 variant uses the same pump simply because the engine family designation matches.

Before fitting the replacement, technicians should inspect the pump mounting surface, drive components, diesel supply lines, and return connections for wear, contamination, or leakage. Keep open fuel connections protected from dust and debris, since small particles can damage precision internal components and interfere with injection delivery. Confirm the original installation position and injection timing according to the applicable engine service instructions, then tighten mounting fasteners to the specified torque. After installation, bleed trapped air from the low pressure supply circuit using the approved procedure and inspect all connections for leaks. Start-up checks should include idle quality, throttle response, unusual mechanical noise, and exhaust condition under controlled operating circumstances. If the engine continues to start poorly or produce abnormal smoke, investigate fuel quality, air ingress, injector condition, compression, and timing before attributing the fault to the replacement pump.

For diesel repair shops and replacement-parts wholesalers, identifying the correct diesel injection pump assembly reduces avoidable returns, installation delays, and uncertainty during engine troubleshooting. The 4Q45 order number and BH4Q65R8 model designation provide two useful reference points when matching customer requests, organizing inventory, and checking incoming stock. In a conventional mechanically controlled injection system, the pump meters and delivers diesel to the injectors at the required pressure and timing; its condition therefore influences combustion quality, starting behavior, and engine response. Replacing a defective assembly may address internal wear or delivery faults, but it cannot compensate for blocked filters, contaminated diesel, worn injectors, or unrelated engine problems. For wholesale procurement, confirm the complete application before ordering, request calibration or test documentation when required, and record the supplied part number against the customer's engine details to simplify future service and repeat purchasing.

Q1. Which number should I use when requesting a quotation?

A. Provide both 4Q45 and BH4Q65R8, together with the engine model, to reduce identification errors.

Q2. Does this pump fit every Laidong L485 engine?

A. Not necessarily. Confirm the original pump number, mounting details, and engine configuration before purchase.

Q3. Is 3000 rpm the pump's maximum speed?

A. It is the stated engine speed for this application, not a verified maximum pump speed.

Q4. What should be checked if starting remains difficult?

A. Inspect fuel supply, air ingress, injection timing, injector condition, and engine compression.

Q5. Can distributors order for stock?

A. Yes. Match stock records to both identifiers and confirm availability, quantity, and delivery terms with the supplier.

Q6. How can premature pump wear be reduced?

A. Use clean diesel, replace filters as scheduled, prevent contamination during servicing, and investigate abnormal wear promptly.
