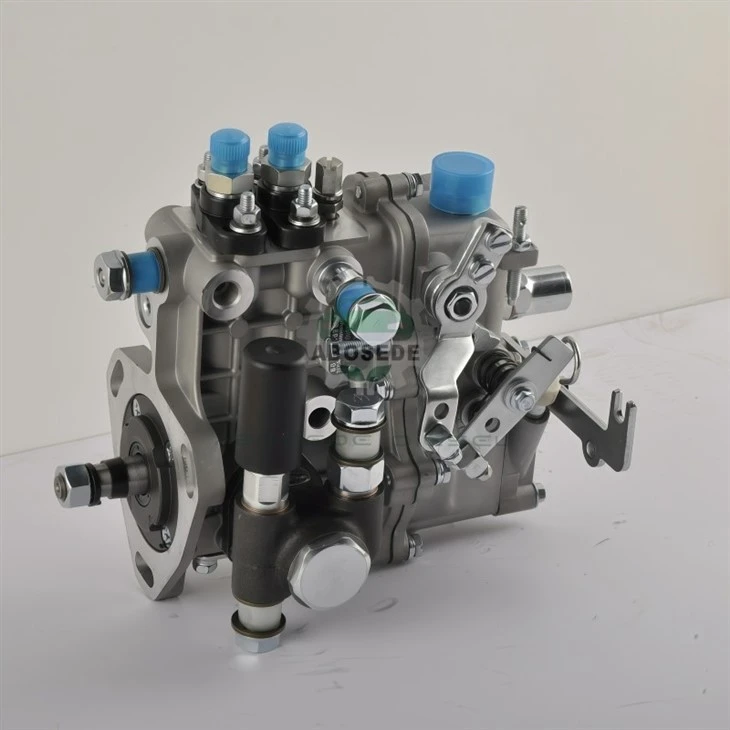

KANGDA 2QT75 / BH2QT95R9 – Direct-Fit Common-Rail Pump For TY2110 Power Units

When a Jiangdong TY2110 arrives at your bay with ragged idle, sluggish throttle climb, or sudden power dropout under pto load, the culprit often traces back to fuel pressure instability. The KANGDA 2QT75 complete pump assembly, matched with the BH2QT95R9 hydraulic head, delivers a factory-spec solution that restores the engine's original combustion curve without aftermarket guesswork. This is not a universal retrofit - it is the dimensional and calibration match for the 28 kW rating at 2200 RPM, ensuring that workshops can complete the swap with zero timing modifications and full confidence in the first-start behavior.

Every calibration decision inside this pump references the TY2110's specific load profile. The BH2QT95R9 plunger barrel set is sized to sustain rail pressure that supports the engine's peak torque window between 1600 and 2000 RPM, while the governor internally limits maximum fuel delivery to prevent overfuelling beyond the 28 kW ceiling. Shops should note the delivery valve residual pressure setting - factory locked at 50 bar - which cushions the injector needle from secondary injection artifacts that cause hot knocking. The fuel temperature sensor integrated into the inlet housing reports real-time density shifts to the ECU, allowing the fuel metering valve to trim supply volume as under-hood heat climbs. For diagnostics, a simple resistance check across the actuator terminals (nominal 3.0–3.4Ω) quickly identifies electrical faults before condemning the entire pump. Timing marks on the drive flange are laser-etched to align with the TY2110 gear case at 22° BTDC, eliminating the need for dial gauge setups during replacement.

This pump assembly directly replaces OEM units across all TY2110 configurations that share the rear-mounted gear train and M22 x 1.5 high-pressure outlets. Common installations include Jiangdong-branded tractors in the 25–35 hp class, single-axle harvesters, and 20 kVA generator sets where load acceptance depends on rapid governor response. Unlike automotive applications, these engines run extended hours at near-constant RPM, which places unique stress on the governor spring and centrifugal weight assembly inside the pump. The KANGDA unit addresses this with a staked governor cage that resists play accumulation over 4000+ operating hours. For parts buyers, confirming the engine's injection order and fuel return line configuration remains essential - the 2QT75 ships with the correct banjo bolt and sealing washers for the standard Jiangdong return manifold, so no additional adapter hunting is required.

Rushed pump swaps frequently end in tow-backs because of trapped vapor in the high-pressure circuit. Begin by isolating the electric stop solenoid and cranking without fuel enable to purge any standing oil from the old pump's drive bore. When sliding the new pump onto the gear shaft, apply light grease to the O-ring seal - dry rubber tears easily during insertion, creating an air bleed path that mimics internal leakage. After torquing the three mounting nuts to 25 Nm in a star pattern, connect the low-pressure feed and operate the hand primer until the return line runs bubble-free. Loosen the injector-side nuts on all high-pressure pipes, crank for 10-second intervals, and retighten only after a steady fuel pulse appears at each union. The final step involves a hot idle check: observe the exhaust color and engine vibration; a smooth 850 RPM idle confirms proper governor engagement, while any surging indicates the throttle position sensor may require recalibration through the ECU interface.

Q1: Can we order just the BH2QT95R9 head if the drive housing is undamaged?
A: Yes, the hydraulic head is separately available, but replacing only the head on a worn housing often leaves gear backlash unresolved. For field repairs, we recommend the complete 2QT75 assembly to guarantee governor synchronization and bearing preload.

Q2: What diagnostic code confirms this pump is the root cause versus wiring?
A: A simultaneous rail pressure deviation (P0088) combined with fuel metering valve stuck (P0253) during cranking points to internal plunger seizure. Isolate by comparing commanded vs. actual rail values at 200 RPM.

Q3: Will this unit operate with biodiesel blends up to B20?
A: The elastomer seals and delivery valve materials are B20-compatible. However, higher glycerin content accelerates plunger scratching - mandate regular filter changes every 200 hours under biofuel use.

Q4: How do we verify correct governor calibration after installation without dealer software?
A: Perform a no-load acceleration test from idle to 2400 RPM. The smoke should remain light gray; heavy black haze signals excessive rack travel, pointing to a misadjusted maximum fuel screw that needs resetting.

Q5: What is the typical shelf life for a new pump in inventory?
A: Store in dry, ventilated conditions. Internal lubrication remains effective for 18 months; beyond that, rotate the drive shaft quarterly to redistribute the protective oil film inside the plunger barrel.
