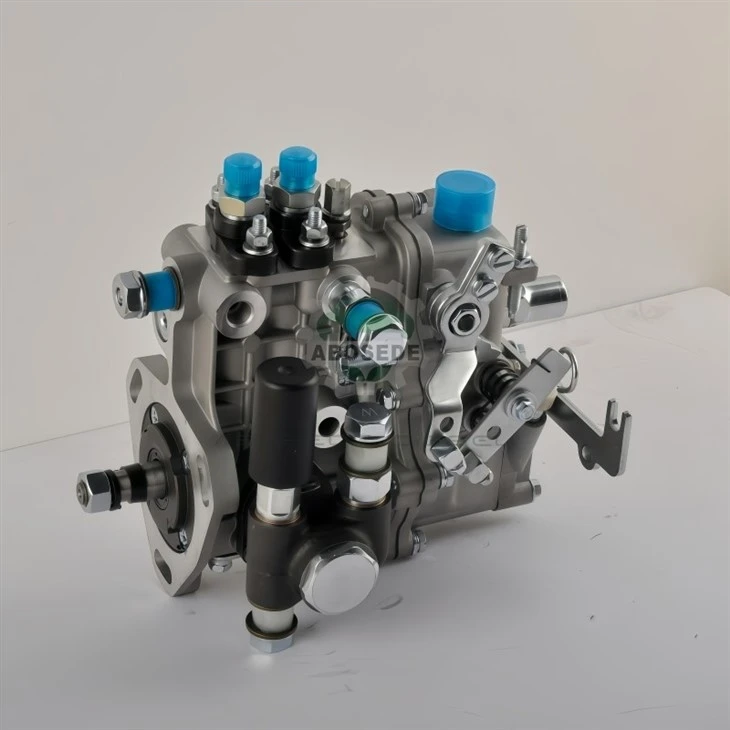

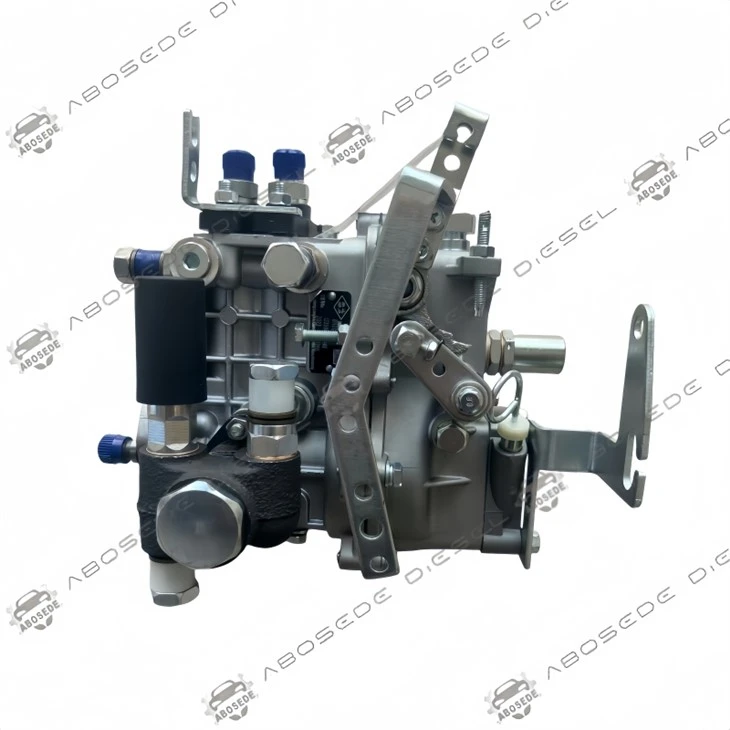

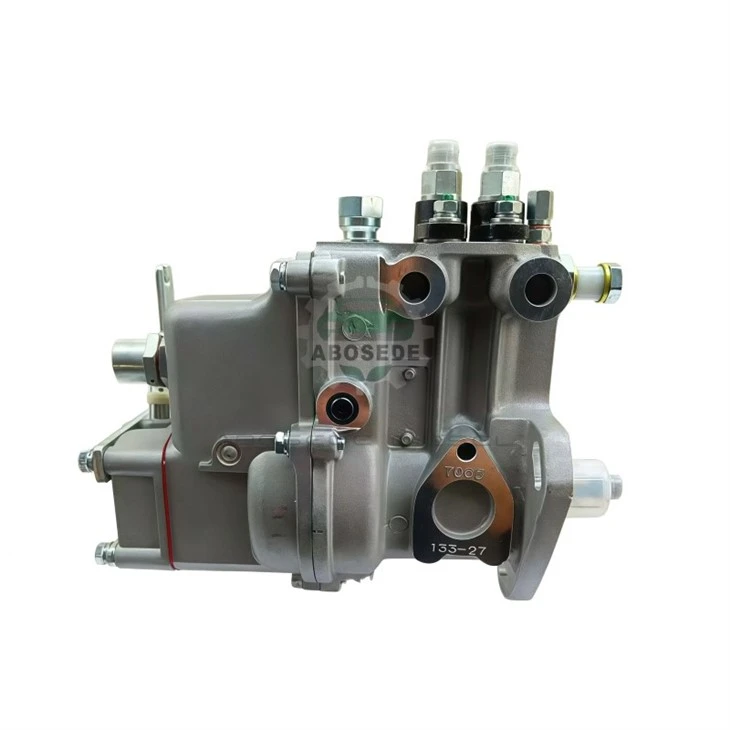

KANGDA 2Q86 – Common Rail Component For 295TA Engine

For diesel workshops servicing agricultural equipment across Africa and Southeast Asia, the KANGDA 2Q86 delivers a direct-fit solution for the 295TA power unit. This component interfaces with the high-pressure fuel system of two-cylinder direct-injection engines, supporting 20 kW rated output at 2200 RPM. Engineered to maintain precise fuel metering under fluctuating loads, it addresses the specific demands of Shandong Tractor (Shantuo) drivetrains commonly found in field operations where fuel quality varies significantly.

The KANGDA 2Q86 is dimensionally and functionally matched to the 295TA diesel platform, a vertical, water-cooled, four-stroke engine with a 95 mm bore and 115 mm stroke, displacing 1.63 liters with a 17:1 compression ratio . Rated power stands at 20 kW at 2200 RPM, with maximum torque typically around 99.8 N·m . The component supports the mechanical governor configuration and the specified fuel supply advance angle of 20° ± 2° before T.D.C. -critical for achieving the precise fuel atomization required for efficient combustion in the direct-injection chamber. For workshops, verifying this timing setting during installation is essential to prevent diesel knock and excessive exhaust temperatures-common failure points when using non-spec parts .

This component is primarily deployed in Shantuo TS250 and TS280 models, which are widely used in Southeast Asian and African agricultural sectors for ploughing and heavy towing. The 295TA engine's two-cylinder configuration produces torsional vibrations that place unique stress on the fuel system; the 2Q86 is designed to maintain stable common rail pressure despite these uneven firing intervals .

For repair shops, proper installation of the KANGDA 2Q86 requires strict adherence to common rail cleanliness standards. The high-pressure circuit is extremely sensitive to particulate contamination-a critical concern in regions where fuel quality is inconsistent . Before fitting, technicians must thoroughly clean the mounting ports on the 295TA block and lubricate all O-ring seals with clean diesel to prevent shearing. Torque specifications for the mounting bolts must be followed precisely. After physical installation, the system must be bled to remove air locks. A recommended preventative step is checking the engine's valve clearance (Intake: 0.25–0.35mm, Exhaust: 0.30–0.40mm) during the replacement, as improper clearance can mimic fuel system faults and lead to misdiagnosis.

In the context of diesel fuel system maintenance, the KANGDA 2Q86 offers significant cost-saving potential. The 295TA engine's common rail system relies on the component to maintain consistent accumulator pressure across varying loads. Replacing this part proactively helps prevent catastrophic pump seizures-a scenario particularly damaging in tractors, as metal debris can circulate through the injectors and rail, requiring a full system overhaul . For workshops, offering the 2Q86 as a preventative replacement during scheduled servicing reduces downtime during critical planting or harvesting seasons. Given the prevalence of fuel with high sulphur content and water contamination in many African and Southeast Asian markets , this component's metallurgy is engineered to withstand reduced lubricity, extending service life beyond generic alternatives.

Q1: Is the KANGDA 2Q86 compatible with the SD2100TA engine variant?
A: Yes, the SD2100TA is a variant of the 295TA platform with identical bore/stroke and power ratings . The 2Q86 is fully interchangeable for these engine codes.

Q2: How does this component handle poor-quality diesel with high water content?
A: The 2Q86 is designed with corrosion-resistant materials to mitigate the effects of water contamination. However, we strongly recommend fitting a primary water separator filter to protect the entire common rail system .

Q3: What are the warning signs of a failing component on a Shantuo tractor?
A: Look for hard starting, noticeable power loss under PTO load (dropping below 20 kW), and increased fuel return flow indicating internal leakage within the high-pressure circuit.

Q4: Do I need special diagnostic tools to install the KANGDA 2Q86?
A: Physical installation is mechanical. However, a timing light and pressure gauge are recommended to verify the fuel supply advance angle (20° ± 2°) and ensure optimal combustion performance .

Q5: What torque setting should be used for the retaining bolts?
A: Always consult the 295TA workshop manual for the specific tightening sequence and torque values. Over-torquing can distort the housing and affect plunger operation.

Q6: Can this part be used in generator set applications?
A: Yes, the 295TA engine is also used in stationary power generation and irrigation pumps . The 2Q86 is suitable for these constant-speed applications.
