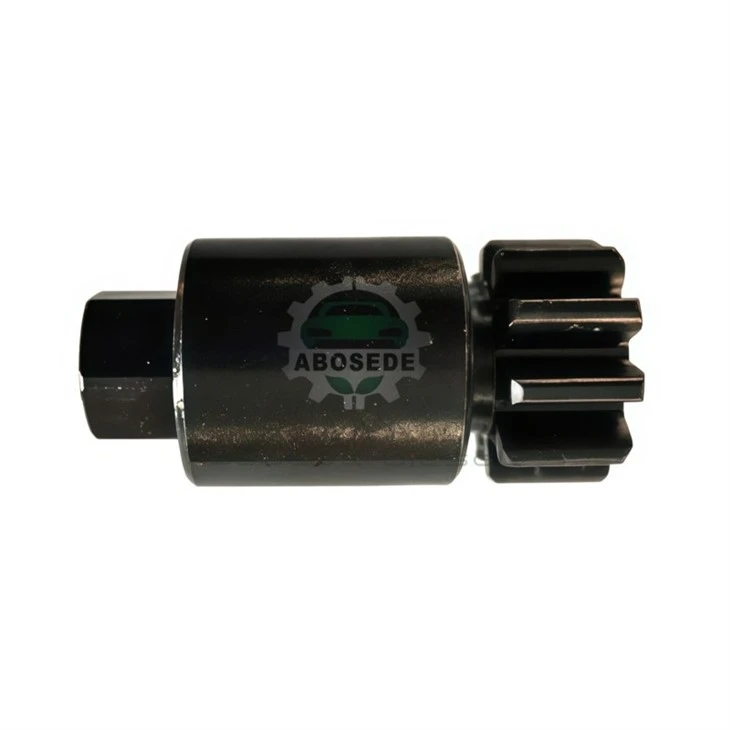

Renault Barring Tools (CR) – Precision Diesel Timing & Common Rail Locking Solution

Mechanical timing precision is non-negotiable for any successful diesel service intervention, and for Renault's Common Rail architecture, the barring tool serves as the definitive safeguard against synchronization failures. The Renault Barring Tools (CR) function as a positive flywheel locking mechanism, establishing a fixed physical reference for the crankshaft during critical procedures such as timing belt replacement, injector servicing, and high-pressure fuel pump overhauls. With modern Common Rail systems operating within millisecond injection windows, any rotational deviation during maintenance compromises the relationship between the crankshaft position sensor and the engine control unit, inevitably triggering diagnostic trouble codes and drivability issues. This tool set directly addresses that vulnerability by enforcing factory-level mechanical tolerances.

Manufactured from hardened alloy steel with a phosphate corrosion-resistant coating, these tools are engineered for the repetitive forces of daily workshop usage. The core component, a precision-ground locking pin, features exacting diameter tolerances for a slip-fit engagement with the flywheel's dedicated locating aperture. The kit incorporates a specialized locating bracket or adaptor plate for specific Renault engine families, stabilizing the pin's axis relative to the bell housing. The pin's effective length and shoulder diameter are tailored to each flywheel design, ensuring that when fully seated, the crankshaft remains immobile. This adherence to original equipment dimensional standards eliminates the mechanical play responsible for post-service correlation errors.

This tooling suite is profiled for Renault's dominant diesel lineages, with primary emphasis on the 1.5 dCi K9K and 2.0 dCi M9R powerplants, alongside secondary compatibility with the 1.9 dCi F9Q and 2.2 dCi G9T units. These engines appear across multiple Renault platforms, including the Megane, Scenic, Espace, and Trafic commercial variants. However, flywheel interface specifics-accessed through the starter aperture or dedicated inspection port-vary between manual and automatic transmissions. Technicians must confirm flywheel tooth count and locking hole location relative to the crankshaft keyway. For the M9R engine, special attention is required for crankshaft pulley indexing, as this variant is prone to timing misinterpretation without correct procedure adherence.

Deploying the barring tool demands a methodical approach to ensure correct engine orientation. The procedure begins with isolating the battery and removing the starter motor or flywheel access plug to expose the ring gear. The crankshaft is rotated clockwise using a socket on the center bolt until the Top Dead Center mark aligns with the timing cover pointer. At this point, the barring pin is carefully inserted into the flywheel hole; smooth, uninterrupted engagement to full depth confirms the engine is locked at the correct position. This step must be performed on the compression stroke for cylinder one. For comprehensive timing integrity, this pin must be used alongside a camshaft locking tool to secure the valvetrain, preventing piston-to-valve contact when the timing belt is tensioned. The tool remains fully seated until all timing components are torqued to manufacturer specifications.

Within a Common Rail fuel system, signal integrity from the crankshaft position sensor is paramount for determining injection timing and rail pressure delivery. Even a minor rotational error produces a voltage signal deviating from the ECU's mapping, resulting in persistent correlation faults. This barring tool eliminates that variable, ensuring the physical flywheel position precisely matches the electronic reference point. This precision directly impacts workshop economics: it reduces diagnostic time spent on phantom faults, extends injector service life by ensuring correct firing moments, and prevents premature DPF clogging from incomplete combustion. The tool therefore functions as both a mechanical asset and diagnostic insurance.

Q1: How do I definitively distinguish between K9K and M9R flywheel locking points to avoid ordering the wrong tool?
A: Check the engine code stamped on the cylinder block adjacent to the timing cover. For K9K, the locking hole sits on the flywheel face at a specific radial distance; for M9R, the pin engages the outer ring gear edge via different bracket geometry. Confirm the access route-starter aperture versus rear inspection plug-to guarantee compatibility.

Q2: What is the lead time for bulk wholesale shipments to reach our U.S. distribution center?
A: Standard bulk orders deliver within 8 to 12 business days from shipment confirmation, with buffer stock maintained to minimize backorder risks. Expedited air freight can reduce this to 4 to 6 business days, though this affects unit cost.

Q3: Can this locking pin be used if the flywheel shows minor surface wear from previous services?
A: Minor wear is acceptable, but burring that impedes smooth insertion will compromise accuracy. The pin is hardened beyond flywheel material and will not deform. Deburr the hole before each use to ensure full seating; otherwise, a false lock will set timing incorrectly.

Q4: Does this tool eliminate the need for the camshaft locking plate during a complete timing belt service?
A: No. The barring tool locks only the crankshaft. The camshaft locking plate remains mandatory to prevent camshaft rotation under valve spring pressure when the belt is removed. Both tools are complementary and essential for a safe procedure.

Q5: How does this tool prevent specific fault codes after Renault diesel servicing?
A: It directly prevents P0016 (Crankshaft Position – Camshaft Position Correlation) by mechanically fixing crankshaft position during belt tensioning, ensuring the sensor signal remains within acceptable range. Without this lock, crankshaft movement creates a permanent offset that the ECU interprets as mechanical failure.
