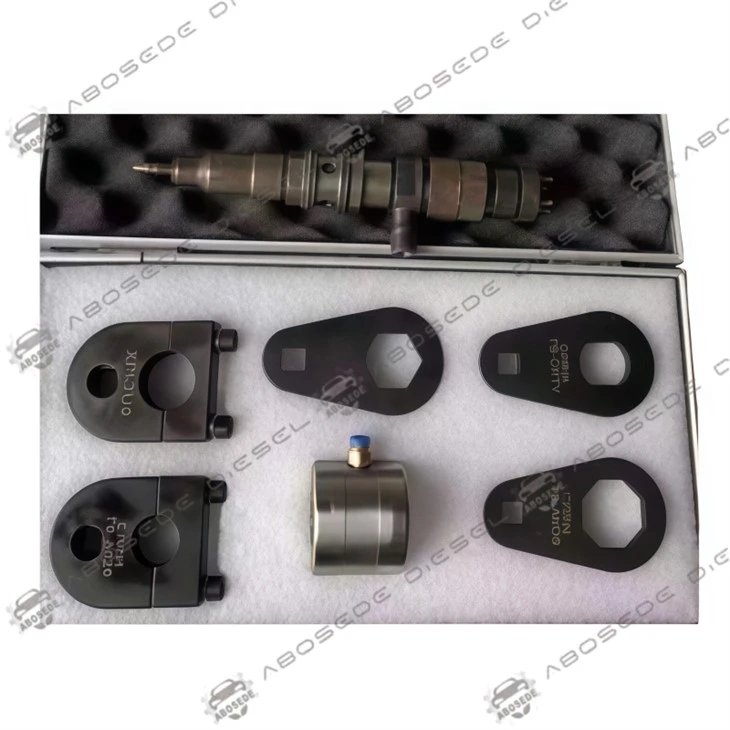

Professional Dismantling Set For Bosch 4-Pin Common Rail Injectors

Designed specifically for the precise disassembly of Bosch 4-pin solenoid-controlled injectors, this professional tool set addresses the critical need for damage-free servicing of common rail fuel systems. Engineered for workshops that demand OEM-level precision, the kit enables technicians to safely dismantle carbon-locked and corrosion-seized injector bodies without compromising the delicate internal valve train or the injector's hydraulic calibration. By facilitating the controlled extraction and teardown of piezo and solenoid injectors, this set shifts the paradigm from component replacement to professional reconditioning, directly reducing operational overhead for diesel repair facilities.

Engineered to interface seamlessly with the industry-standard Bosch M17x1.0 and M27x1.0 thread profiles, this tool set guarantees a secure mechanical lock during high-torque disassembly operations. The core components are machined from high-grade alloy steel to withstand the extreme tensile forces-often exceeding 12 tons-required to extract injectors bonded by carbon creep and combustion residue. The set includes specific adapters for the 4-pin electrical connector interface, ensuring that the delicate solenoid contacts remain shielded during the removal process. Operating parameters are optimized for a working torque range up to 67 Nm, with a designated stroke length that accommodates the deep-set injector wells found in modern DOHC cylinder heads.

This kit delivers universal compatibility across the spectrum of European diesel powertrains, primarily targeting Bosch CRS (Common Rail System) equipped models. It is the definitive solution for service operations on Mercedes-Benz CDI units, including the OM642 V6 and OM651 inline-4 found in the Sprinter, Vito, and passenger car lineups, as well as the PSA DW10 and Ford Duratorq engines that utilize the Bosch EDC16 and EDC17 control units. Beyond passenger cars, the tool's robust construction makes it indispensable for maintaining heavy-duty applications, including Cummins ISB and Detroit Diesel medium-duty engines that rely on similar Bosch injector architectures, providing a single-point solution for mixed fleets.

Successful disassembly begins with the application of penetrating fluid to the injector well, followed by the use of the adjustable bridge and support feet to establish a perfectly perpendicular 90-degree pull axis, preventing side-loading that can distort the injector body or damage the cylinder head bore. For severely seized units, the set incorporates a mechanical spindle and pressure nut system, allowing for the application of sustained, controlled force without the shock loading associated with slide hammers, which can fracture the injector's internal pins. Should the nozzle nut remain lodged within the combustion chamber, the kit includes specialized taps and extensions for a controlled internal extraction, safeguarding the parent bore from galling.

In an era of high-pressure fuel systems, the ability to disassemble and recondition injectors in-house dramatically shifts the repair economics for a diesel workshop. This tool facilitates the replacement of critical wear items such as the control valve, nozzle needle, and high-pressure sealing rings, components that are subject to degradation from ultra-low sulfur diesel and biodiesel blends. By enabling precise internal access, technicians can verify the condition of the servo hydraulic circuit, significantly lowering the rate of repeat failures and costly core charges. This diagnostic capability transforms the injector from a "black box" liability into a serviceable asset, reinforcing a shop's reputation for comprehensive diesel powertrain expertise.

Q1: What is the primary advantage of using this specific 4-pin injector disassembly set over universal pullers?
A1: Universal pullers often pose a high risk of damaging the delicate electrical connector pins and the solenoid valve body. This specialized 4-pin set provides direct, secure engagement with the injector's upper body, allowing for the safe application of extraction force while protecting the solenoid and ensuring the injector remains rebuildable after removal.

Q2: Does this tool set allow for the full internal disassembly of the injector, or just extraction?
A2: The set is designed to support full disassembly. Beyond extraction, it includes specific sockets and adapters for removing the internal nozzle nut, valve retaining screws, and the high-pressure sealing ring, enabling a complete overhaul of the hydraulic components.

Q3: Which specific Mercedes-Benz CDI engine models are directly supported by this tool set?
A3: The toolset is directly compatible with a wide range of Mercedes applications, including the V6 CDI (OM642) and inline-4 CDI (OM651) engines, commonly found in the Sprinter, Viano, M-Class, GL-Class, C-Class, and E-Class models from the early 2000s onward.

Q4: How does the tool mitigate the risk of cylinder head damage when removing heavily carbon-seized injectors?
A4: The kit utilizes adjustable support feet and a bridge to ensure the puller is positioned at a precise 90-degree angle to the injector. This mechanical advantage ensures the pulling force is applied axially, preventing side-loading that could crack the injector body or damage the cylinder head seating.

Q5: Is this kit suitable for the latest generation of high-pressure piezo injectors?
A5: While the primary focus is on solenoid-controlled 4-pin injectors, certain adapters within the set are compatible with specific piezo injector removal procedures. However, it is the definitive solution for the dismantling of standard Bosch solenoid injectors.

Q6: What after-sales support or warranty is offered for the professional-grade components?
A6: Premium kits sourced through established industrial channels typically include a manufacturer's warranty against material and workmanship defects, ensuring reliability for daily workshop use. Always verify the specific warranty terms with your distributor regarding high-wear components like adapters and pins.
