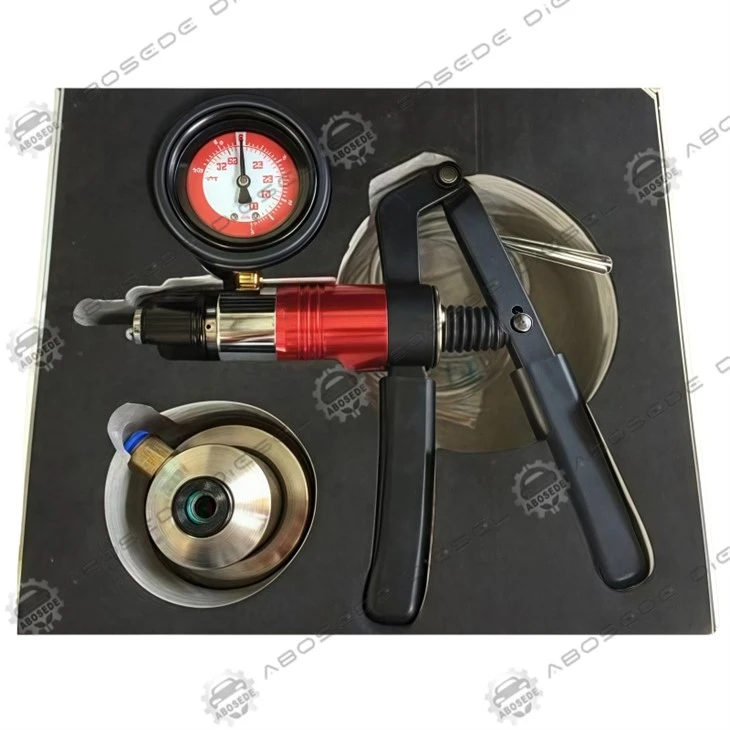

Valve Assembly Leak Test Kit AB-VL01 for Bosch 110/120 & Fukang Series
1.Model No.: LT-302
2.Product: Engine Repair Tool
3.Model No.: LT-302
4.Brand: Abosede Diesel
5.Condition: Brand New
6.Origin: Made in China
7.Delivery: 3–5 days
8.Payment Methods: T/T, Western Union, PayPal
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
This cone-bore seal tester gives technicians a definitive answer on whether a valve assembly can be reused, re-lapped, or scrapped. The AB-VL01 quantifies leakage across the conical seat interface that governs control-chamber pressure integrity in Bosch 110/120 and Fukang series injectors. It ships with three color-coded test heads, a dual-mode pressure/vacuum circuit, and temperature compensation normalized to 20°C-a feature that matters on a bench with fluctuating ambient conditions.
🔧 What the Fixture Actually Measures
The critical value in any valve leak test is how fast pressure decays across the cone seat, not whether air escapes. The AB-VL01 applies regulated positive pressure at 6.0 bar (adjustable to 10 bar) and monitors decay over a 30-second stabilization phase plus a 60-second measurement window. A precision transducer at ±0.05% FS logs pressure every 100 ms, converting the curve into a volumetric leak rate in mL/min. A secondary vacuum decay mode (−0.8 bar) exposes micro-cracks that only open under suction. The outcome is a numeric pass/fail threshold with traceable data before and after lapping.
🛣️ Interchangeable Heads for Real Geometries
Cone angle mismatch is the top source of false readings in universal fixtures. Bosch 110/120 use a 60° included angle with a 6.0 mm land; Fukang units use 58° at 6.5 mm. The AB-VL01 supplies three CNC-machined stainless heads-blue, green, red-lapped to Ra 0.2 µm and bayonet-mounted for tool-free changeover under ten seconds. A floating centering pin aligns the pilot diameter automatically on worn cores.
| Specification | Detail |
|---|---|
| Test principle | Pressure decay / vacuum rise |
| Pressure range | 6.0 bar nominal, to 10 bar |
| Vacuum range | −0.8 bar |
| Transducer accuracy | ±0.05% FS |
| Leak resolution | 0.01 mL/min |
| Pass threshold | 0.5 mL/min (Bosch); 0.8 mL/min (Fukang) |
| Temperature compensation | Automatic, 20°C reference |
| Head material | Hardened stainless, Ra 0.2 µm |
| Changeover | < 10 seconds |
| Display | 3.5-inch color, live decay curve |
| Memory | 200 timestamped logs |
📊 Why This Matters Economically
A leaking valve assembly loses control chamber pressure during dwell, shifting injection timing and fuel quantity beyond ECU correction. Symptoms-hard starting, white smoke, high return flow-get misattributed to nozzle or pump faults, triggering unnecessary replacements. Quantitative valve testing isolates the fault at the cone seat before a rebuild decision. A valve failing at 1.2 mL/min that passes at 0.3 mL/min after lapping is a repaired unit, not a scrapped core-directly improving core recovery and warranty defensibility.
💡 Installation and Workflow Notes
Clean the inlet port and cone surface of carbon and fuel film first-residual diesel skews the decay curve because the transducer reads combined air-liquid compressibility. Dry with filtered air, mount the color-coded head until the bayonet clicks, and let the unit sit five minutes before zeroing so temperature compensation has a stable baseline. Enable internal logging and record the injector part number with each test; stored curves build a reference library. A cold pass does not guarantee a hot pass-re-test after warm-up if the valve goes into a high-hour engine.
❓ FAQ for Repair Shops and Parts Wholesalers
Q1: Can I test an already-lapped valve? A: Yes. Lapping changes surface finish, not the included angle, so post-lap rates compare directly to the pre-lap baseline using the same head.
Q2: How do I spot a counterfeit before mounting? A: Look for tool marks crossing the sealing land instead of following the cone curvature. Genuine seats show uniform lapped reflectivity; unetched bulk-packed bodies are suspect.
Q3: My valve reads 0.7 mL/min but the engine runs fine. Fail it? A: The threshold is a service limit, not a cliff. Document the reading-low-hour engines may tolerate it, but degradation accelerates under sustained rail pressure.
Q4: Most common operator error? A: Testing a wet valve. Residual diesel alters dead volume and produces a meaningless curve. Second: reusing a fuel-swollen O-ring-inspect weekly.
Q5: Can I use other brand heads? A: Any head matching the bayonet mount and cone geometry works. Never force a mismatched angle-the reading becomes meaningless.
Q6: What should a wholesaler request? A: The calibration certificate with traceability, plus confirmation that replacement heads and O-ring kits are separate line items.
